C-13-DFB-RD-SSC2-V-GR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-13-DFB-RD-SSC2-V-GR

C-13-DFB-RD-SSC2-V-GR: DescriptionDFB Laser Module Emitter, 1295nm Min, 1325nm Max, SC/PC Connector, Panel Mount, Through Hole Mount, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Optical fiber; File Size220KB，7 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric View All

C-13-DFB-RD-SSC2-V-GR Overview

DFB Laser Module Emitter, 1295nm Min, 1325nm Max, SC/PC Connector, Panel Mount, Through Hole Mount, ROHS COMPLIANT PACKAGE

C-13-DFB-RD-SSC2-V-GR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Source Photonics
Reach Compliance Code	unknow
body width	12.7 mm
body height	9.37 mm
Body length or diameter	20.3 mm
Built-in features	MONITOR PHOTODIODE
Communication standards	GR-468
Connection Type	SC/PC CONNECTOR
maximum descent time	0.3 ns
Fiber optic equipment types	DFB LASER MODULE EMITTER
Fiber type	9/125, SMF
Installation features	PANEL MOUNT, THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1325 nm
Minimum operating wavelength	1295 nm
Nominal operating wavelength	1310 nm
Rise Time	0.3 ns
Spectral width	0.8 nm
surface mount	NO
Minimum threshold current	15 mA
Transmission type	DIGITAL

Preview

Download Datasheet

View All

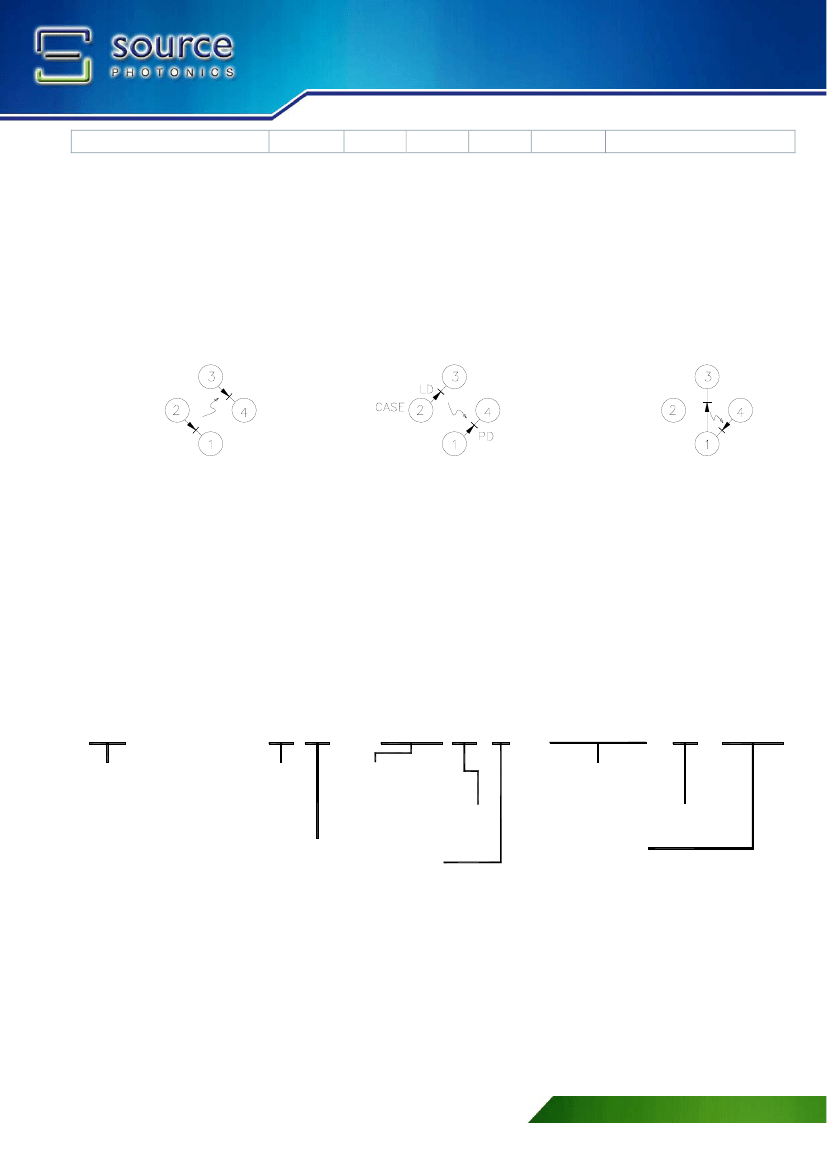

P/N: C-13-DFB-XX-SXXXX/XXX-X-XX

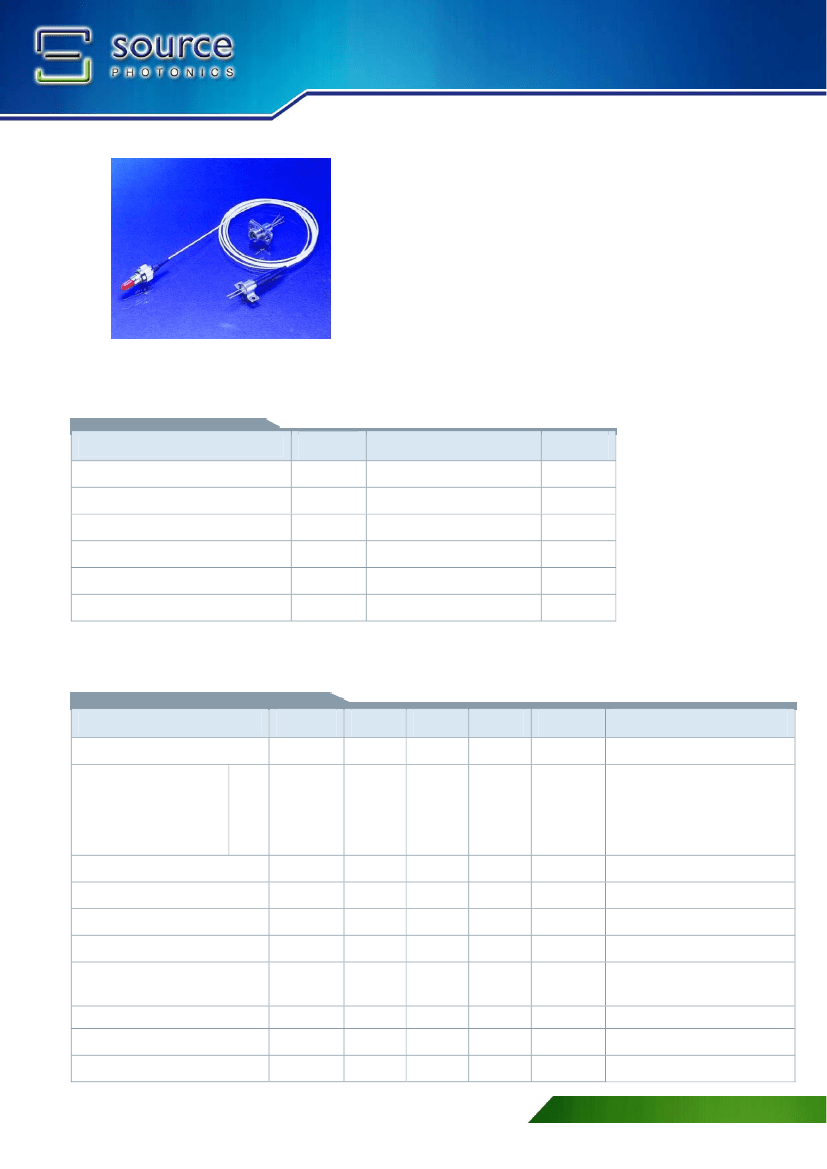

1310nm MQW-DFB Laser Diode Module

Features

Un-cooled laser diode with multi-quantum-well structure

High temperature operation without active cooling

Hermetically sealed active component

Built-in InGaAs monitor photodiode

Complies with Telcordia Technologies GR-468-CORE

Single frequency operation with high SMSR

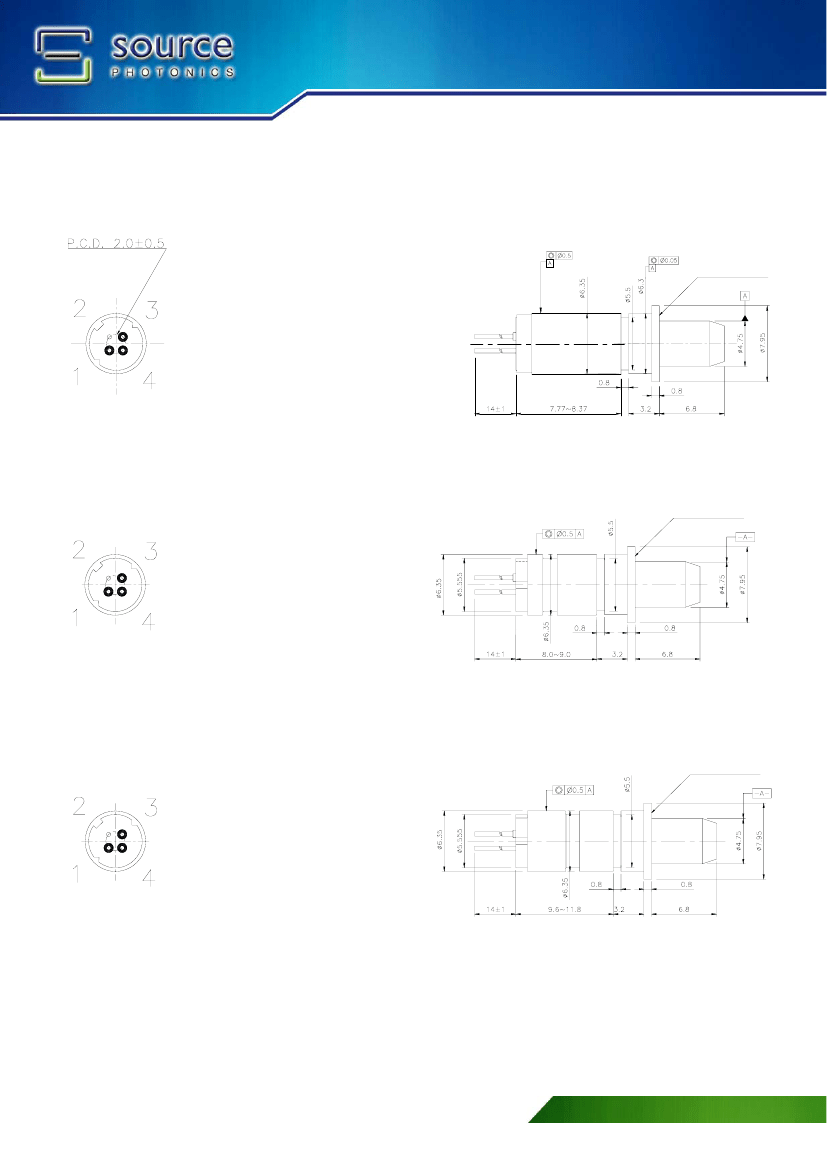

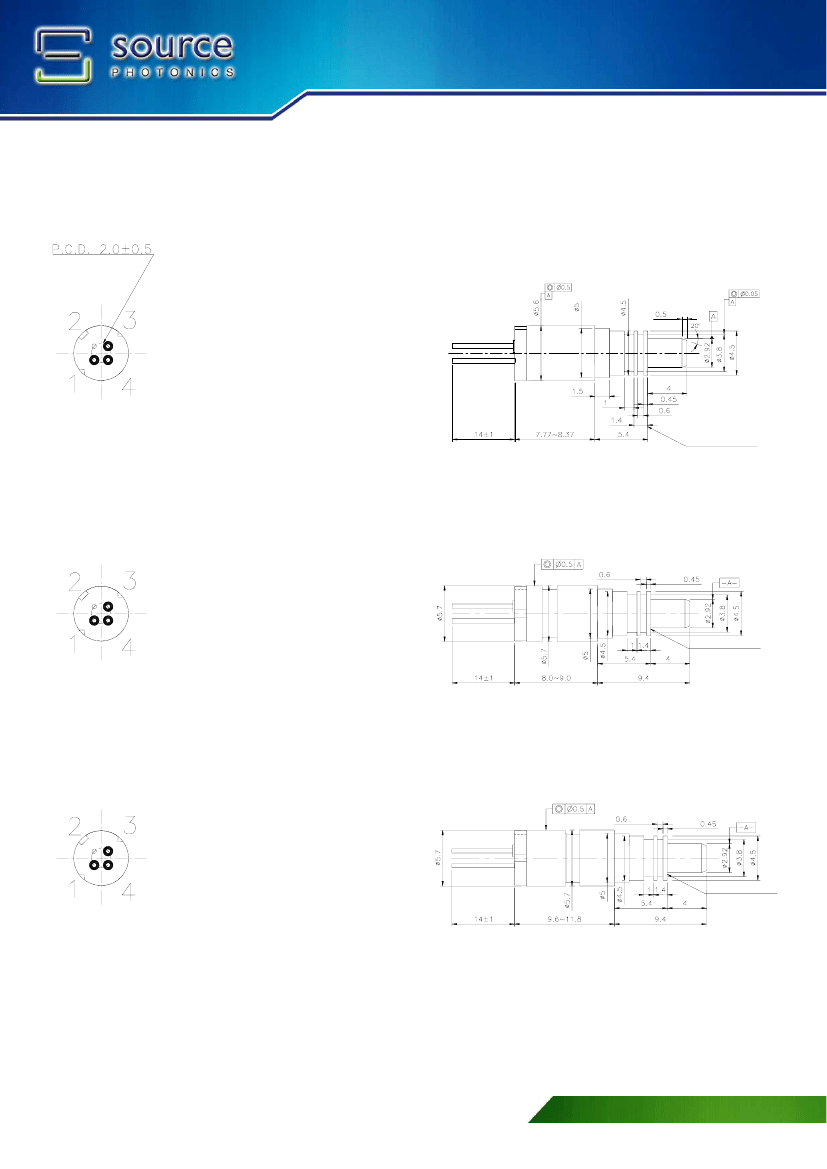

TOSA

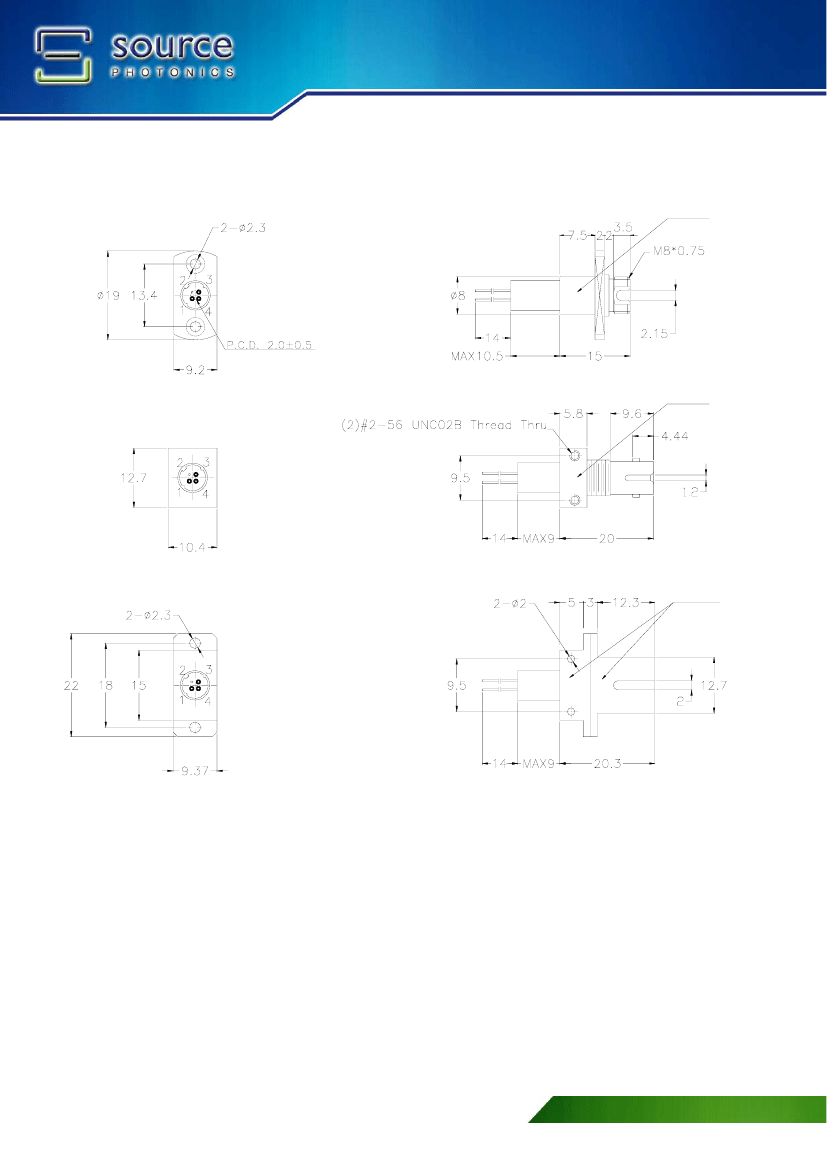

FC/ST/SC receptacle package with 2-hole flange

Fiber pigtailed with FC/ST/SC/MU/LC connector

Design for fiber-optic networks

RoHS Compliant available

Absolute Maximum Catings (Tc=25°C)

Parameter

Fiber Output Power

LD Reverse Voltage

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

L/M/H/2

Symbol

RLD

RPD

FPD

opr

stg

Rating

1(L)/1.5(M)/2.5(H)/3(2)

0 ~ 70

-40 ~ 85

Unit

°C

(All optical data refer to a coupled 9/125

m SM fiber)

Optical and Electrical Characteristics

Parameter

Threshold Current

Optical Output Power

Peak Wavelength

Spectral Width (-20dB)

Side mode Suppression Ratio

Forward Voltage

Rise / Fall Time

Tracking Error

PD Monitor Current

PD Dark Current

Δλ

ΔP

dark

Symbol

Ith

(Tc=25°C)

Min.

0.2

0.5

1295

-1.5

100

Typ.

1.6

2.5

1310

1.2

DS-6085 Rev 0.0 2010-04-09

Max.

0.5

1325

0.8

1.5

0.3

1.5

0.1

Unit

Notes

CW, Ith+20mA, kink free

CW, P

= P

(Min)

CW, P

= P

(Min)

CW, P

= P

(Min), 0 ~ 70°C

μA

CW, P

= P

(Min)

Ibias=Ith, 10~90%

Lead length=1mm

APC, 0 ~ 70

°C

CW, P

= P

(Min), V

RPD

= 2V

RPD

= 5V
