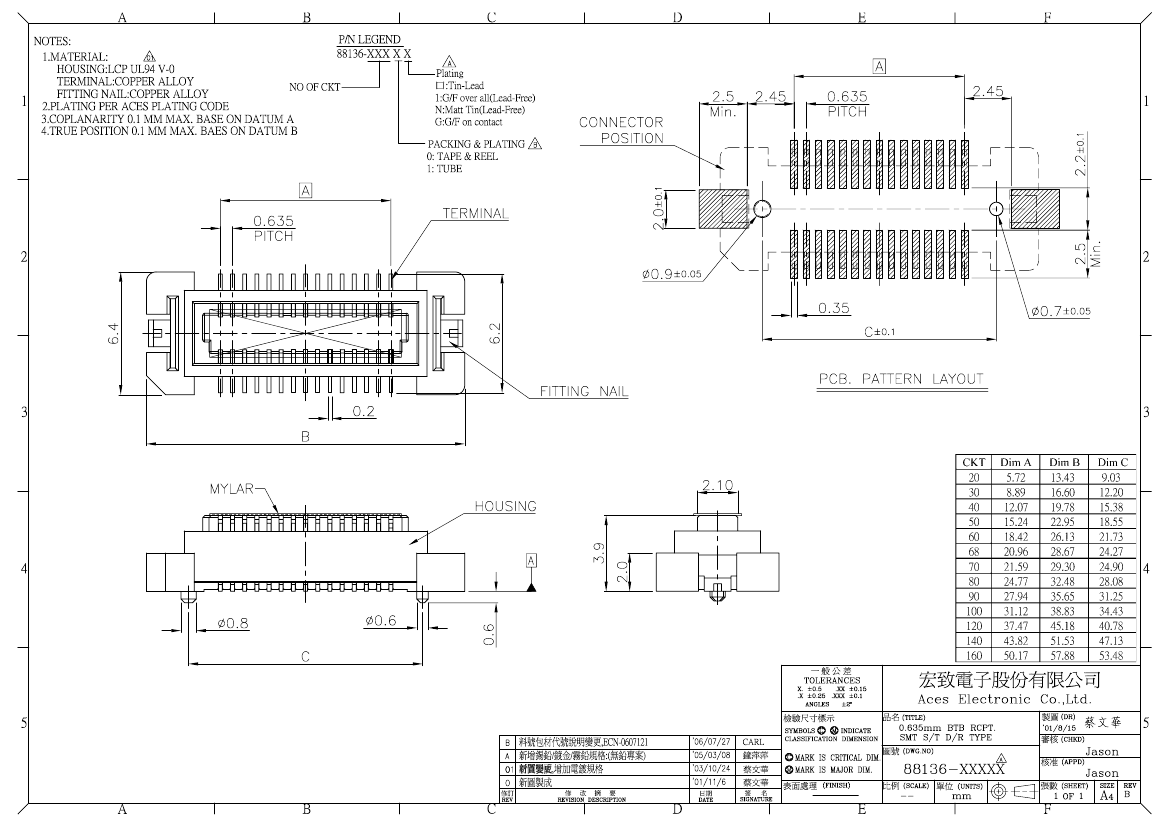

PDF
Preview

88136-1200

Description
Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size259KB，1 Pages
ManufacturerAces Electronics Co., Ltd.
Download Datasheet Parametric Compare View All

88136-1200 Overview

Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle

88136-1200 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsPEG
body width0.252 inch
subject depth0.154 inch
body length1.779 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance40 mΩ
Dielectric withstand voltage250VAC V
Durability50 Cycles
maximum insertion force.6672 N
Insulation resistance1000000000 Ω
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee0
Manufacturer's serial number88136
Plug contact pitch0.025 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.699 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts120
Evacuation force-minimum value.1112 N

Preview

Download Datasheet

88136-1200 Related Products

88136-1200 88136-1200G 88136-12001 88136-1600G 88136-16011 88136-16001 88136-1601N 88136-1601G 88136-1600N 88136-1200N
Description Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Receptacle
Is it Rohs certified? incompatible conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd.
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Board mount options PEG PEG PEG PEG PEG PEG PEG PEG PEG PEG
body width 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch
subject depth 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch 0.154 inch
body length 1.779 inch 1.779 inch 1.779 inch 2.279 inch 2.279 inch 2.279 inch 2.279 inch 2.279 inch 2.279 inch 1.779 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN-PB AU AU AU AU AU SN AU SN SN
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ
Dielectric withstand voltage 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V 250VAC V
Durability 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles 50 Cycles
maximum insertion force .6672 N .6672 N .6672 N .6672 N .6672 N .6672 N .6672 N .6672 N .6672 N .6672 N
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number 88136 88136 88136 88136 88136 88136 88136 88136 88136 88136
Plug contact pitch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch 0.025 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm 4.699 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm 0.635 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 120 120 120 160 160 160 160 160 160 120
Evacuation force-minimum value .1112 N .1112 N .1112 N .1112 N .1112 N .1112 N .1112 N .1112 N .1112 N .1112 N
Contact completed and terminated Tin/Lead (Sn/Pb) - Gold (Au) - Gold (Au) Gold (Au) Matte Tin (Sn) - Matte Tin (Sn) Matte Tin (Sn)
JESD-609 code e0 - e4 - e4 e4 e3 - e3 e3
Plating thickness - FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch - FLASH inch - -
Base Number Matches - 1 1 1 1 1 1 1 1 -
