Attenuators
Flange Mounted - Integrated Design
DC - 18 GHz Performance
Tab, Slot, or Rod Contact for Microstrip use
Interchangeable Transition Contact Pins
Reduces Package Size and Weight
SMA Connector - Attenuators

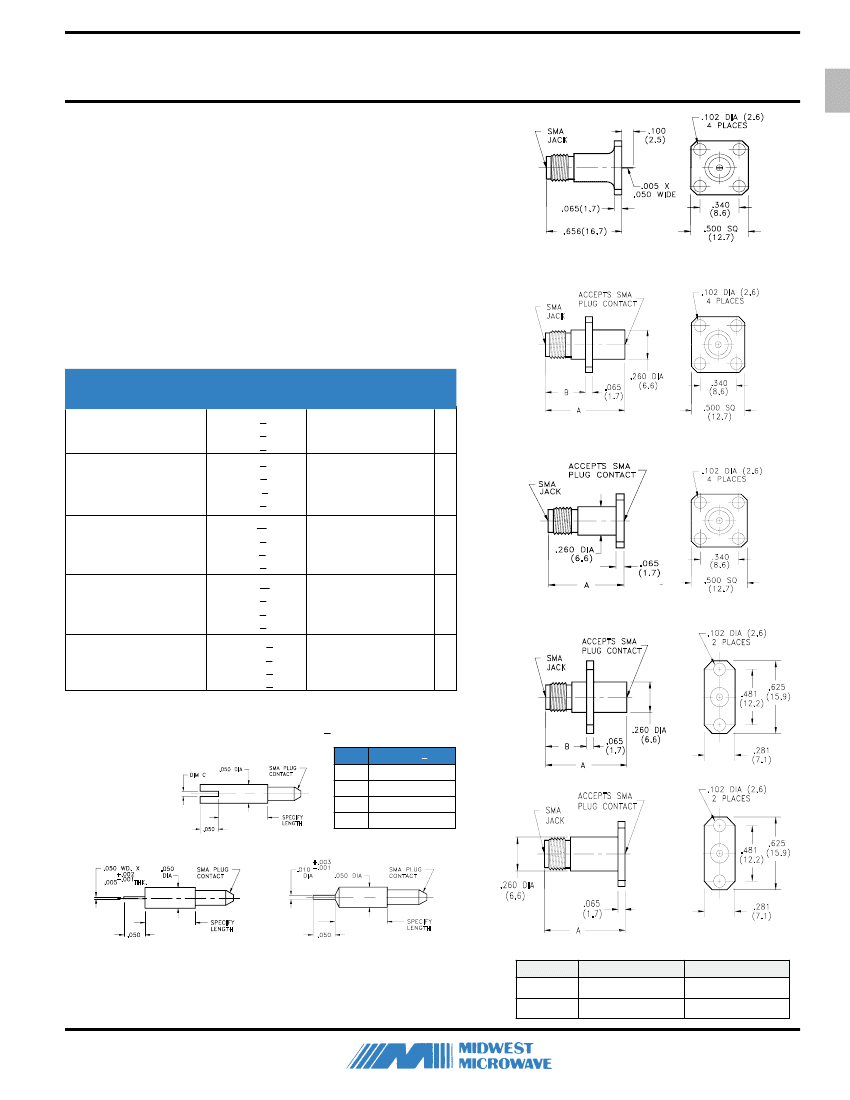

This series of SMA flange mounted Connector-Attenuators are ideally
suited for use on microstrip packages where size and weight are a
consideration. By combining the Attenuator and the launching Connec-
tor, space and weight as well as cost savings is accomplished. The
resistive film circuit is designed to improve reliability and lower mismatch
losses by eliminating the need for separate coaxial components. The
units exhibit low VSWR and are ruggedly constructed of stainless steel
and are temperature stabilized for use in hostile environments.
Model No.
ATT-0300--XX-SMA-02
Figure 1 - non- removeable tab contact
Attenuation
01 - 06
07 - 10
11 - 20
01 - 06
07 - 10
11 - 20
21 - 30
01 - 06
07 - 10
11 - 20
21 - 30
01 - 06
07 - 10
11 - 20
21 - 30
01 - 06
07 - 10
11 - 20
21 - 30
+
+
+
+
+
+
+
0.30
0.50
0.75
0.30 *
0.50
0.75
1.00
VSWR
1.20 @ DC - 4 GHz
1.35 @ 4 - 12.4 GHz
1.50@12.4 -18 GHz
1.15 @ DC - 4 GHz
1.25 @ 4-12.4 GHz
1.50 @12.4 -18 GHz
1.15 @ DC - 4 GHz
1.25 @ 4-12.4 GHz
1.50 @12.4 -18 GHz
Fig.
1
Figure 2
ATT-0310--XX-SMA-02
2
ATT-0311-XX-SMA-02
+ 0.30 *
+ 0.50
+ 0.75
+ 1.00
+
+
+
+
3
ATT-0312-XX-SMA-02
0.30 * 1.15 @ DC - 4 GHz
0.50
1.25 @ 4-12.4 GHz
0.75
1.50 @ 12.4 - 18 GHz
1.00
4
Figure 3
ATT-0314-XX-SMA-02
+ 0.30 * 1.15 @ DC - 4 GHz
+ 0.50 1.25 @ 4-12.4 GHz
+ 0.75
1.50 @12.4 - 18 GHz
+ 1.00
5
Note: When ordering, replace "XX" in Model No. with desired Attenuation Value.
Interchangeable center pin must be ordered separately, see Part No's below.
* From 12.4 to 18 GHz, Attenuation accuracy is + 0.40 dB
Interchangeable Pin Configurations
"CC"
-01
-02
-03
-04
D IM " C "
+ .002
0.012
0.018
0.028
0.036
Figure 4
Part No.
PPM-0020-CC-YYY-01
Part No.
PPM-0030-05-YYY-01
Part No.
PPM-0040-06-YYY-01
Notes:
1. Select desired length of interchangeable center pins in accordance with package
requirements and substitue the three digit decimal length for "YYY" in the Part No.
2. All Attenuator Models are rated at 2 Watts Average and 200 Watts Peak.
3. Finish : Housings are Passivated Stainless Steel, Center Pins are gold plated.
Figure 5
dB
1-12
13-30
D IM A
.615 (15.6)
.765 (19.4)
D IM B
.375 (9.5)
.525 (13.3)
19
