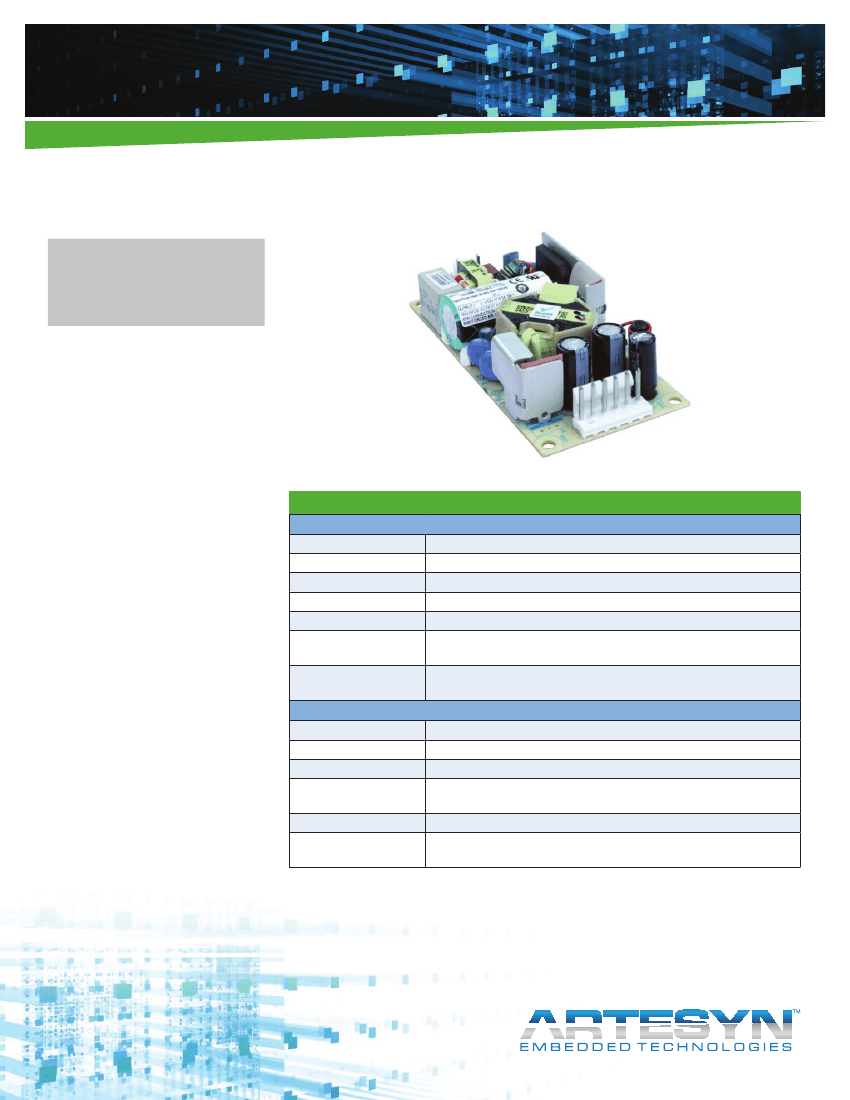

Short circuit protection on all outputs. Case overload protected @
110-160% of normal rating
30-50% above nominal output
Compensated for 0.5 V lead drop max. Will operate without remote
sense connected. Reverse connection protected.
90 - 264 Vac (wide range) 127-300 Vdc
47 - 63 Hz
< 50 A peak @ 230 Vac, cold start @ 25° C
< 74 Watts
87% average (as per Energy Star 2.0 standard) (NPS62-M, 80%)
FCC Class B conducted; CISPR 22 Class B conducted; EN55022
Class B conducted, VDE0878PT3 Class B conducted
275 µA @ 50/60 Hz; 264 Vac input
SAFETY
TUV:
UL:
CSA:
NEMKO:
CB:
CE:
CCC:
60950, 60601-1
60950, 60601-1
60950, 60601-1
60950, 60601-1
Certificate and report
Mark (LVD)
Mark
Overvoltage protection
Remote sense
NPS60-M Series Data Sheet
Environmental Specifications
Operating temperature
Storage temperature
Electromagnetic susceptibility
Humidity
Vibration
MTBF demonstrated
0 ° to 50 °C ambient derate each output at 2.5% per degree from 50 ° to 80 °C. -20 °C start up
-45 °C to +85 °C
Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing 10% to 90% RH
IEC68-2-6 to the levels of IEC721-3-2
> 550,000 hours at full load and 25 °C ambient conditions

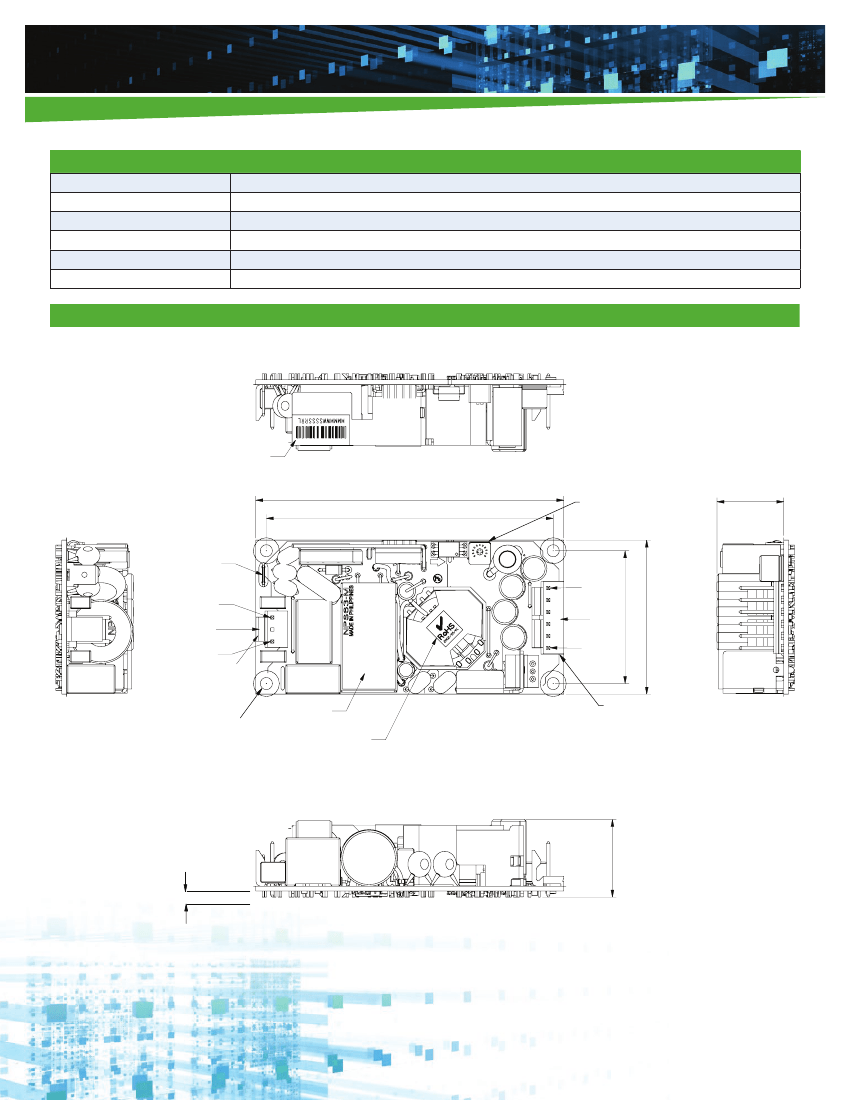

Mechanical Drawing
BARCODE
SERIAL LABEL
4.00"
(101.6) 3.73"
(94.6)
VR1
OUTPUT VOLTAGE
ADJUST POT
0.87"
(22)
NPS62-M 1.14” (29)
M1
PIN 1
SK2
PIN 6
SK1
PIN 3
INPUT
CONNECTOR
(SK1)
0.16” (4.0) MOUNTING HOLE
(4 PLACES)
MODEL LABEL
ROHS LABEL
M2
6 PIN OUTPUT
CONNECTOR
(SK2)
0.197” (5.0) MINIMUM STANDOFF HEIGHT
NPS62-M 1.28” (32.6)
1.01"
(26)
1.72"
(43.8)
PIN 1
2.00"
(50.8)
GND TAB
(CN1)
NPS60-M Series Data Sheet
Ordering Information
Model Number
NPS62-M
NPS63-M
NPS63-M-006
4
NPS64-M
NPS65-M
Output Voltage
5V
12 V
12 V
15 V
24 V
Minimum
Load
0A
0A
0A
0A
0A
Maximum Load with
Convection Cooling
11 A
5A
5A
4A
2.5 A
Peak Load
1
13 A
5.5 A
5.5 A
4.4 A
2.75 A
Regulation
2
± 2%
± 2%
± 2%
± 2%
± 2%
Ripple
P/P (PARD)
3
50 mV
120 mV
120 mV
150 mV
240 mV
1. Peak current lasting <15 seconds with a maximum 10% duty cycle.
2. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
4. Compliant to Level VI efficiency.
5. This product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated as a standalone product. EMC
compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and System Integrators, including through Distribution Channels. It is
not intended for sale to End Users.
Pin Assignments
Connector
SK1-1
SK1-3
CN1
SK2-1
SK2-2
SK2-3
SK2-4
SK2-5
SK2-6
NPS62-M
Line
Neutral
Ground
+5 V
+5 V
Common
Common
-Sense
+Sense
NPS63-M
Line
Neutral
Ground
+12 V
+12 V
Common
Common
-Sense
+Sense
NPS65-M
Line
Neutral
Ground
+24 V
+24 V
Common
Common
-Sense
+Sense
Mating Connectors
AC Input
Molex 09-50-8031 (USA)
09-93-0300 (UK)
PINS: 08-52-0113
Molex 09-50-8061 (USA)
09-93-0600 (UK)
PINS: 08-52-0113
DC Outputs
Artesyn Embedded Technologies Connector Kit #70-841-006 includes
all of the above.
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ±0.02” (±0.5 mm)
3. Mounting holes M1 and M2 should be grounded for EMI purposes.
4. Mounting hole M1 is safety ground connection.
5. Specifications are for convection rating at factory settings at 115 Vac
input, 25 °C unless otherwise stated.
6. For DC input an external DC safety rated fuse must be used
7. Warranty: 2 year
8. Weight: 0.26 lbs/0.118 kg
