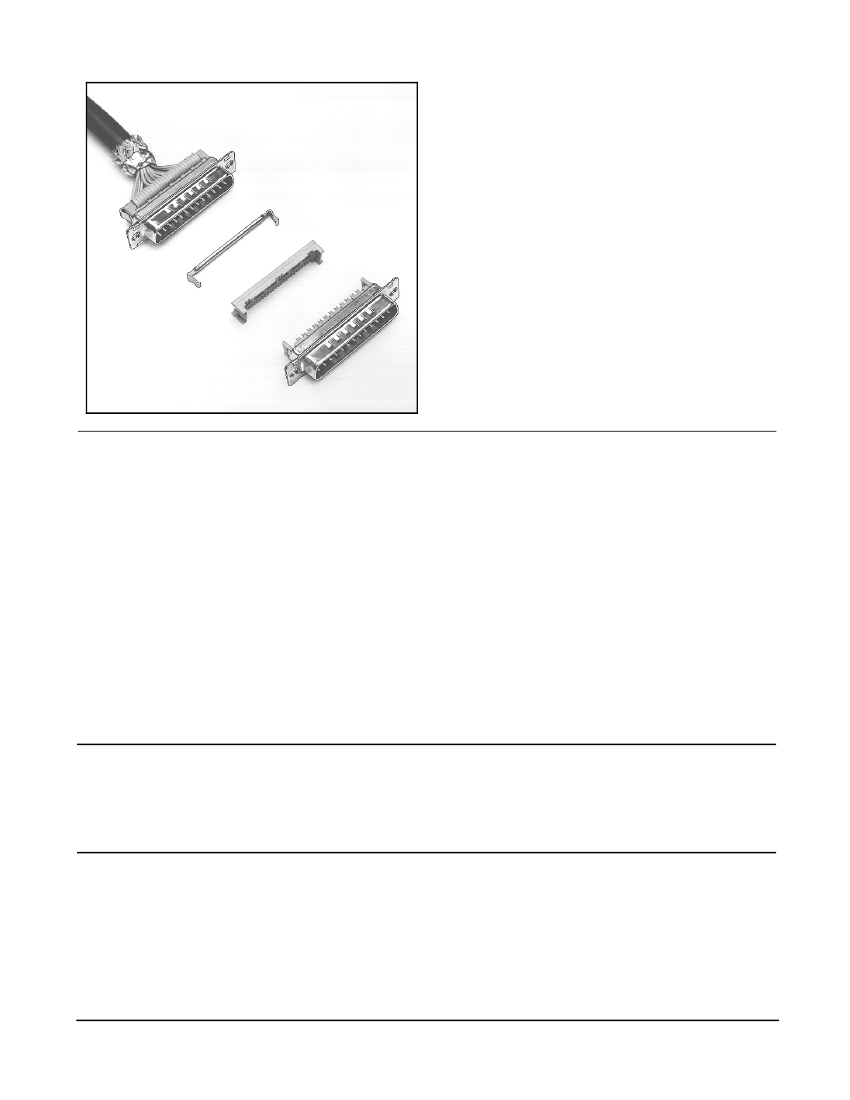

"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

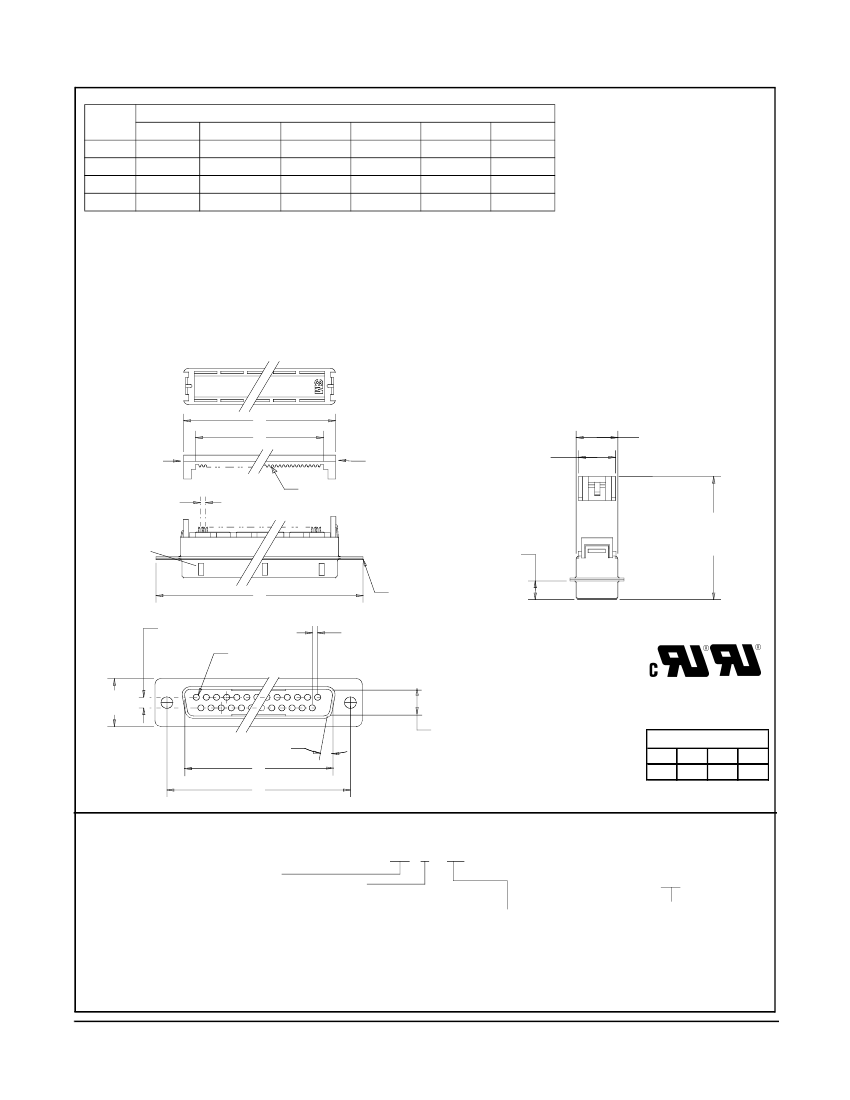

D Sub Plug
Plug Connector
Contact
Quantity
09
15
25
37
Dimensions
A
1.23 [ 31.2 ]
1.56 [ 39.6 ]
2.10 [ 53.3 ]
2.74 [ 69.6 ]
B
.67 [ 17.0]
1.00 [ 25.4 ]
1.54 [ 39.1]
2.18 [ 55.4 ]
C
.98 [ 24.9 ]
1.31 [ 33.3 ]
1.85 [ 47.0 ]
2.50 [ 63.5 ]
D
.46 [ 11.7 ]
.76 [ 19.3 ]
1.27 [ 32.3]
1.87 [ 47.5 ]
E
.67 [ 17.0 ]
.99 [ 25.1 ]
1.54 [ 39.1 ]
2.19 [ 55.6 ]
F ± .008
.70 [ 17.8 ]
1.03 [ 26.2 ]
1.57 [ 39.9 ]
2.22 [ 56.4 ]
8200 Series
E
D
Closed End
Cover
.050 Typ
[ 1.27 ]
Note: Number and
location of dimples
varies by part size.
.24 +.00
[ 6.0 ] -.01
A
.11 Ref
[ 2.8 ]
Position 1
.0545 Typ
[ 1.384 ]
See Page
3 Details
Open End
Cover 1
Adhesive w/Liner
.65
[ 16.5 ]
Assembled
Thickness
.384
[ 9.75 ]
.42 Ref
[ 10.7 ]
.49
[ 12.4 ]
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
In c h
.295
[ 7.5 ]
Note: dimension taken from
inside of dimple on inside of
shell.
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
10° Typ
B
C
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ordering Information
Contact
Quantity
Connector
82XX-X00X
Cover Style:
6= Open Cover
7= Closed Cover
Mounting Style:
0 =
∅
.120 [ 3.05 ]
3 = 4-40 UNC
4 = M3
Strain Relief
(Order Separately)
3448-8DXXA
09 = 9 Position
15 = 15 Position
25 = 25 Position
37 = 37 Position
TS-0234-24
Sheet 2 of 3
Assembly tools: 3M™ Press, 3640 (or equivalent), 3M™ Locator Plate, 3443-106N, 3M™ Platen, 3442-39N for (9 & 15 pos.) or 3442-41N for (25 & 37 pos.)
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Sub Plug
Plug Connector
Mounting
Method*
Contact
Quantity
9
15
Front
25
37
9
15
Rear
25
37
Dimensions
A1
.87
[ 22.1 ]
1.20
[ 30.5 ]
1.74
[ 44.2 ]
2.39
[ 60.7 ]
0.81
[ 20.6 ]
1.13
[ 28.7 ]
1.67
[ 42.4 ]
2.33
[ 59.2 ]
B1
.44
[ 11.2 ]
.60
[ 15.2 ]
.87
[ 22.1 ]
1.20
[ 30.5 ]
.40
[ 10.2 ]
.57
[ 14.5 ]
.84
[ 21.3 ]
1.16
[ 29.5 ]
C1
.98
[ 24.9 ]
1.31
[ 33.3 ]
1.85
[ 47.0 ]
2.50
[ 63.5 ]
.98
[ 25.0 ]
1.31
[ 33.3 ]
1.85
[ 47.0 ]
2.50
[ 63.5 ]
D1
.49
[ 12.5 ]
.66
[ 16.8 ]
.93
[ 23.6 ]
1.25
[ 31.8 ]
.49
[ 12.5 ]
.66
[ 16.8 ]
.93
[ 23.6 ]
1.25
[ 31.8 ]
0.45
[ 11.4 ]
0.22
[ 5.6 ]
.12
[ 3.0 ]
.51
[ 13.0 ]
.26
[ 6.6 ]
.12
[ 3.0 ]
E1
F1
G1
8200 Series
Front Mount-The connector is mounted in front of the panel.
Rear Mount-The connector is mounted behind the panel.
Panel Cutout
A1
R .032 Max. Typ
[ 0.81 ]
.120
[ 3.05 ]
F1
E1
B1
10° 0° Typ
.060
[ 1.52 ]
Full Radius
D1
C1
Alternate
GI Radius
Typ
Mounting Styles
Standard
Strain Relief
(Order Separately)
Material: Stainless Steel
.12
[ 3.0 ]
Dia
Through Hole
F
#4-40 UNC
M3
.07 Max
[ 1.78 ]
Threaded Inserts
+.000
.242 -.010
[ 6.15 ]
.06
[ 1.5 ]
.12
[ 3.0 ]
.16
[ 4.06 ]
TS-0234-24
Sheet 3 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
