ESW156M100AG3AA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ESW156M100AG3AA

ESW156M100AG3AA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 15uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size640KB，64 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric View All

ESW156M100AG3AA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 15uF, THROUGH HOLE MOUNT, RADIAL LEADED

ESW156M100AG3AA Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.015 mA
Manufacturer's serial number	ESW
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	180 mA
surface mount	NO
Delta tangent	0.08
Terminal shape	WIRE

Preview

Download Datasheet

View All

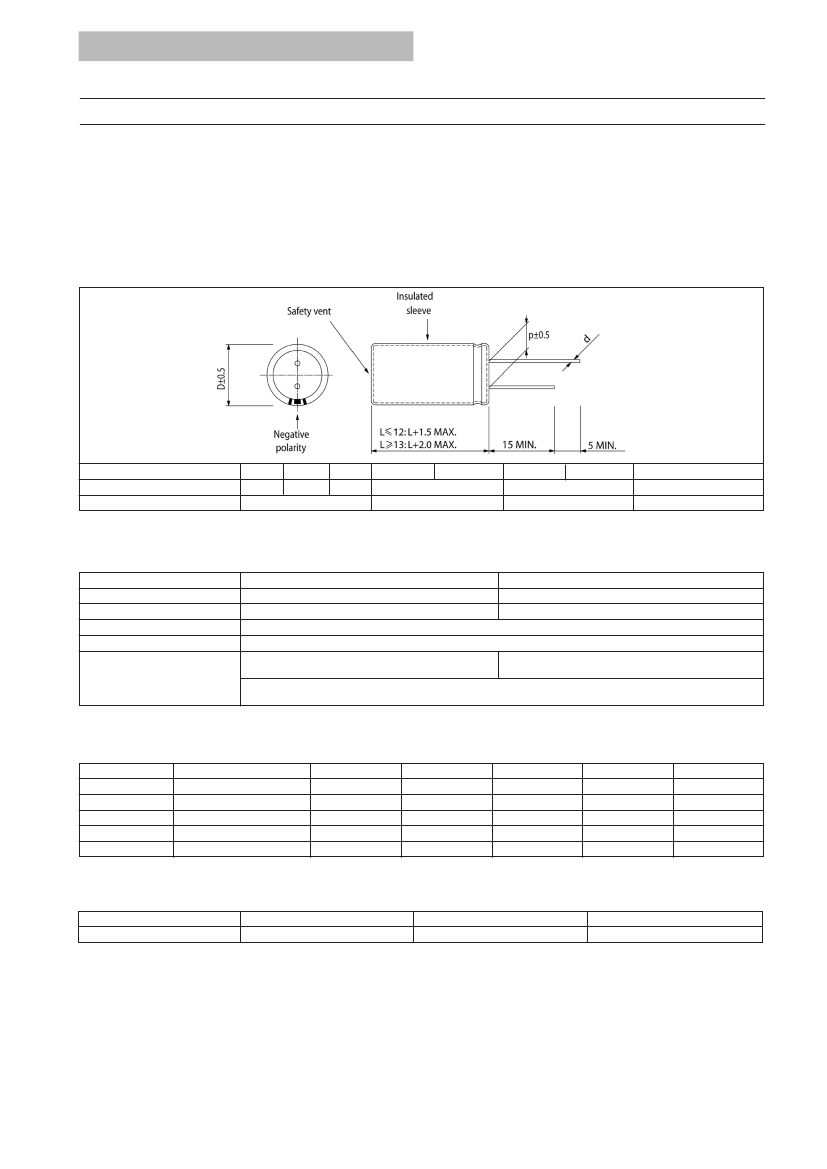

ARCOTRONICS

ES5

Aluminium Electrolytic Capacitors

SINGLE-ENDED LEADS - Super miniature 5mm height 105°C / 1000 h

Description

Capacitors for high density printed circuit board.

Applications

Coupling, decoupling, by-pass, ﬁltering in VTR, camera,

car audio, mini-audio equipments.

Diagram of dimensions

(Units=mm)

Marking

ARCOTRONICS’ logo

Series: (ES5), Operating temperature: (105°C)

Rated capacitance: (F), Rated voltage: (Vdc)

Negative polarity: (white line), Date code

* Case ØD 6.0mm: D = +0.8/-0.5

ØD

p (pitch)

Ød (leads)

4.0

1.5

5.0

2.0

0.45

6.0

2.5

8.0

3.5

0.5

Electrical characteristics

Rated voltage

Operating temperature

Capacitance range

Capacitance tolerance

Endurance test

Leakage current

6.3 to 50 Vdc

-40 to +105°C

0.1F to 330F

± 20% at 120Hz / 20°C

1000 hours (see conditions in Test method and performance)

I = 0.01 CV (A) or 3A whichever is greater

C = rated capacitance (F); V = rated voltage (Vdc)

(after than D.C. rated working voltage at 20°C has been applied for 2 min)

Compensation factor of ripple current (R.C.) vs. frequency

Capacitance range

0.1 to 47F

100 to 330F

50 Hz

0.75

120 Hz

1.00

300 Hz

1.20

1.10

1 kHz

1.30

1.15

10 to 100 kHz

1.50

1.20

Compensation factor of ripple current (R.C.) vs. temperature

Temperature

Multiplier factors

40°C

1.50

65°C

1.40

85°C

1.20

105°C

1.00

Test method and performance

Conditions

Temperature:

Test duration:

Ripple current:

Voltage:

Performance

Capacitance change:

Dissipation factor:

Leakage current:

Load life test

105°C

1000 hours

max ripple current at 120Hz 105°C

speciﬁed in the table.

the sum of D.C. voltage and the peak A.C. voltage

must not exceed the rated voltage of capacitor.

Shelf life test

105°C

500 hours

no ripple current applied.

no voltage applied.

The following speciﬁcations will be satisﬁed when the capacitors are restored at 20°C

within 20% of initial value.

not exceed 200% of the initial requirement.

not exceed initial requirement.

09/2006
