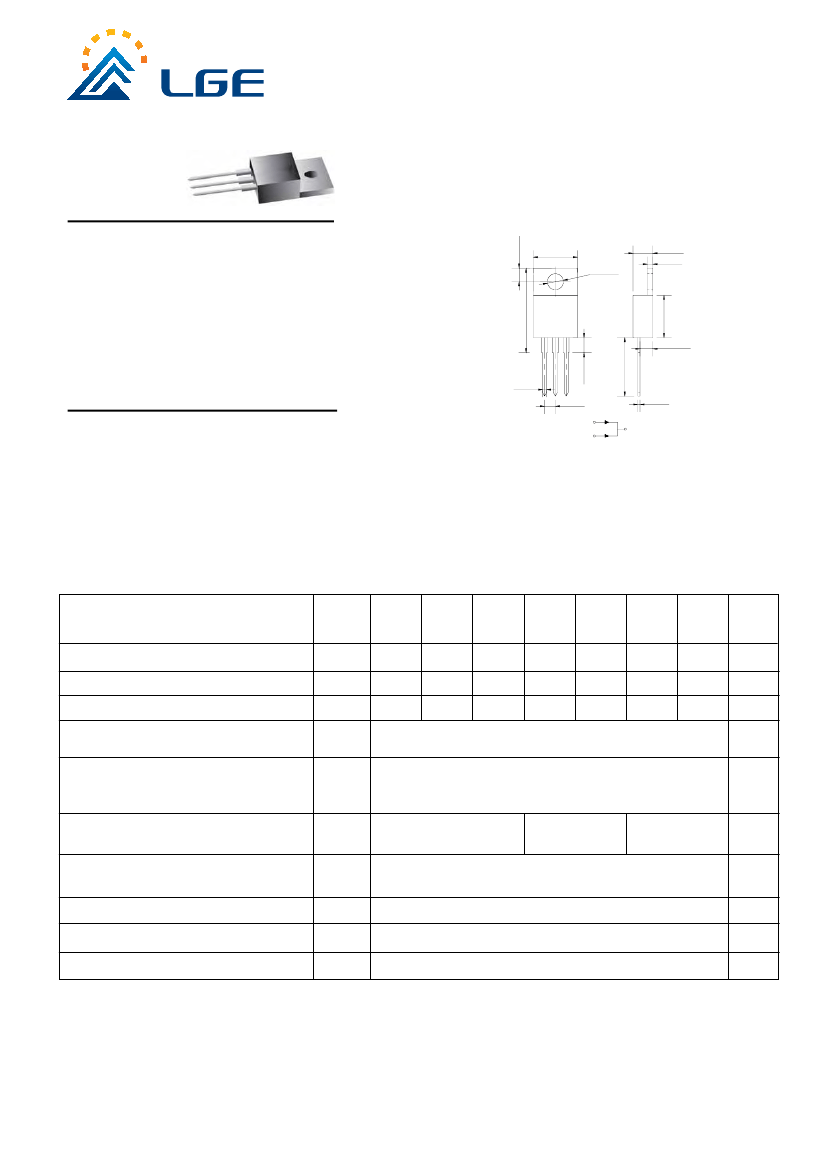

GF1005C-GF1060C
Super Fast Rectifiers
Reverse Voltage: 50 - 600V
Forward Current: 10A
Features
2.8± 0.1
TO-220AB
Low switching losses,high efficiency
Low forward voltage drop
Ultrafast recovery times
Solder Dip 260°C ,10 seconds
The plastic material carries U/L recognition 94V-0
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
10.2± 0.2
? 3.8± 0.15
4.5± 0.2
1.4± 0.2
19.0± 0.5
1
PIN
2 3
8.9± 0.2
2.6± 0.2
3.5± 0.3
13.8± 0.5
0.5± 0.1
PIN 1
PIN 3
CASE
PIN 2
Mechanical Data
Case:
JEDEC TO-220AB, molded plastic over
Terminals:
Matte tin plated leads
Polarity:
As marked
Weight:
0.071 ounce, 2.006 gram
Mounting Position:
Any
0.9± 0.1
2.5± 0.1
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate by 20%.
Parameter
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
@T
C
=95°C (Note 1)
Peak forward surge current
8.3ms single half sine-wave
superimposed on rated load @T
J
=125°C
Maximum instantaneous
forward voltage at 5.0A (Note 2)
Maximum DC reverse current
at rated DC blocking voltage
@T
A
=25°C
@T
A
=125°C
Symbol
V
RRM
V
RMS
V
DC
I
(AV)
GF10
05C
50
35
50
GF10
10C
100
70
100
GF10
20C
200
140
200
GF10
30C
300
210
300
10
GF10
40C
400
280
400
GF10
50C
500
350
500
GF10
60C
600
420
600
UNITS
V
V
V
A
I
FSM
80
A
V
F
I
R
t
rr
T
J
T
STG
0.98
5.0
150
30
1.3
1.7
V
μA
ns
°C
°C
Maximum reverse recovery time (Note 3)
Operating junction temperature range
Storage temperature range
NOTES:
1. Averaged over any 20ms period.
2. Pulse test:300
μ
s pulse width,1% duty cycle.
3. Measured with I
F
= 0.5A, I
R
= 1A, I
rr
= 0.25A.
-55---+150
-55---+150
http://www.luguang.cn
mail:lge@luguang.cn
GF1005C-GF1060C
Super Fast Rectifiers
Ratings AND Charactieristic Curves
FIG.1 TYPICAL FORWARD CHARACTERISTICS
Instantaneous Forward Current, (A)
100
FIG.2 FORWARD DERATING CURVE
10
Average Forward Rectified
Current, (A)
8.0
6.0
10
5.0
4.0
2.0
1.0
0.6
0.8
1.0
1.2
1.4
GF1005C-GF1020C
GF1030C-GF1040C
GF1050C-GF1060C
0
0
25
50
75
100
125
150
1.6
1.8
2.0 2.2
Instantaneous Forward Voltage, ( V )
Case Temperature, (°C )
FIG.3 TYPICAL REVERSE CHARACTERISTICS
Instantaneous Reverse Leakage
Current, (μA)
μ
10000
FIG.4 PEAK FORWARD SURGE CURRENT
80
Peak Forward Surge Current,
(A)
140
70
60
50
40
30
20
10
0
1000
100
T
J
=125°C
10
1.0
T
J
=25°C
0.1
0
20
40
60
80
100
120
1
10
100
Percent Of Rated Peak Reverse Voltage, %
Number Of Cycles At 60Hz
http://www.luguang.cn
mail:lge@luguang.cn
