SLV4270-xx/RH2 Series
HUW0724154-01A
February 14, 2008
Technical Specification
of
1.3µm MQW-DFB Laser Diode Module
for CATV Return-Path Application
SLV4270-xx/RH2 Series
RoHS Compliant
Page 1 of 7
Sumitomo Electric Industries, Ltd.
Part No.:
Document No.:
Date of issue:
SLV4270-xx/RH2 Series
HUW0724154-01A
February 14, 2008
1. General
SLV4270-xx/RH2 Series are 1.3µm InGaAsP/InP MQW-DFB laser diode modules designed for fiber
optic CATV return path applications. These modules are ideally suitable for high capacity transmission
including several video channels.
A laser diode is mounted into a coaxial package integrated with a single mode fiber pigtail, a double
stage isolator (lead content is less than 1000ppm) and an InGaAs monitor PD.
2. Package dimension and pin assignment
(See attached appendix.)
3. Absolute maximum ratings (Tc=+25°C, unless otherwise noted.)
Parameter
Storage temperature
Operating case temperature
Forward current (LD)
Reverse voltage (LD)
Reverse voltage (PD)
Reverse current (PD)
Soldering temperature (<10sec.)
Symbol Ratings
Tstg
-40~+90
Top
-20~+85
IfL
150
VrL
2
VrP
15
IrP
2
Stemp
260
Unit
°C
°C
mA
V
V
mA
°C
Page 2 of 7
Sumitomo Electric Industries, Ltd.
Part No.:
Document No.:
Date of issue:
SLV4270-xx/RH2 Series
HUW0724154-01A
February 14, 2008
4. Electrical and optical characteristics (Pf=2mW, Tc=+25°C, unless otherwise noted.)
Symbol
Condition
Ith CW
CW, Tc=-20~+85°C
Operating current
If
CW
CW, Tc=-20~+85°C
Operating voltage
Vf CW, Tc=-20~+85°C
Slope efficiency
Se CW, Average(Ith to Ith+20mA)
Thermal slope efficiency
TSe CW, Se(Tc)/Se(25°C)
Tc=-20~+85°C
Peak wavelength
λp
CW
CW, Tc=-20~+85°C
Side-mode suppression ratio SSR CW, Tc=-20~+85°C
Tracking error
ΔPf
Im hold(@Pf=2mW(25°C))
CW, Tc=-20~+85°C
Passband flatness
— peak to peak, f=5~200MHz
Second order
IMD2 OMI=20%, Tc=-20~+85°C, (*1)
inter-modulation distortion
Third order
IMD3 OMI=20%, Tc=-20~+85°C, (*1)
inter-modulation distortion
Spurious noise
SN OMI=20%, Tc=-20~+85°C, (*2)
OMI=0%, Tc=-20~+85°C, (*2)
Relative intensity noise
RIN CW, Tc=-20~+85°C, (*3)
Monitor current
Im CW, VrP=5V, Tc=-20~+85°C
Monitor dark current
Id VrP=5V
Monitor capacitance
C VrP=5V, f=1MHz
Note: *1. Optical loss=9dB, 2tone (13MHz, 19MHz)
Parameter
Threshold current
Min.
—
—
—
—
—
0.07
0.5
1300
1290
30
-1.0
—
—
—
—
—
—
50
—
—
Typ.
10
—
25
—
—
—
—
1310
—
—
—
—
-40
-55
-60
-52
-150
—
1
—
Max.
Unit
15
mA
45
45
mA
80
2.0
V
— mW/mA
1.5
—
1320
1330
—
1.0
1.0
—
—
—
—
—
1500
10
10
nm
dB
dB
dB
dBc
dBc
dBc
dBc
dB/Hz
µA
nA
pF
*2. Optical loss=9dB, Modulation signal=19MHz, f=5~200MHz, Res. B.W.=100kHz,
Video B.W.=30kHz, Hold time=30sec.
Using high gain optical receiver with responsivity of 90-100A/W
Since spurious noise is strongly dependent on an optical receiver, cross check is strongly
recommended.
*3. Zero link loss, ORL
≤-50dB,
f=5~200MHz
5. Fiber pigtail specification
Parameter
Type
Mode field diameter@1310nm
Cladding diameter
Outer jacket diameter
Bending radius
Min.
Typ.
Max.
Single Mode
8.5
9.5
10.5
122
125
128
0.8
0.9
1.0
30
—
—
Unit
—
µm
µm
mm
mm
Page 3 of 7
Sumitomo Electric Industries, Ltd.
Part No.:
Document No.:
Date of issue:
SLV4270-xx/RH2 Series
HUW0724154-01A
February 14, 2008
6. Ordering information
Part number
for RoHS compliance
SLV4270-PS/RH2
SLV4270-QP/RH2
SLV4270-QS/RH2
SLV4270-XS/RH2
Pin
assignment
Connector
type
FC/Angled PC
SC/Angled PC
No connector
Flange type
(hole pitch)
Horizontal (12.7mm)
Vertical (12mm)
Horizontal (12.7mm)
Horizontal (12.7mm)
Type A
7. Precaution
(1) Radiation emitted by laser devices can be dangerous to the eyes. Avoid eye or skin exposure to
direct or scattered radiation.
(2) The modules should be handled in the same manner as ordinary semiconductor devices to
prevent the electro-static damages. For safe keeping and carrying, the modules should be
packaged with ESD proof material. To assemble the modules on PCB, the workbench, the
soldering iron and the human body should be grounded.
(3) The stress to the fiber pigtail may cause the damage on the performance. The fiber pigtail may
snap off by dropping the module.
(4) Please pay special attention to the atmosphere condition because the dew on the module may
cause some electrical damages.
(5) Under such a strong vibration environment as in automobile, the performance and reliability are
not guaranteed.
8. RoHS Compliancy
On January 27, 2003, the European Parliament and the Council of the European Union issued the
directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS).
Member States shall ensure that, from July 1, 2006, new electrical and electronic equipment put on
the market does not contain lead, mercury, cadmium, hexavalent chromium, polybrominated
biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).
Applications listed in the Annex are exempted.
This product is compliant with RoHS 6/6 directive with exemptions “Lead in glass of cathode ray
tubes, electronic components and fluorescent tubes” and “Lead as an alloying element in steel
containing up to 0.35 % lead by weight, aluminium containing up to 0.4 % lead by weight and as a
copper alloy containing up to 4 % lead by weight”.
Page 4 of 7
Sumitomo Electric Industries, Ltd.
Part No.:
Document No.:
Date of issue:
SLV4270-xx/RH2 Series
HUW0724154-01A
February 14, 2008

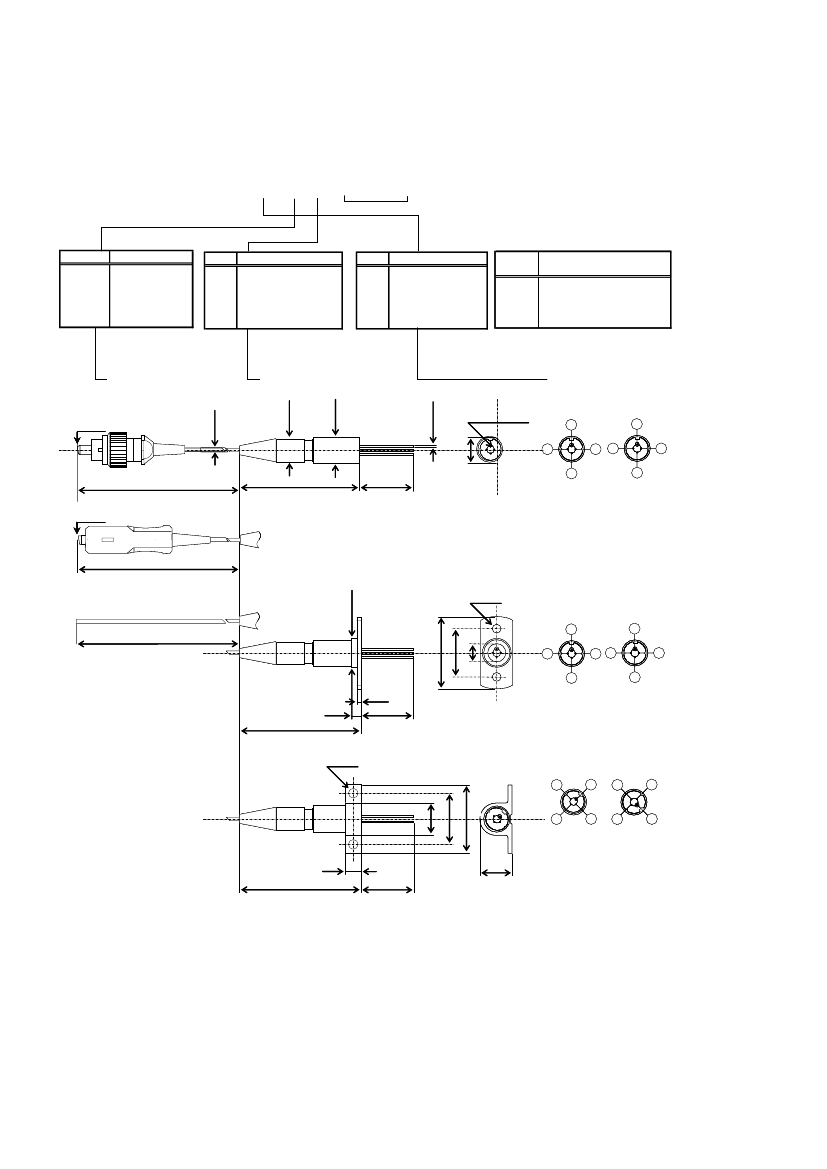

9. Appendix
Part No.: SLV427
Code
P
Q
X
Connector
Type
FC/angled PC
SC/Angled PC
No
Connector
-
/
(RH2 or Customize Code)
Code
N
P
S
X
Flange Type
Flangeless
Vertical (12.0mm)
Horizontal (12.7mm)
(Customized)
Code
Pin Assignment
0
Type A
1
Type B
Pin No.
1
2
3
4
Pin Function
for Type A and Type B
LD Anode(CASE)
LD Cathode
PD Cathode
PD Anode
Connector type
φ 0.9
Flange type
φ
(5.7)
4-φ0.45
φ
6.5
P.C.D. 2±0.5
φ6.5
4
Pin assignment
1
2
3
2
3
4
8°polishied
1
770 min
SC/PC connector
(*4)
8°polishied
30±1
Flangeless
12 min.
Type A
Type B
770 min
FC/PC connector
(*4)
φ
7.2
2-φ2.2
1
1
2
3
2
3
4
18
±
0.2
700 min
No connector
φ4.5
12
4
Vertical flange
2.5
30±1
1.0
11 min.
Type A
Type B
2-φ2.4
4
1
3
2
17±0.3
8±0.3
12.7
3
2
4
1
Type A
Horizontal flange
30±1
4
12 min.
8±0.3
Type B
Unit: mm
Tolerance:
±0.1mm,
unless otherwise noted.
Note: *4. IEC and JIS compliant. Detailed design not specified in the
IEC and JIS standards is a subject to change without notice.
Page 5 of 7
