PTK10-Q24-D12M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> PTK10-Q24-D12M

PTK10-Q24-D12M: DescriptionAnalog Circuit,; CategoryAnalog mixed-signal IC The signal circuit; File Size476KB，3 Pages; ManufacturerV-Infinity LLC

Download Datasheet Parametric Compare View All

PTK10-Q24-D12M Overview

Analog Circuit,

PTK10-Q24-D12M Parametric

Parameter Name	Attribute value
Maker	V-Infinity LLC
package instruction	,
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

•

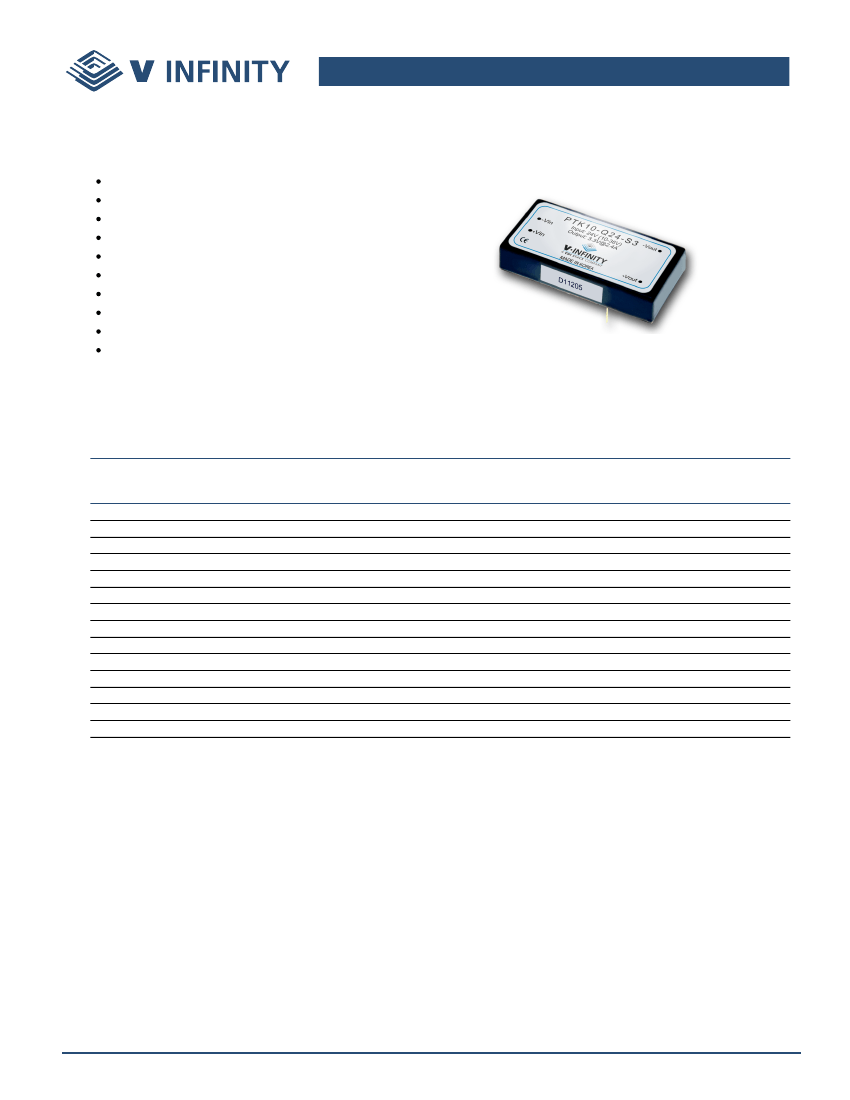

Key Features

Industry standard pin out

Wide 4 : 1 input range

Fully isolated

Over-current protection

Over-voltage protection

Six-sided EMI shielding

Constant switching frequency

High efficiency

Compact size 2.0" x 1.0" x 0.4"

3 year warranty

PTK10 Series DC/DC Converters

Model Configurations

Output

Power

(Max.)

7.9W

10.0W

10.8W

10.5W

10.0W

10.8W

10.5W

7.9W

10.0W

10.8W

10.5W

10.0W

10.8W

10.5W

Input

Voltage

10-36V

20-72V

Output

Voltage

3.3V

12V

15V

±5V

±12V

±15V

3.3V

12V

15V

±5V

±12V

±15V

Output

Current

(Min.)

Output

Current

(Max.)

2.4A

2.0A

0.9A

0.7A

1.0A

0.45A

0.35A

2.4A

2.0A

0.9A

0.7A

1.0A

0.45A

0.35A

Efficiency

(Typ.)

78%

80%

81%

79%

82%

83%

81%

83%

Line

Reg.

±0.5%

±1.0%

±0.5%

±1.0%

Load

Reg.

±1.0%

±2.5%

±1.0%

±2.5%

Model Number

PTK10-Q24-S3

PTK10-Q24-S5

PTK10-Q24-S12

PTK10-Q24-S15

PTK10-Q24-D5

PTK10-Q24-D12

PTK10-Q24-D15

PTK10-Q48-S3

PTK10-Q48-S5

PTK10-Q48-S12

PTK10-Q48-S15

PTK10-Q48-D5

PTK10-Q48-D12

PTK10-Q48-D15

Note 1. A l l m o d e l s a r e a l s o a v a i l a b l e i n a n e x t e n d e d t e m p e r a t u r e r a n g e o f - 4 0 º ~ 8 5 º C .

append "M" to the model number, e.g. PTK10-Q48-5M.

For these models,

V-INFINITY LLC, 9615 SW Allen Blvd., Suite 103, Beaverton, OR 97005

1-866-372-1258

www.v-infinity.com
