STL210-1070AGG-10-008U datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> STL210-1070AGG-10-008U

Preview

STL210-1070AGG-10-008U: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size205KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

STL210-1070AGG-10-008U Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle

STL210-1070AGG-10-008U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.125 inch
subject depth	0.15 inch
body length	0.157 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.256 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	8

STL210-1070AGG-10-008U Preview

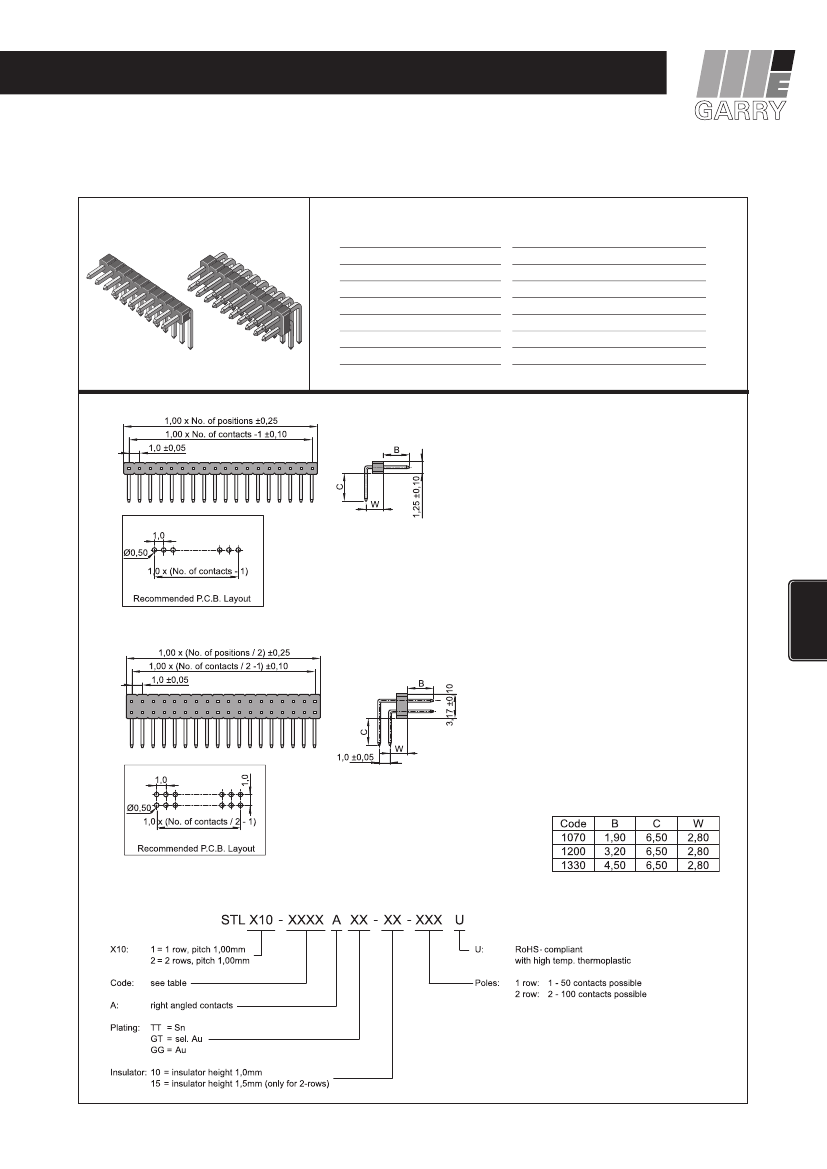

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

PIN HEADER 1,00 mm

ID: 352

STL 110-XXXXA / STL 210-XXXXA

Series 595

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

1,00 mm

high temp. thermoplast UL94V-0

copper alloy

1 Amp.

100 V

RMS

/150 V

DC

500 V

AC

for one minute

-40°C to +105°C

260°C for 10 seconds

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

255

8

| 1,00 mm

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
