LX1823IJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LX1823IJ

LX1823IJ: DescriptionSwitching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, CDIP16,; CategoryPower/power management The power supply circuit; File Size709KB，9 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX1823IJ Overview

Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, CDIP16,

LX1823IJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	10 V
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output current	2 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	33 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1500 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

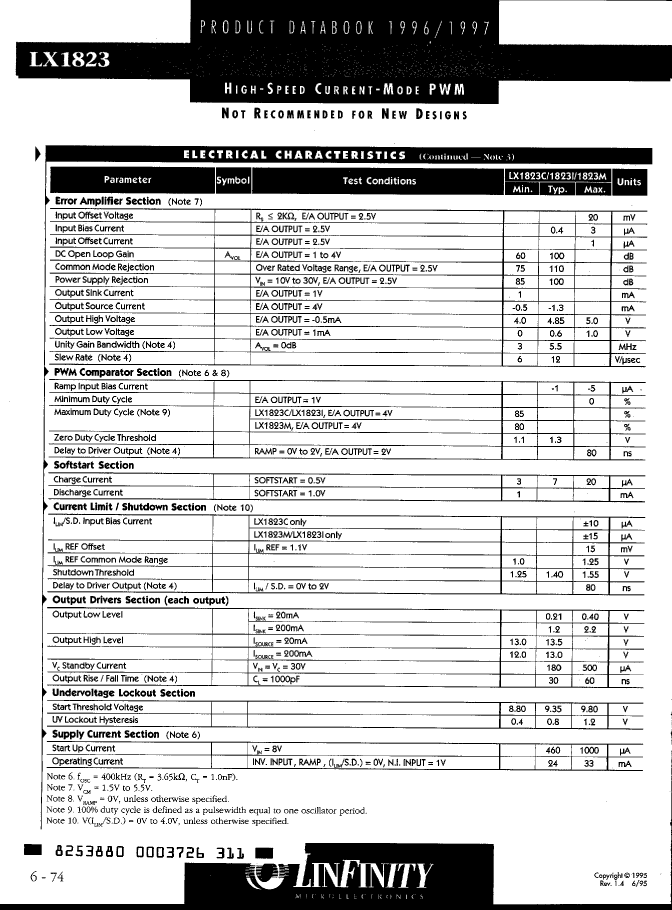

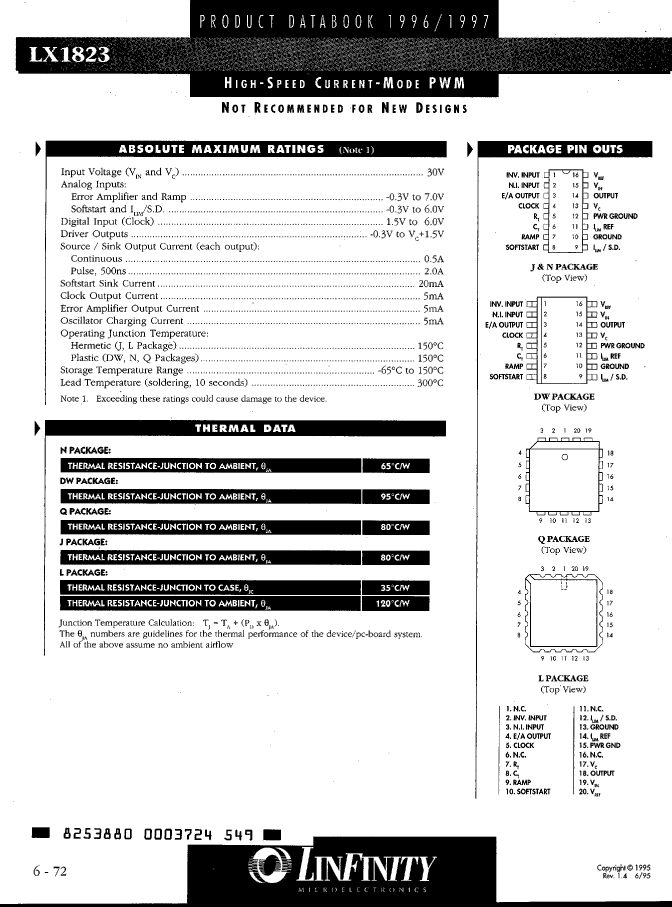

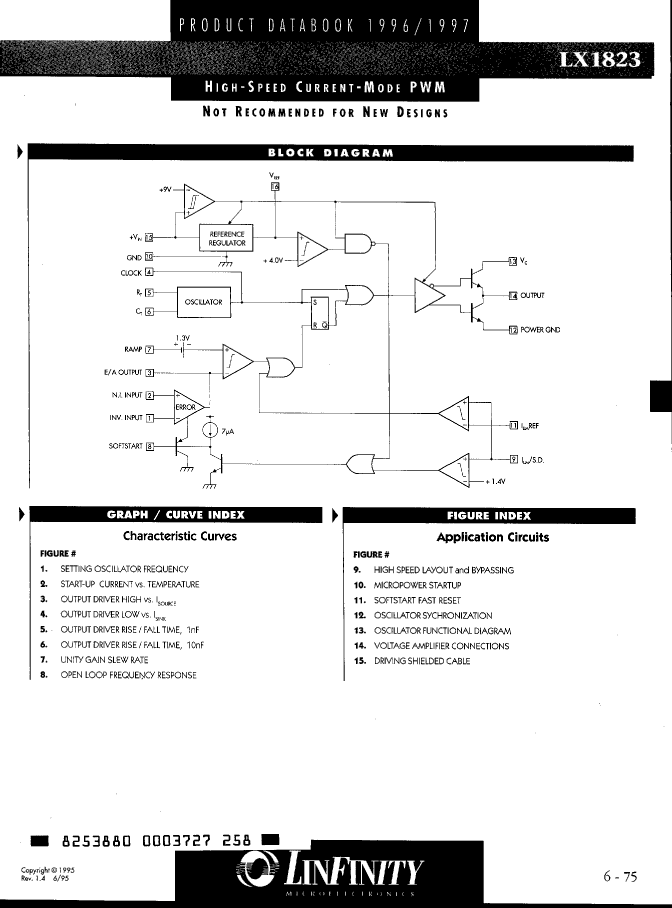

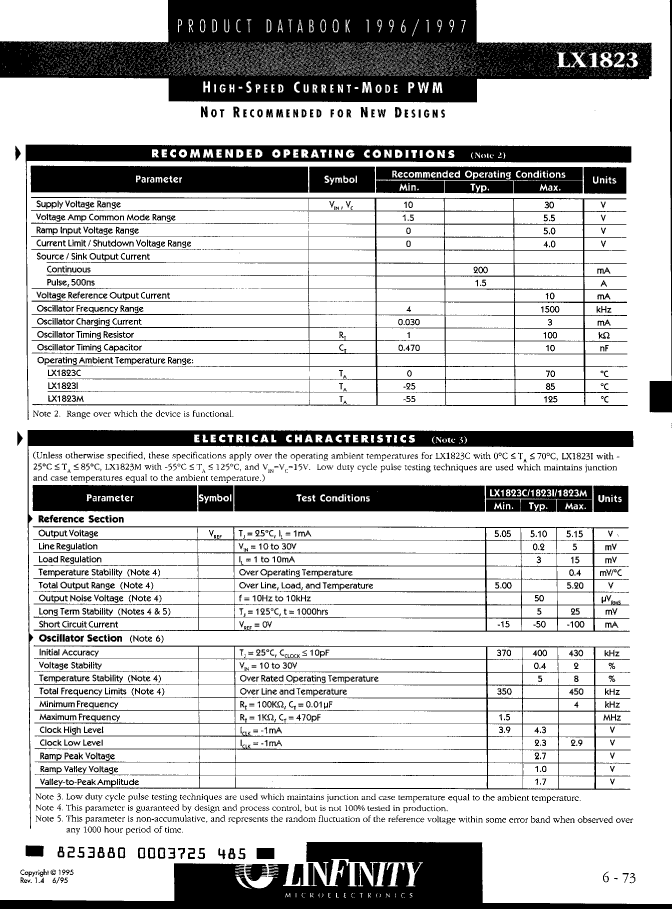

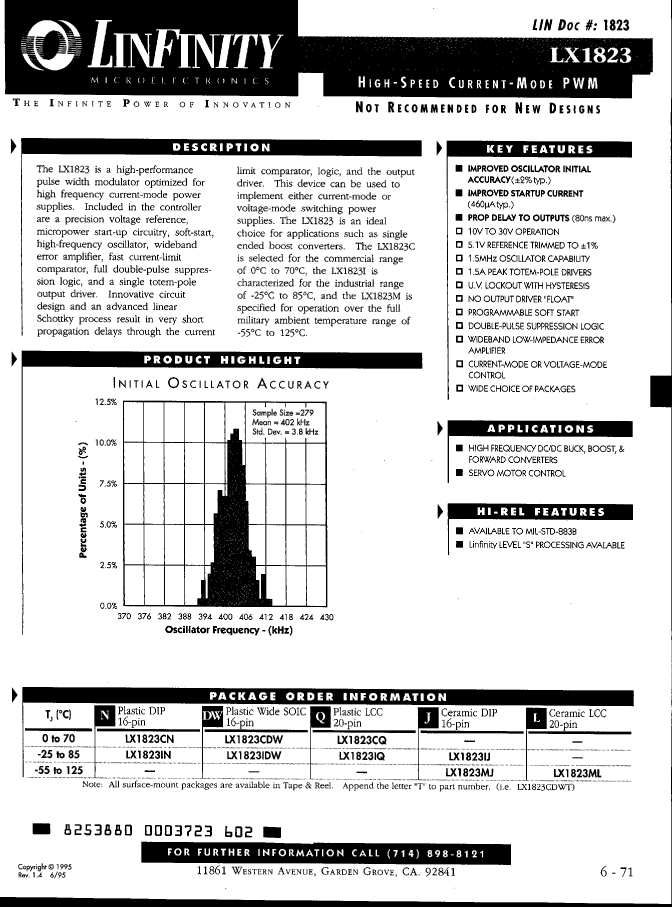

Preview

Download Datasheet

View All

LX1823IJ Related Products

	LX1823IJ	LX1823IDW	LX1823IQ	LX1823IN	LX1823CQ	LX1823CN	LX1823MJ	LX1823CDW	LX1823ML
Description	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, CDIP16,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PDSO16,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PQCC20,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PDIP16,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PQCC20,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PDIP16,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, CDIP16,	Switching Controller, Current-mode, 2A, 1500kHz Switching Freq-Max, BIPolar, PDSO16,	Switching Regulator/Controller, Current-mode, 0.2A, 500kHz Switching Freq-Max, BIPolar, CQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
JESD-30 code	R-CDIP-T16	R-PDSO-G16	S-PQCC-J20	R-PDIP-T16	S-PQCC-J20	R-PDIP-T16	R-CDIP-T16	R-PDSO-G16	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	16	16	20	16	20	16	16	16	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-	-	-55 °C	-	-55 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	0.2 A
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	SOP	QCCJ	DIP	QCCJ	DIP	DIP	SOP	QCCN
Encapsulate equivalent code	DIP16,.3	SOP16,.4	LDCC20,.4SQ	DIP16,.3	LDCC20,.4SQ	DIP16,.3	DIP16,.3	SOP16,.4	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	SMALL OUTLINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	SMALL OUTLINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	NO	YES	NO	NO	YES	YES
Maximum switching frequency	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	500 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER	OTHER	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	GULL WING	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Maker	Linfinity Microelectronics	-	-	-	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	-
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-
Maximum input voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	-
Minimum input voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	-
Number of functions	1	1	1	1	1	1	1	1	-
Maximum supply current (Isup)	33 mA	33 mA	33 mA	33 mA	33 mA	33 mA	33 mA	33 mA	-
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
