TL1431CLP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TL1431CLP

TL1431CLP: DescriptionTwo Terminal Voltage Reference, 1 Output, 2.5V, PBCY3,; CategoryPower/power management The power supply circuit; File Size348KB，12 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

TL1431CLP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL1431CLP	-	-	View	Buy Now

TL1431CLP Overview

Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3,

TL1431CLP Parametric

Parameter Name	Attribute value
Maker	Linfinity Microelectronics
Reach Compliance Code	unknow
Other features	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum supply current (Isup)	1 mA
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO

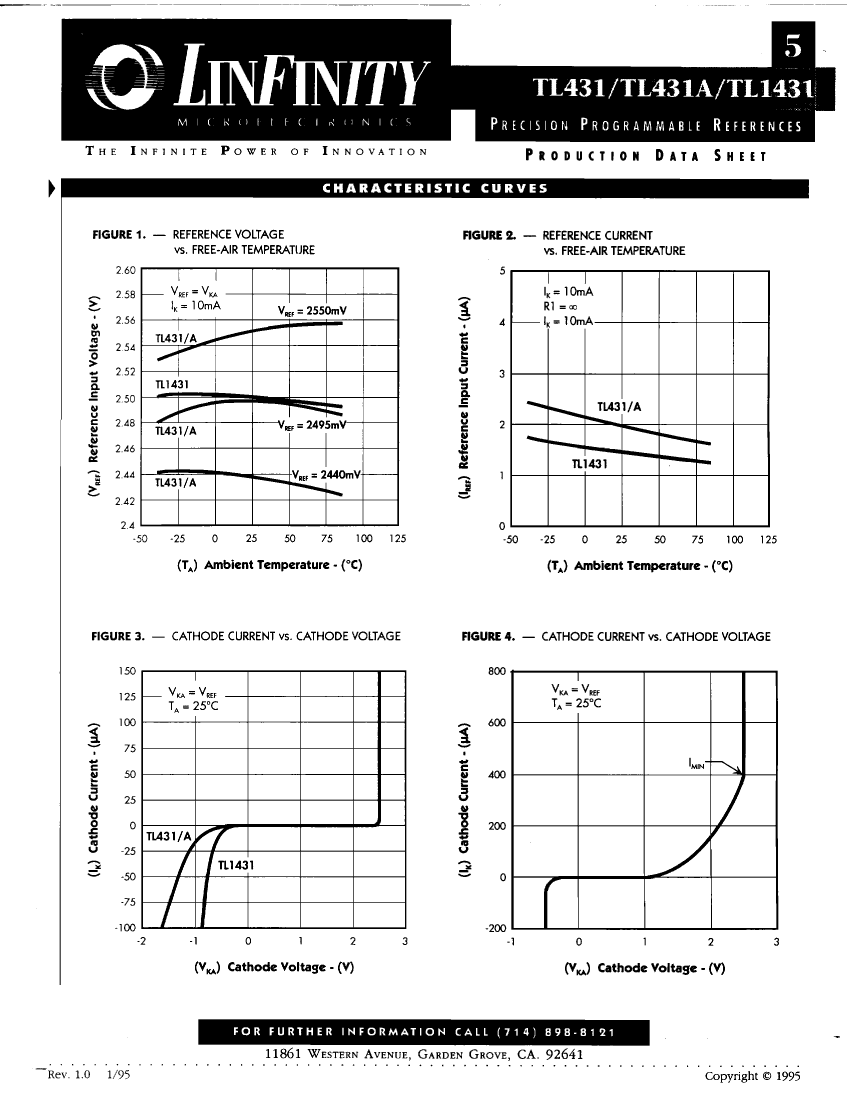

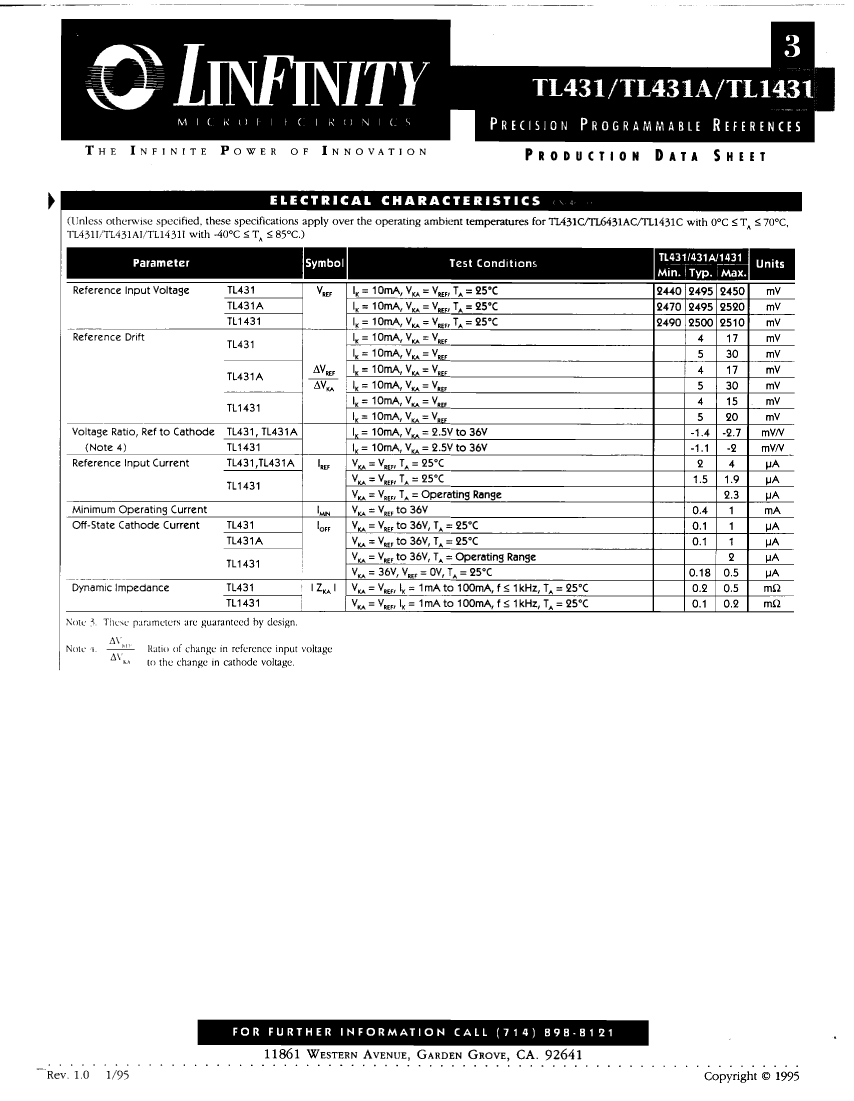

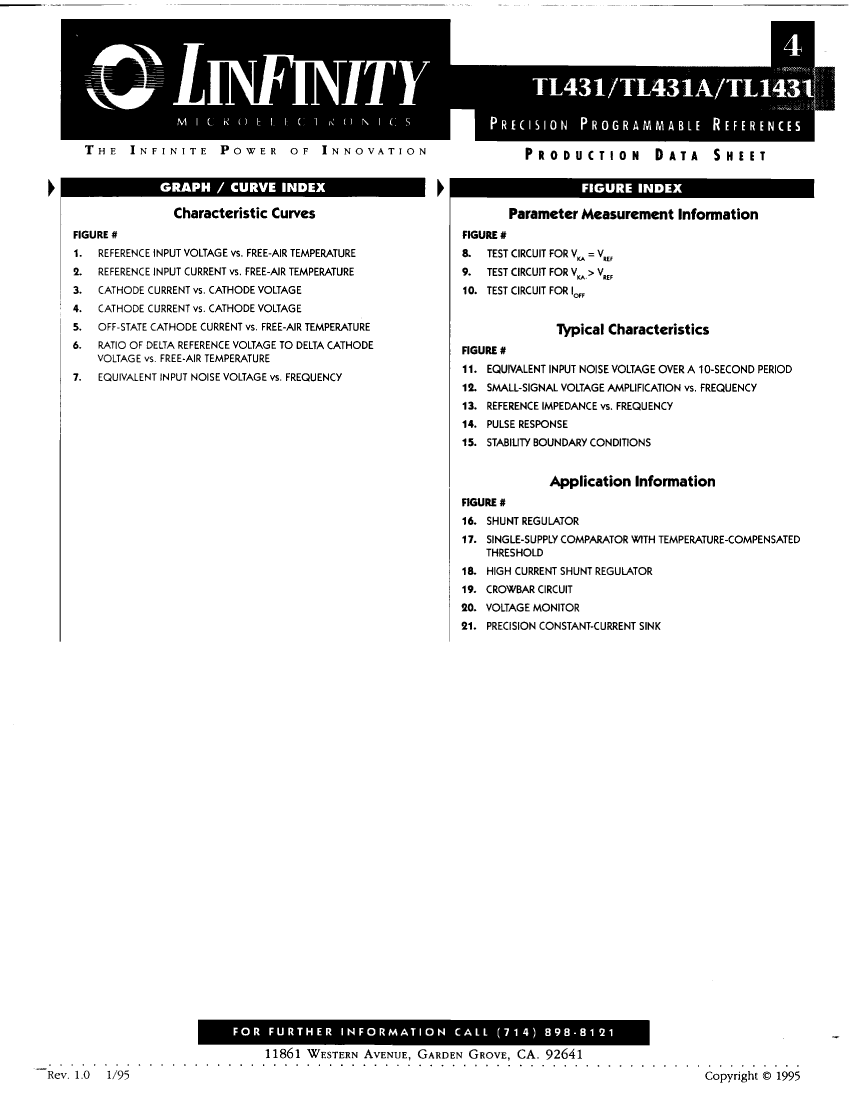

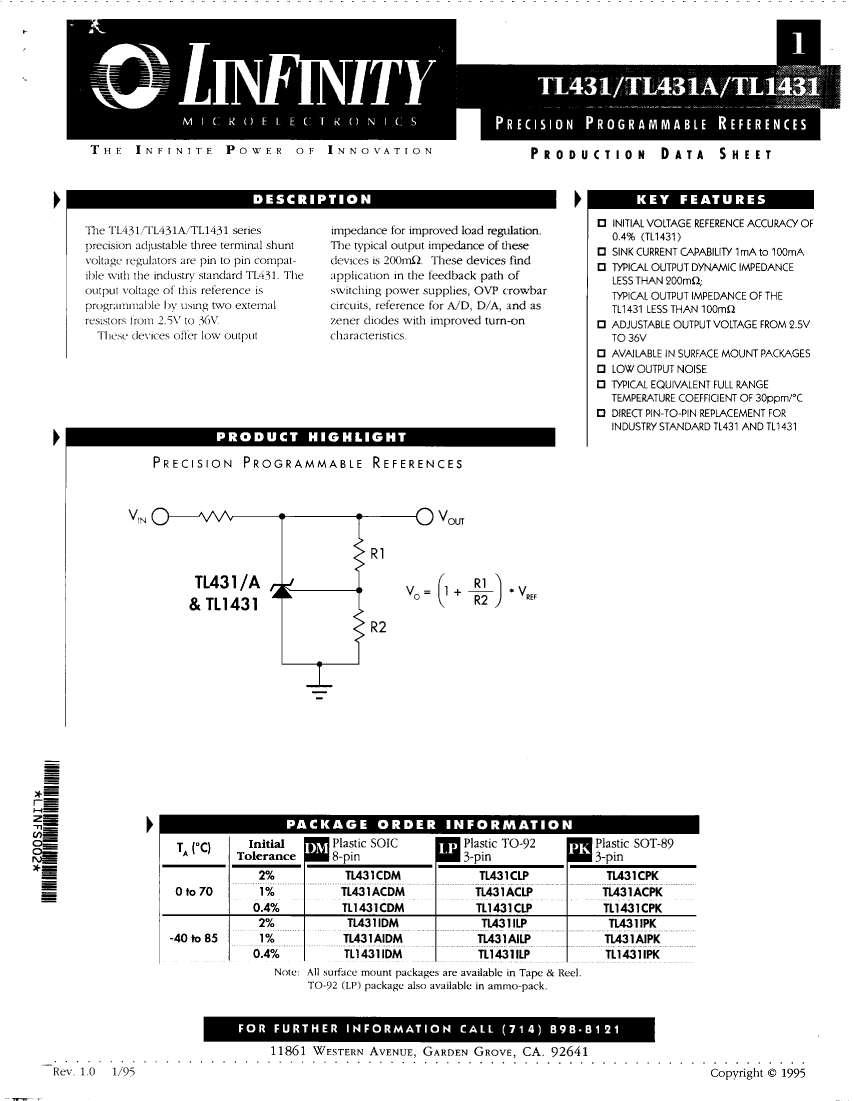

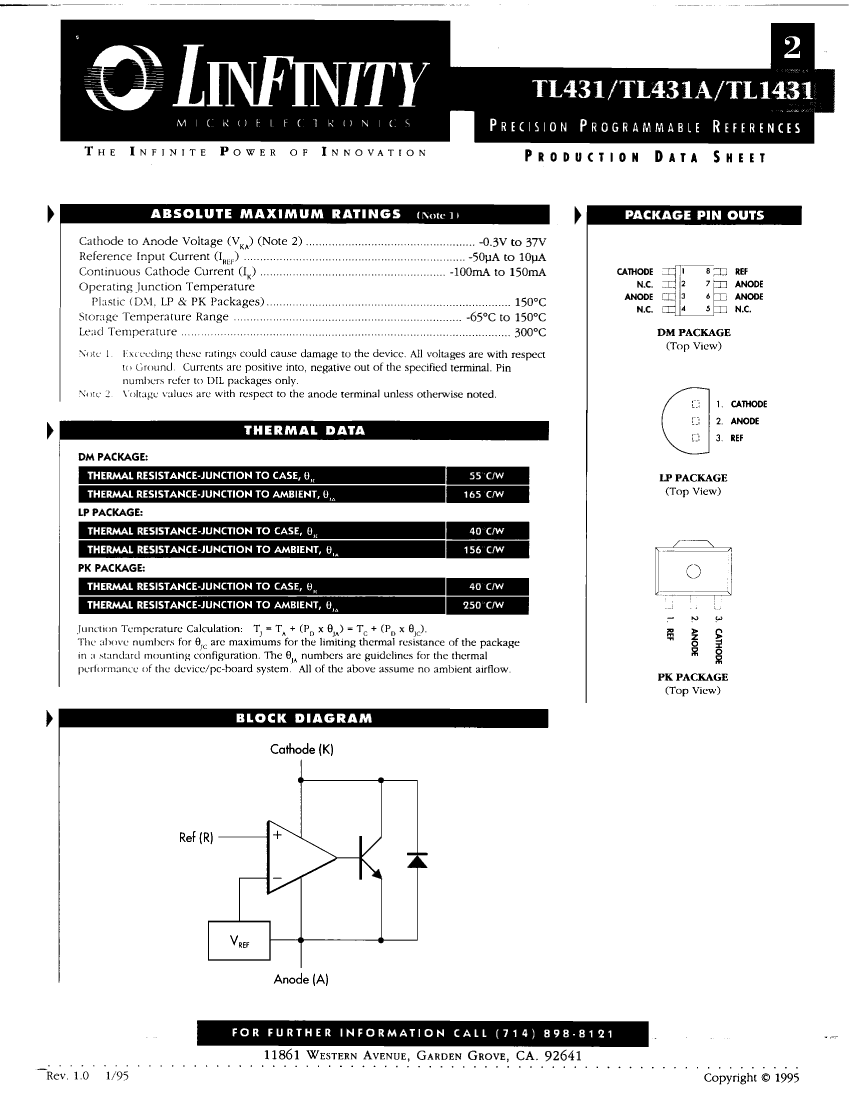

TL1431CLP Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TL1431CLP Related Products

	TL1431CLP	TL1431CPK	TL1431CDM	TL1431ILP	TL1431IDM	TL1431IPK
Description	Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3,	Two Terminal Voltage Reference, 1 Output, 2.5V, PSSO3,	Two Terminal Voltage Reference, 1 Output, 2.5V, PDSO8,	Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3,	Two Terminal Voltage Reference, 1 Output, 2.5V, PDSO8,	Two Terminal Voltage Reference, 1 Output, 2.5V, PSSO3,
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Other features	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3	R-PSSO-F3	R-PDSO-G8	O-PBCY-T3	R-PDSO-G8	R-PSSO-F3
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	3	3	8	3	8	3
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C
Nominal output voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
surface mount	NO	YES	YES	NO	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	FLAT	GULL WING	THROUGH-HOLE	GULL WING	FLAT
Terminal location	BOTTOM	SINGLE	DUAL	BOTTOM	DUAL	SINGLE
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
