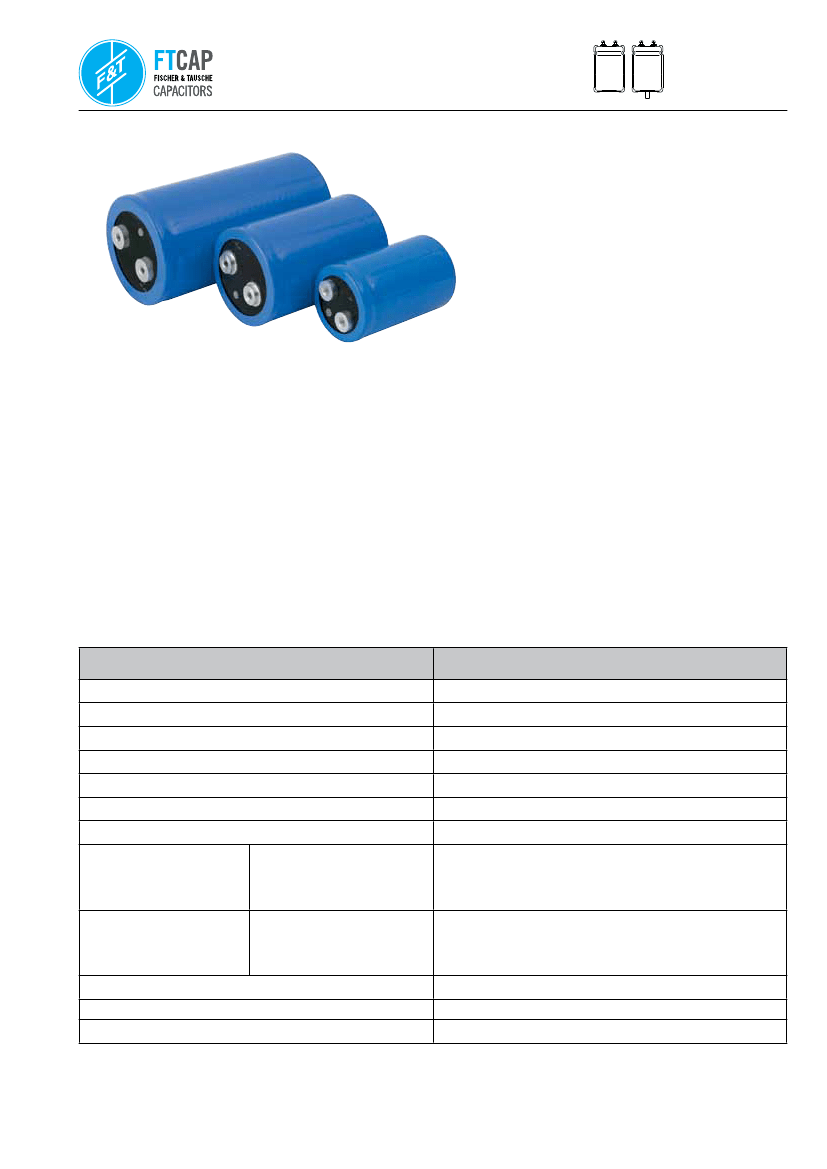

Special electrolyte
85 °C
GF
Non flammable electrolyte
Screw terminals
High CV product
Long life 8000 h @ 85°CGF
RoHS compliant
REACH compliant
Features
•
•
•
•
All internal contact welded
Self distinguishing electrolyte
High capacitance
High reliability
Applications
•
•
•
•
Industrial
Inverter/drives
Professional photoflash
Welding
Different case sizes, voltages and
capacitance combinations
are available on request.
Also in small lots.
General specifications
Items
Rated capacitance range C
R
Capacitance tolerance
Rated voltage range U
R
Surge voltage U
S
Max. reverse voltage / ESL
Category temperature range
Leakage current I
L
after 5 min @ U
R
Useful life
8000 h @ 85 °C ; U
R
; I
R~
Characteristics
390 … 18.000 µF
± 20%
350 … 450 V
U
S
= 1,10 U
R
2 V / 20 nH
- 25°C ... + 85°C
≤ 0,008 * C
R
[µF] * U
R
[V] + 6 µA [µA]
Requirements
Δ C/C ≤ 30 % of initial value
ESR ≤ 300 % of specified limit
I
L
≤ /specified limit
Requirements
Δ C/C ≤ 20 % of initial value
ESR ≤ 130 % of specified limit
I
L
≤ specified limit
25/085/56
≥ 2500 V AC
IEC 60384-4
Endurance test
Climatic category IEC 60068
2000 h @ 85 °C , U
R
Voltage proof of the external insulation
Sectional specification
Fischer & Tausche Capacitors
Husum / Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
43
Special electrolyte
85 °C
GF

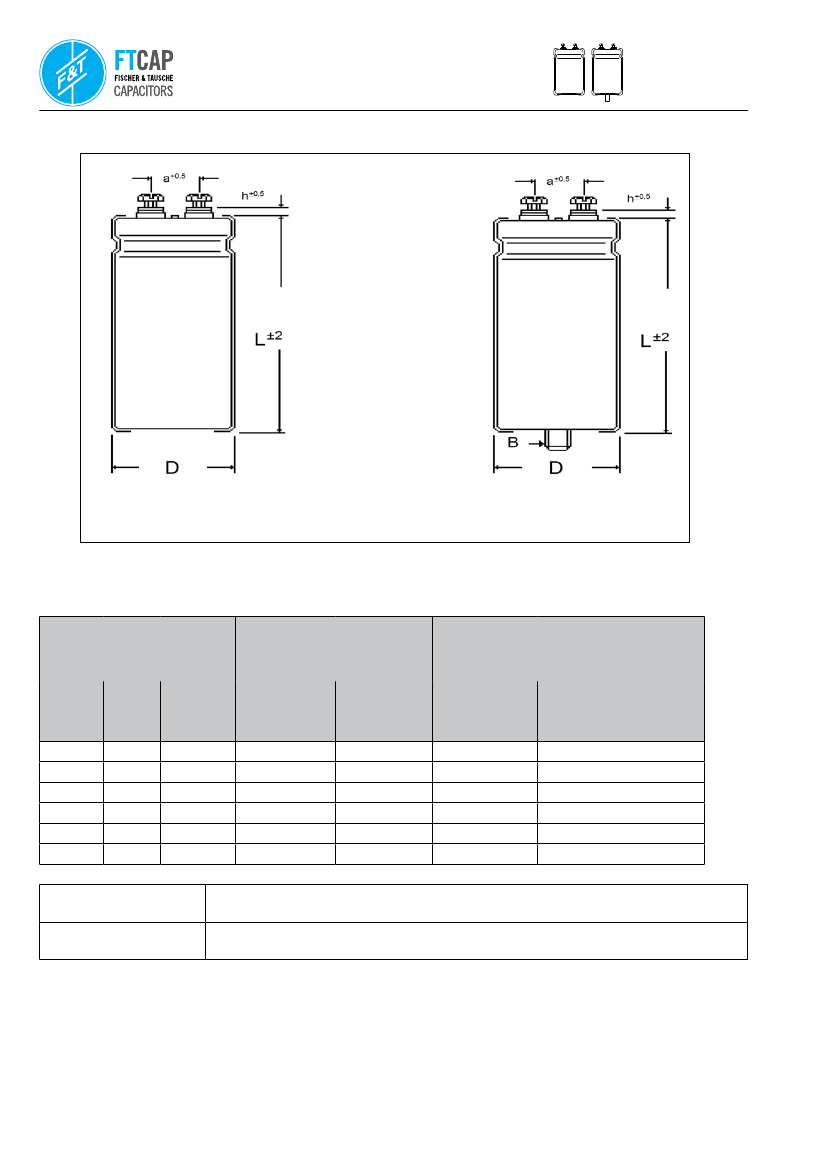

Drawings for series GFA and GFB
Fig1:
GFA
for ring clamp mounting
Fig 2:
GFB
for stud mounting
Dimensions and mechanical data
Dimensions, case with insula-
tion sleeve
Connecting terminals
Mounting stud, GFB only
D
[mm]
35
40
50
65
75
90
h
[mm]
6
5
5
5
5
5
a
[mm]
13
18
22
28,5
31,7
31,7
Thread
M5
M5
M5
M5
M 5, M 6
M6
Max. torque
[Nm]
2,0
2,0
2,0
2,0
2,0 ; 2,5
2,5
B
M 8 x 12
M 8 x 12
M 12 x 16
M 12 x 16
M 12 x 16
M 12 x 16
Max. torque
[Nm]
4,0
4,0
10,0
10,0
10,0
10,0
GFA : connecting screws M 5 or M 6
GFB : connecting screws M 5 or M 6 + mounting nut M 8 or M 12
Remarks
Further mounting accessories like clamps, nylon cup nuts and insulation disks on request,
see “accessory equipment”
Fischer & Tausche Capacitors
Husum / Germany
44
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
Special electrolyte
85 °C
GF
Rated cap. Case size
C
R
[µF]
2200
3900
3900
6800
10000
12000
18000
390
560
680
820
1000
1200
1200
1200
1800
1800
3900
3300
5600
8200
10000
15000
Typ. ESR Ripple current
IR~
D x L [mm] 100 Hz, 100 Hz, 85°C
20°C [mΩ]
[A]
65x80
75x100
65x130
75x145
90x148
75x225
90x230
35x55
35x100
40x55
40x60
45x70
40x100
50x70
45x100
50x100
65x80
75x100
65x130
75x145
75x225
90x148
90x230
51
29
29
16
11
9
6
286
199
164
136
111
93
93
93
62
62
29
34
20
14
11
7
5,2
7,5
8,3
11,5
15,6
18,3
25,1
1,5
0,9
2,1
2,4
3,2
3,5
3,2
3,5
4,5
4,7
7,5
7,7
10,4
15,1
15,6
22,9
Order code
Plain base:
GFA…
Stud mounting:
GFB…
22240065080
39240075100
39240065130
68240075145
10340090148
12340075225
18340090230
39145035055
56145035000
68145040055
82145040060
10245045100
12245040100
12245050070
12245045100
18245050100
18245065080
39245075100
33245065130
56245075145
82245075225
10345090148
15345090230
Electrical data and ordering code for series GF
Rated
voltage
U
R
[V]
Rated cap.
C
R
[µF]
560
680
1200
1500
1800
1800
2200
2700
3300
4700
5600
8200
12000
12000
18000
390
560
1000
1000
1200
1200
1500
1800
Typ. ESR Ripple current
IR~
D x L [mm] 100 Hz, 100 Hz, 85°C
20°C [mΩ]
[A]
35x55
40x55
45x70
35x100
40x100
50x70
45x100
50x100
65x80
75x100
65x130
75x145
75x225
90x148
90x230
35x55
40x55
45x70
35x100
40x100
50x70
45x100
50x100
199
164
93
74
62
62
51
41
34
24
20
14
9
9
6
286
199
111
111
93
93
74
62
1,8
2,1
3,0
3,7
4,3
4,0
4,7
5,6
6,4
8,3
10,0
12,6
18,3
17,1
25,1
1,5
1,9
2,8
3,0
3,5
3,2
3,9
4,5
Case size
Order code
Plain base:
GFA…
Stud mounting:
GFB…
56135035055
68135040055
12235045070
15235035100
18235040100
18235050070
22235045100
27235050100
33235065080
47235075100
56235065130
82235075145
12335075225
12335090148
18335090230
39140035055
56140040055
10240045070
10240035100
12240040100
12240050070
15240045100
18240050100
Rated
voltage
U
R
[V]
400
350
450
400
Fischer & Tausche Capacitors
Husum / Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
45

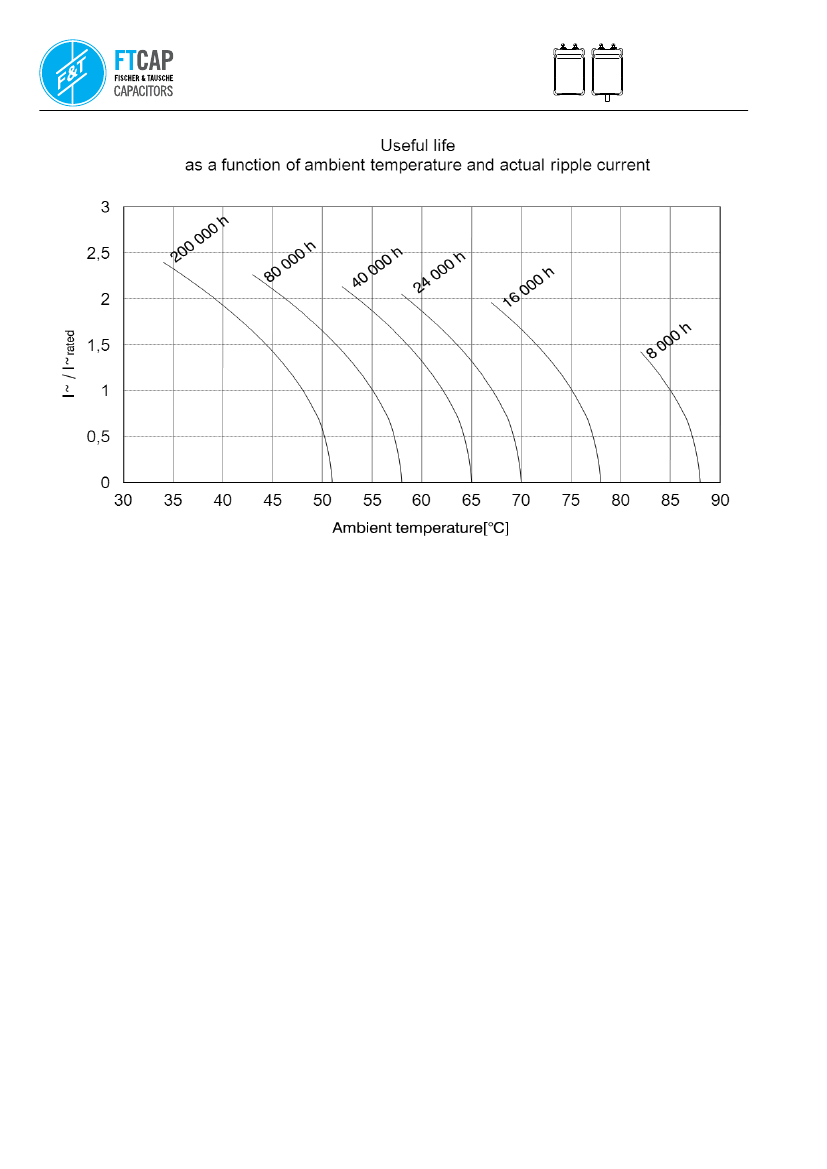

Special electrolyte
85 °C
GF
Fischer & Tausche Capacitors
Husum / Germany
46
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
