Precision chip resistors
[voltage resistant up to 1000 VDC]
Type series: CRV
Sizes
· RR1206
· RR2512
Features
· Design specification CECC 40 401-801
· Extended value range for all designs
· Tight tolerance range (up to 0.05%)
· Low TK (up to 5 ppm/K)
· Extremely low-noise
· High-voltage resistant
· RoHS-compliant

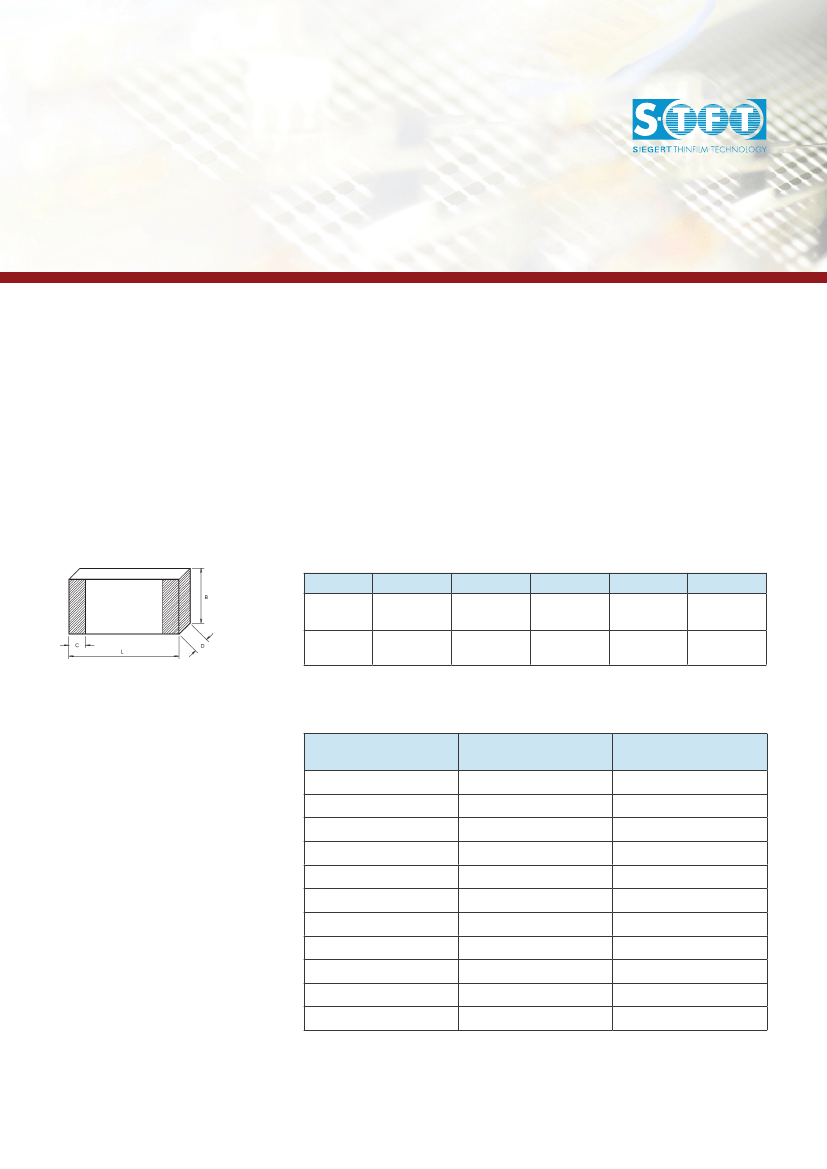

Dimensions
Size
RR1206
RR2512
Metric
RR3216M
RR6332M
L
3.2
± 0.2
6.3
± 0.2
B
1.6
± 0.15
3.2
± 0.2
D
0.55
± 0.1
0.55
± 0.2
C
0.5
± 0.2
0.5
± 0.2
(L = Length, B = Width, D = Thickness, C = Width around contact in mm)
Technical data (size-dependent)
Value range
5R1 - < 10R
10R - < 47R
47R - <100R
100R - 10K
>10K - 100K
>100K - 332K
>332K - 511K
>511K - 1M
>1M - 2M
>2M - 5M
>5M - 15M
*1)
*1)
1206
TK/ tolerances
≤
TK 25/≤± 0.1 %
≤
TK 10/≤± 0.1 %
≤
TK 5/≤± 0.1 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.1 %
≤
TK 15/≤± 0.1 %
-
2512
TK/ tolerances
≤
TK 25/≤± 0.1 %
≤
TK 10/≤± 0.1 %
≤
TK 5/≤± 0.1 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.05 %
≤
TK 5/≤± 0.1 %
≤
TK 10/≤± 0.1 %
≤
TK 10/≤± 0.1 %
TK – division [ppm/K]: 5; 10; 15; 25; 50
Tolerance division [%]: 0.05; 0.1; 0.25; 0.5; 1
The data shown in this table are the best attainable values.
Other parameters on request.
S-TFT | Precision chip resistors | Type series: CRV | Page: 1 of 2
Size
Load capacity P
70
(mW)
Stability class
0.5; 1
0.1
1206
250
100
1,000
2512
750
400
1,000
Customized versions
· Layout adjustment
· The parameters are specified by the
customer.
A customized layout is developed
and implemented technologically
by our own development
department.
Nominal voltage (VDC)
0.1; 0.5; 1
Stability class according to CECC 40401-801
Form of Delivery
Technical data (general)
Operating temperature range:
Solderability (RoHS-compliant):
Resistance to soldering heat:
-55 °C ... +125 °C
245 °C; 3 s
260 °C; 10 s
· Bulk packed or blister tape
according to DIN IEC 60286-3
(tape width: 8mm,
reel diameter: 180 mm)
· Minimum quantity loose packed:
100 pieces per unit
· Minimum quantity for taping:
500 pieces per unit
Long-Term Stability
Storage 125 °C/1000 h
Storage 155 °C/1000 h
Permanent load P
70
/70 °C/1000 h
Damp heat (56 d / 40 °C / 96 %)
Data unless specified otherwise: CECC 40401-801
47
Ω
-15 MΩ
<± 0.15 %
<± 0.35 %
<± 0.1 %
<± 0.15 %
< 47
Ω
<± 0.25 %
<± 0.5 %
<± 0.25 %
<± 0.5 %
Ordering Data
Example:
CRV 1206 – 1M00 ± 0.1 % - TK 15 - taped
Type
Unit
Tolerance
TK
form of delivery,
if not packed loose
Sales and Development:
Tel. +49 036601 858 - 21
S-TFT | Precision chip resistors | Type series: CRV | Page: 2 of 2
