300SP-4J1BLKVS2QE datasheet, PDF

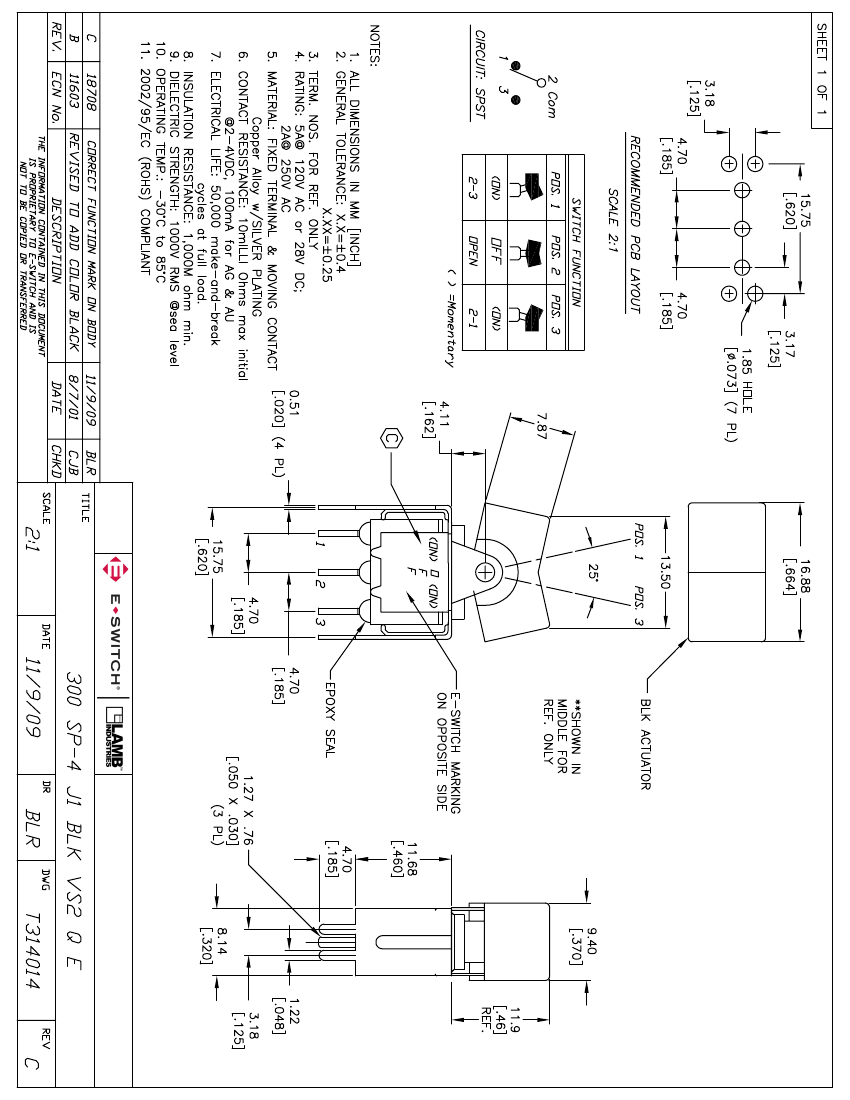

300SP-4J1BLKVS2QE: DescriptionRocker Switch, SPDT, (on)-off-(on), Momentary, 5A, 28VDC, 7 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size68KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

300SP-4J1BLKVS2QE Overview

Rocker Switch, SPDT, (on)-off-(on), Momentary, 5A, 28VDC, 7 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compli
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	BLACK
Actuator type	ROCKER
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	(ON)-OFF-(ON)
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	300SP-4J1BLKVS2QE
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	7
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.185 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
