R5-H-BLK-ORG-A-F-0: DescriptionRocker Switch, DPST, On-(off), Momentary, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size136KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

R5-H-BLK-ORG-A-F-0 Overview

Rocker Switch, DPST, On-(off), Momentary, Quick Connect Terminal, Rocker Actuator, Panel Mount

R5-H-BLK-ORG-A-F-0 Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compli
ECCN code	EAR99
Actuator angle
Actuator color	ORANGE
Actuator length	0.306 inch
Actuator material	NYLON
Actuator type	ROCKER
Other features	APPROVALS:UL, CSA, VDE
body width	21.59 mm
Body color	BLACK
body height	28.9052 mm
Body length or diameter	35.9918 mm
center contact material	COIN SILVER
Center contact plating	SILVER
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Contact function	ON-(OFF)
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	6000 Cycle(s)
End contact material	COIN SILVER
End contact plating	SILVER
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	R5
Installation features	PANEL MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	ROCKER SWITCH
Terminal length	0.386 inch
Terminal material	BRASS
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

series

R5

Switches

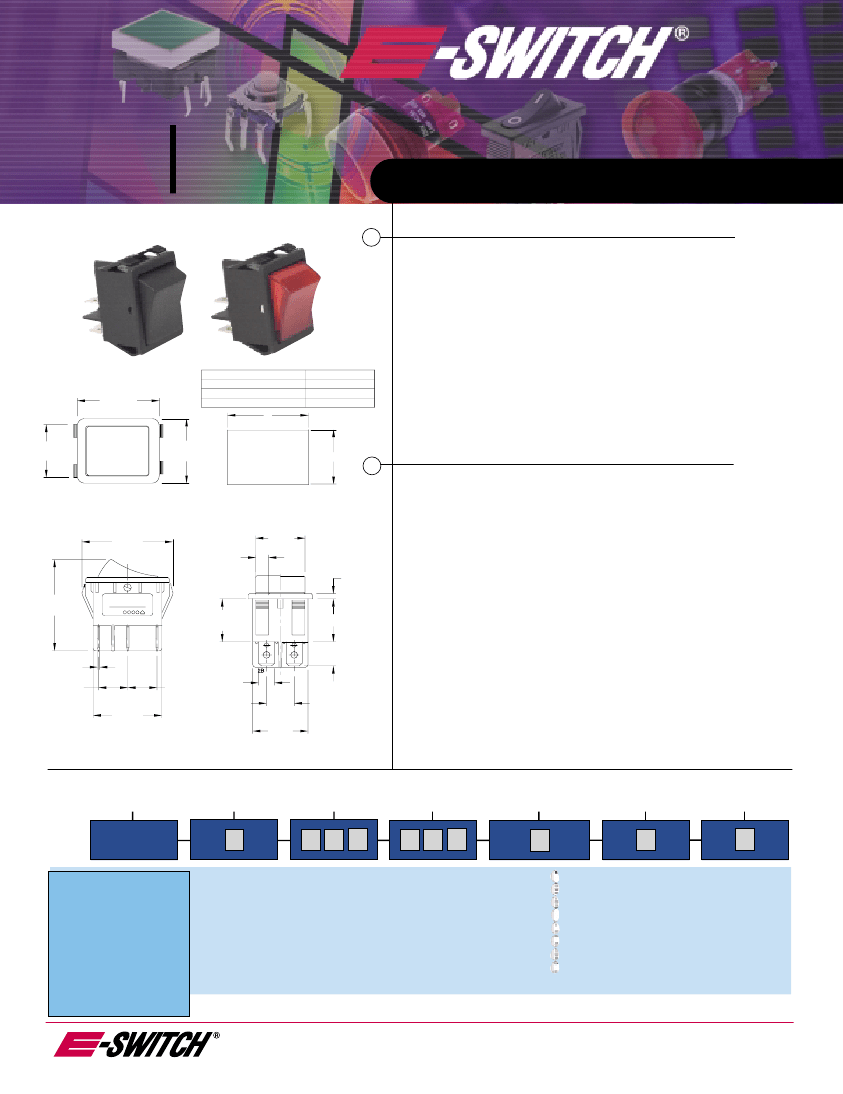

I L L U M I N AT E D R O C K E R S W I TC H E S

S

P E C I F I C AT I O N S

Rating:

15A 250V, 20A 125VAC For Circuits A, B, C, E, F & H

10A 250V, 15A 125V AC For Circuits D, G &I

Mechanical Life:

≥30,000

cycles

Electrical Life:

≥6,000

cycles

Contact Resistance:

<20mΩ (Initial)

Insulation Resistance:

>1,000MΩ @ 500V DC

PANEL THICKNESS

0.75~1.25 [.030-.049]

30.0

30.2

30.6

1.25~2.0 [.049-.079]

2.0~3.0 [.079-.118]

X dimension

+0.2

[1.181]

[1.189]

[1.205]

Dielectric Strength:

>1,500V AC 1 minute (Initial)

Saftey Std. Approval:

UL, CSA, VDE

32.00

[1.260]

X

20.70

[.815]

25.00

[.984]

22.2~22.3

M

AT E R I A L S

Body:

Nylon 66 -- UL94 V-2

Rocker:

Nylon 66, PC for illuminated versions -- UL94 V-2

Contact Surface:

Coin silver, silver plated

Terminal:

Silver plated brass

Illuminated Rockers:

Neon lamp or Incandescent bulb

Operating Temperature:

-20C to +55C

Storage Temperature:

-30C to +80C

RECOMMENED PANEL MOUNTING

NOT TO SCALE

36.0

[1.417]

5.00

TYP.

19.60

[.772]

2.00

[.079]

36.7

[1.444]

15A 125VAC

10A 250V ~

T85

R5

17.10

[.673]

2a

2

2B

1B

9.80

[.386]

6.35

[.250]

TERMINAL

Typ.

0.81

TYP.

11.40

[.449]

27.10

[1.067]

11.40

[.449]

11.10

[.437]

21.60

H

OW

TO

Series

O

RDER

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Circuit

Housing Color

Actuator Color

Marking

Termination

Lamp Voltage

R5

CIRCUIT CODE:

A = DPST On-Off

B = DPST On-Off Illuminated

C = DPDT On-On

D = DPDT On-Off-On

E = DPDT On-(On)

F = DPST Off-(On)

G = DPDT (On)-On-(On)

H = DPST On-(Off)

I = DPDT On-Off-(On)

( ) Denotes momentary function

See Below

BLK=Black

WHT=White

BLK=Black

WHT=White

RED=Red

*YEL=Yellow

*GRN=Green

GRY=Gray

ORG=Orange

*RED=Red

* Available for Illuminated Version Only

A

B

C

E

F

G

H

I

F=Faston

0=No Lamp

1=125V AC

1

2=250V AC

1

3=12V AC

2

1 Neon Bulb

2 Incandescent Bubl

7153 Northland Dr., Brooklyn Park, MN 55428

Phone: 763-504-3525 Fax: 763-531-8235

www.e-switch.com

info@e-switch.com
