Technical Data
2032
Effective
August
2017
Supersedes
December
2015
GLR
(fuse) HLR (fuse holder)
Non-rejecting, fast-acting fuse and in-line fuse holders
Catalog symbol:
GLR (fuse) HLR (fuse holder)
Ampere Rating:
3/16
-
15
A
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 A
Agency information
Fuse
•
UL® Listed, Std. 248-14, 3/16-15A/300Vac, Guide
JDYX, File E19180
•
CSA® Certified, C22.2 No. 248.14, 0-10A/300Vac,
Class 1422-01, File 53787
Fuse holder
HLR
•
UL Recognized, 12A, 300Vac, Guide IZLT2, File
E14853
•
CSA Certified, 12A, 300Vac, Class 6225-01, File 47235
HLR-2A and HRL-2L
•
UL Recognized, 15A, 300Vac, Guide IZLT2, File
E14853
•
CSA Certified, 15A, 300Vac, Class 6225-01, File 47235
A
•
CSA Certified, 10A, 300Vac, Class 6225-01, File 47235

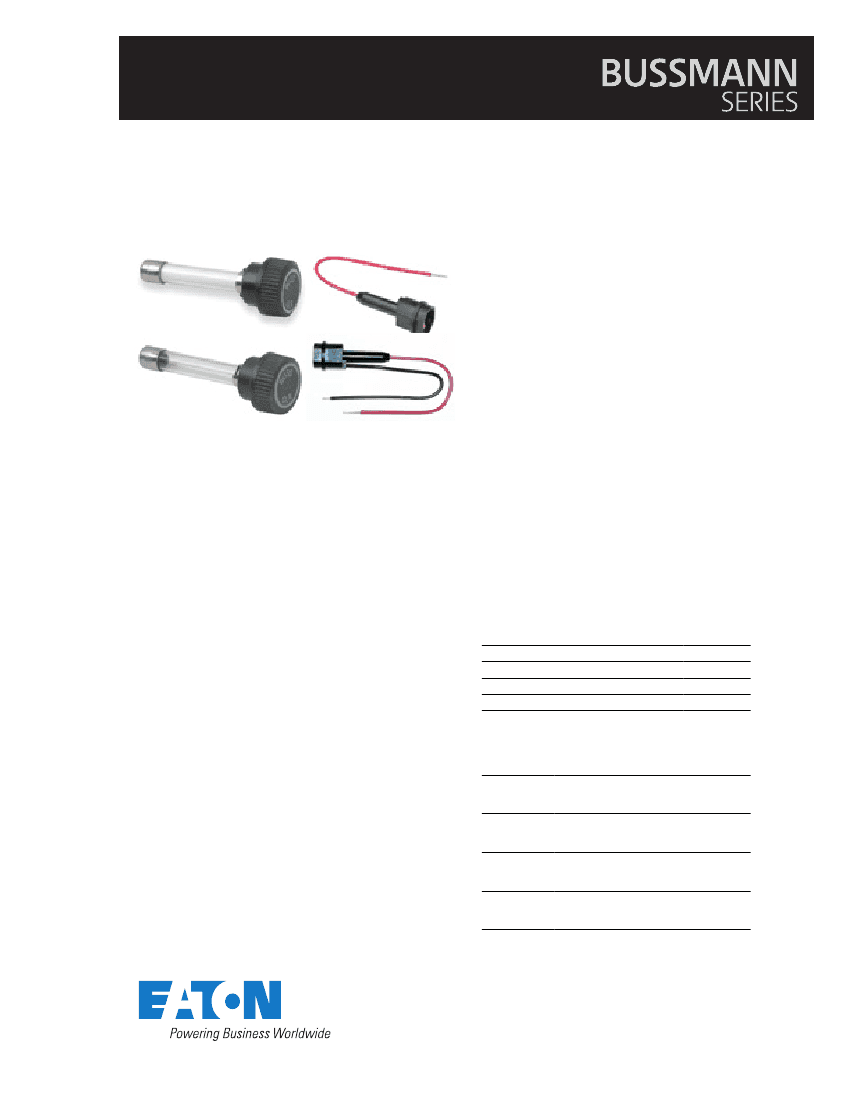

Product features
•
GLR fuse and knob are an integral one-piece unit. There
are no replacement knobs (caps)
•
Units can be panel mounted with a separate steel clip. For
knockout hole mounting (see dimensions), order catalog
number BK/A-104. For the keyhole punch type hole
mounting, order catalog number 6374 for panels 0.043” to
0.062” thick, or catalog number 4909 for panels 0.030” to
0.042” thick.
•
The HLR holder comes with 6 inches of red #18 insulated
solid copper wire attached to the lineside terminal,
customer inserts a #18 insulated solid copper wire into
loadside terminal
•
Order holder catalog number HLR-2A to obtain 6 inches of
black #18 insulated solid copper wire pre-installed in the
loadside terminal
•
Order catalog number HLR-2L to obtain 6 inches of black
#18 insulated solid copper wire packaged loose
(uninstalled)
•
An alternative to the HLR fuse holder is the “A” fuse
holder. The “A” fuse holder comes WITHOUT leads. The
customer inserts #18 insulated solid copper wire into the
lineside and the loadside terminals. The “A” fuse holder
has the same body dimensions, utilizes the same
mounting hole, and takes the same mounting clips as the
HLR, HLR-2A and HLR-2L
•
Do not put tension on the fuse holder’s lineside terminal
GLR fuse catalog numbers
Fuse (amps)
GLR-3/16
GLR-1-6/10
GLR-1/2
GLR-2
GLR-1
GLR-3
GLR-1-1/2 GLR-4
GLR-5
GLR-6
GLR-7
GLR-8
GLR-9
GLR-10
GLR-12
GLR-15*
* Must be used with the HLR-2A holder rated to 15A.
HLR fuse holder catalog numbers
Catalog No. Description
Holder with installed linseide
HLR
terminal wire for 3/16 to 12 amp
GLR fuses
Holder with installed lineside and
HLR-2A
loadside terminal wires for 3/16 to
15 amp GLR fuses
Holder with uninstalled lineside
and loadside terminal wires for
HLR-2L
3/16 to 15 amp GLR fuses
Holder without lineside or loadside
A
termianl wires for for 3/16 to 15
amp GLR fuses
Effective
August
2017
Technical Data
2032
GLR (fuse) HLR (fuse holder)
Non-rejecting, fast-acting fuse and in-line fuse holders
Time-current characteristic curves — average melt

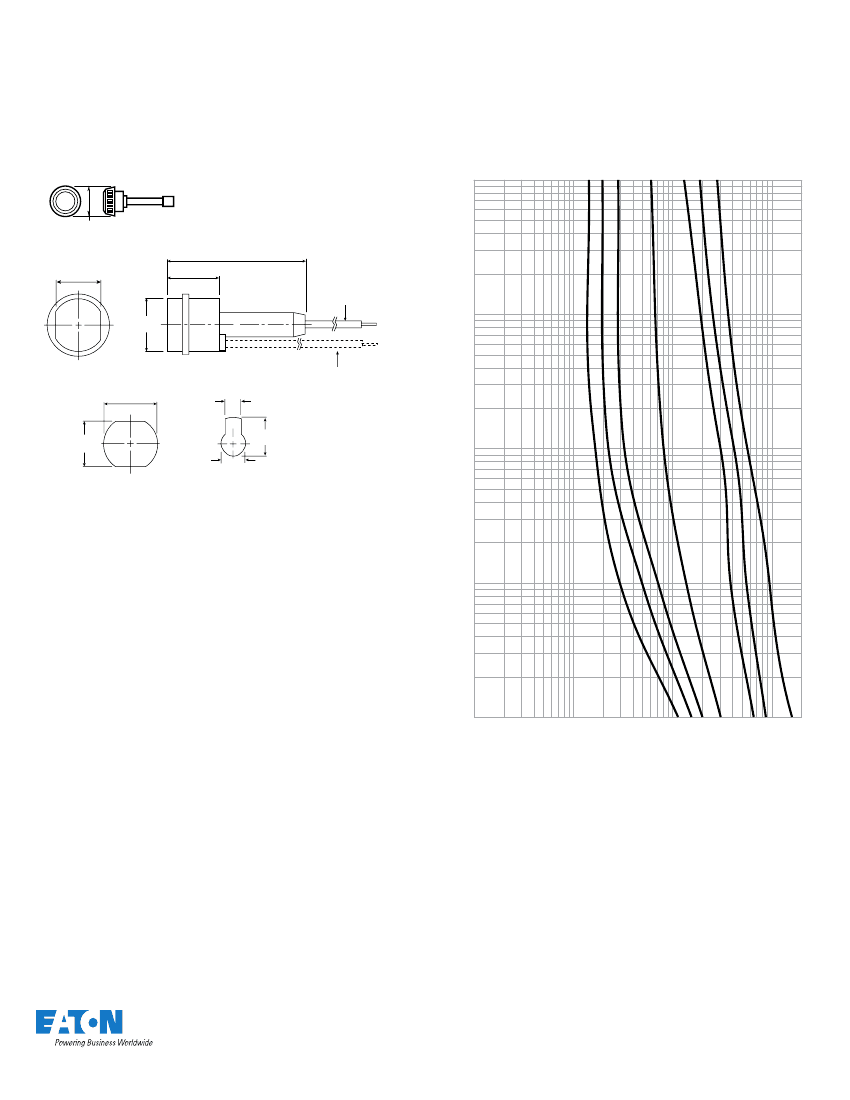

Dimensions - in (mm):
1
1.5
7
10
GLR fuse
Amp
15
2
5
100
rating
0.63" (15.9)
HLR fuse holder
0.720” (18.3)
2.250” (57.1)
0.850” (21.6)
Lineside terminal lead
0.850” 21.6)
C
L
10
Mounting holes
0.870” (22.1)
0.255” (6.5)
Loadside terminal lead
0.740” 18.8)
0.410” (10.4)
Knockout hole
0.635” (16.1)
Time in seconds
1
Keyhole punch
0.1
0.1
100
Current in amps
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
2032
BU-MC15051
August
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
200
10
1
0.01
