BK/GMA-V-315-R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GMA-V-315-R

Preview

BK/GMA-V-315-R: DescriptionElectric Fuse, Fast Blow, 0.315A, 35A (IR), 5x20mm,; CategoryCircuit protection Circuit protection; File Size290KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/GMA-V-315-R Overview

Electric Fuse, Fast Blow, 0.315A, 35A (IR), 5x20mm,

BK/GMA-V-315-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Fusing characteristics	FAST
body height	21.1 mm
Body length or diameter	5.54 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
physical size	5.54mm x 21.1mm
Rated breaking capacity	35 A
Rated current	0.315 A
Rated voltage	250 V
Guideline	CSA, UL
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

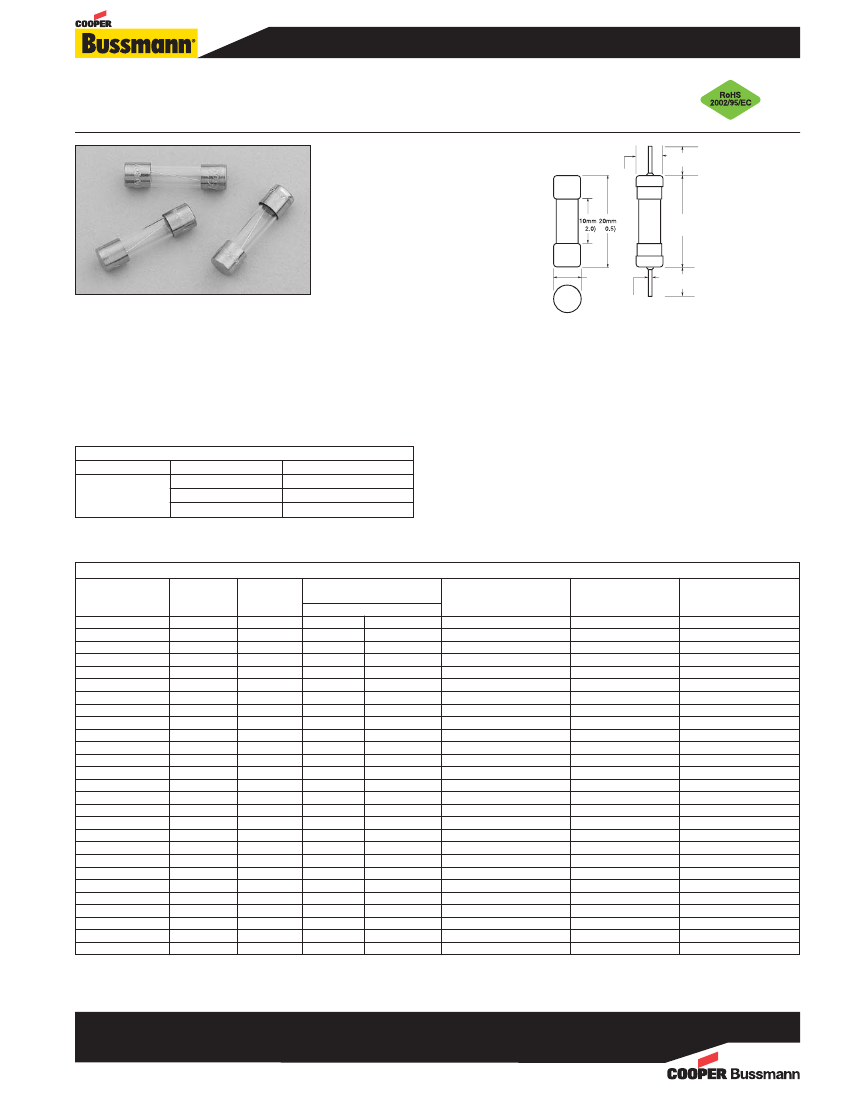

5 x 20mm Fast-acting Glass Tube Fuses

GMA Series

Dimensions - mm

5.54mm

(±.20)

38.10mm

10

(±.38)

±

.3

(±

21.10mm

0m

(±.81)

81

5.2mm

(+0.1/-0.2)

0.65mm

(REF)

38.10mm

0m

(±.3

38)

Description

• Fast-acting, low breaking capacity

• Optional axial leads available

• 5 x 20mm physical size

• Glass tube, silver-plated (63mA-315mA) and nickel-

plated (500mA-15A) brass endcap construction

• Designed to UL/CSA 248-14

Electrical Characteristics

Rated Current % of Amp Rating

Opening Time

100%

None

63mA - 15A

135%

60 minutes maximum

200%

2 minutes maximum

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

Agency Information

UL Listed, Guide JDYX, File E19180, 63mA-6A

UL Recognized, Guide JDYX2, File E19180, 7-15A

CSA Certified, Class 1422-01, File 53787, 63mA-6A

PSE Approval, 1A-15A

•

Ordering

• Specify packaging, product, and option code

Specifications

Product Code

GMA-63-R

GMA-100-R

GMA-125-R

GMA-200-R

GMA-250-R

GMA-300-R

GMA-315-R

GMA-500-R

GMA-600-R

GMA-750-R

GMA-800-R

GMA-1-R

GMA-1.25-R

GMA-1.5-R

GMA-1.6-R

GMA-2-R

GMA-2.5-R

GMA-3-R

GMA-3.15-R

GMA-3.5-R

GMA-4-R

GMA-5-R

GMA-6-R

GMA-7-R

GMA-8-R

GMA-10-R

GMA-15-R

*

**

†

‡

Amp

Rating

63mA

100mA

125mA

200mA

250mA

300mA

315mA

500mA

600mA

750mA

800mA

1

1.25

1.5

1.6

2

2.5

3

3.15

3.5

4

5

6

7

8

10

15

Voltage

Rating

Vac

250

125

Interrupting

Rating (amps)*

250Vac

125Vac

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

-

10,000

-

10,000

-

10,000

-

10,000

-

10,000

-

200

-

200

-

200

-

150

Typical DC Cold

Resistance

Ω

(Ω)**

15.750

7.840

4.895

2.500

1.735

0.906

0.839

0.454

0.256

0.186

0.170

0.163

0.122

0.090

0.080

0.066

0.046

0.039

0.036

0.030

0.026

0.021

0.017

0.012

0.009

0.006

0.004

Typical

Pre-Arc I

2

t

Vac†

0.00024

0.0001

0.0024

0.001

0.018

0.019

0.15

0.32

0.47

0.70

0.48

0.84

1.6

2.0

3.1

4.9

8.8

9.7

13

19

29

45

150

280

950

Maximum

Voltage

Drop (mV)‡

4700

4300

2600

3400

2200

470

450

230

200

180

300

290

270

260

250

240

215

210

205

200

180

110

100

Interrupting ratings: Interrupting ratings for 63mA - 6A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 15A were measured at 100% power factor on AC.

DC Cold Resistance (Measured at <10% of rated current)

Typical Pre-Arching I

2

t (I

2

t was measured at listed interrupting rating and rated voltage)

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)

0410

BU-SB091174

Page 1 of 2

Data Sheet 2017

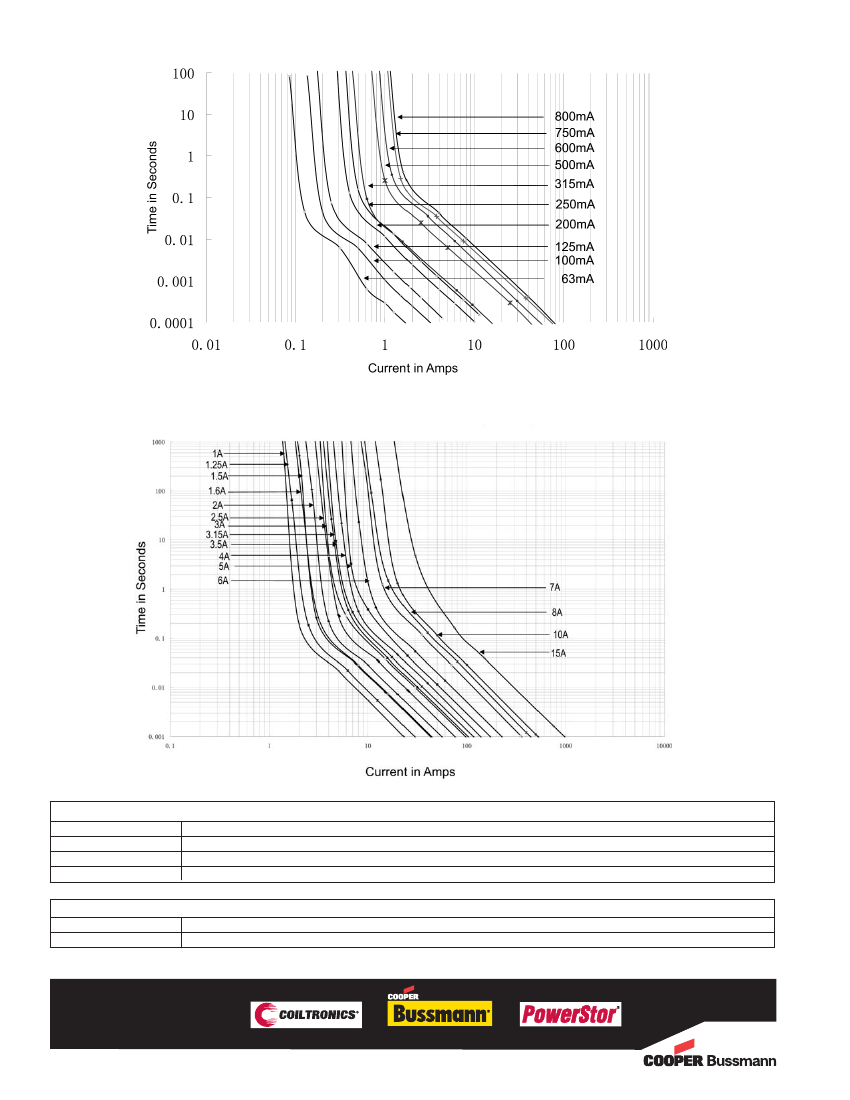

BK/GMA-V-315-R Related Products

	BK/GMA-V-315-R	GMA-3.15-R	BK/GMA-V-125-R	BK/GMA-V-2.5-R	BK/GMA-3A	GMA-1.25-R	BK/GMA-V-1-R	BK/GMA-V-4-R
Description	Electric Fuse, Fast Blow, 0.315A, 35A (IR), 5x20mm,	Electric Fuse, Fast Blow, 3.15A, 125VAC, 10000A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Fast Blow, 0.125A, 35A (IR), 5x20mm,	Electric Fuse, Fast Blow, 2.5A, 100A (IR), 5x20mm,	Electric Fuse, Fast Blow, 3A, 100A (IR), 5x20mm,	Electric Fuse, Fast Blow, 1.25A, 250VAC, 100A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Fast Blow, 1A, 35A (IR), 5x20mm,	Electric Fuse, Fast Blow, 4A, 10000A (IR), 5x20mm,
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	conform to	conform to	conform to
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	21.1 mm	20 mm	21.1 mm	21.1 mm	20 mm	20 mm	21.1 mm	21.1 mm
Body length or diameter	5.54 mm	5 mm	5.54 mm	5.54 mm	5.2 mm	5 mm	5.54 mm	5.54 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	Electric Fuse	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm
physical size	5.54mm x 21.1mm	5mm x 20mm	5.54mm x 21.1mm	5.54mm x 21.1mm	5.2mm x 20mm	5mm x 20mm	5.54mm x 21.1mm	5.54mm x 21.1mm
Rated breaking capacity	35 A	10000 A	35 A	100 A	100 A	100 A	35 A	10000 A
Rated current	0.315 A	3.15 A	0.125 A	2.5 A	3 A	1.25 A	1 A	4 A
Rated voltage	250 V	125 V	250 V	250 V	250 V	250 V	250 V	125 V
Guideline	CSA, UL	CE; CSA; UL	CSA, UL	CSA, PSE, UL	CSA, UL	CE; CSA; UL	CSA, PSE, UL	CSA, PSE, UL
Terminal shape	PIN WIRE	END CAP	PIN WIRE	PIN WIRE	END CAP	END CAP	PIN WIRE	PIN WIRE
Factory Lead Time	12 weeks	12 weeks	12 weeks	12 weeks	-	12 weeks	12 weeks	12 weeks
JESD-609 code	e3	-	e3	e3	-	-	e3	e3
Terminal surface	Tin (Sn)	Nickel (Ni)	Tin (Sn)	Tin (Sn)	-	Nickel (Ni)	Tin (Sn)	Tin (Sn)
