E5M3BBC50-FREQ3: DescriptionQUARTZ CRYSTAL RESONATOR, 120.001 MHz - 150 MHz, ROHS COMPLIANT PACKAGE-2; CategoryPassive components Crystal/resonator; File Size121KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

E5M3BBC50-FREQ3 Overview

QUARTZ CRYSTAL RESONATOR, 120.001 MHz - 150 MHz, ROHS COMPLIANT PACKAGE-2

E5M3BBC50-FREQ3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
Other features	AT-CUT CRYSTAL
Ageing	1 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 5TH OVERTONE
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	50 pF
Manufacturer's serial number	E5M
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	150 MHz
Minimum operating frequency	120.001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.9XB3.2XH6.0 (mm)/L0.311XB0.126XH0.236 (inch)
Series resistance	100 Ω
surface mount	NO
Terminal surface	Gold (Au)

Preview

Download Datasheet

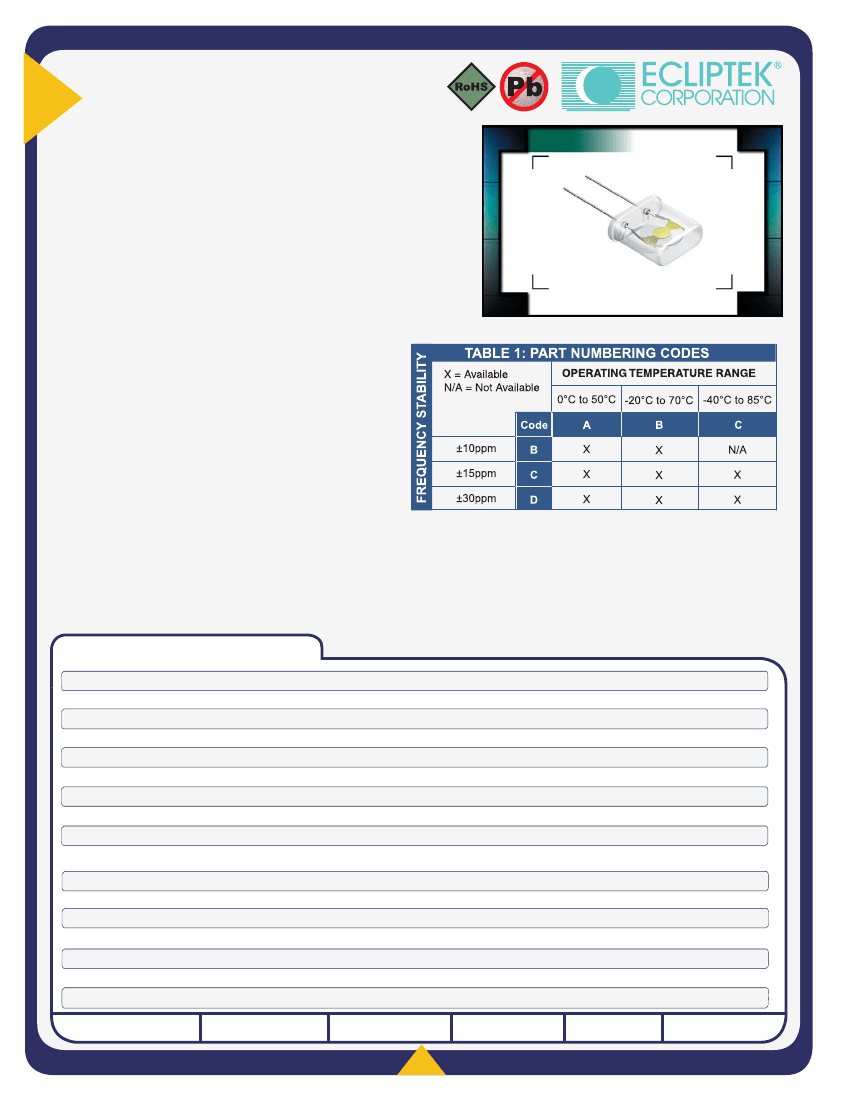

E5M

Series

• RoHS Compliant (Pb-Free)

• UM-5 package

• AT cut

• Tight tolerance/stability

• Frequencies to 150.000MHz available

NOTES

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

E5M

H

L

W

6.0

7.9

3.2

CRYSTAL

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Aging (at 25°C)

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Load Capacitance (C

L

)

10.000MHz to 150.000MHz

±10ppm or ±15ppm

Per Table 1

Per Table 1

±1ppm / year Maximum

-55°C to 125°C

7pF Maximum

500 Megaohms Minimum at 100V

DC

8pF Parallel Resonant to 50pF Parallel Resonant, or Series Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), CUT, AND DRIVE LEVEL

Frequency Range

10.000MHz to 15.999MHz

16.000MHz to 60.000MHz

30.000MHz to 150.000MHz

80.000MHz to 100.000MHz

100.001MHz to 120.000MHz

120.001MHz to 150.000MHz

MANUFACTURER

CATEGORY

ESR (Ω)

50 Maximum

40 Maximum

70 Maximum

150 Maximum

120 Maximum

100 Maximum

SERIES

Mode / Cut

Fundamental / AT

Fundamental / AT

Third Overtone / AT

Fifth Overtone / AT

Fifth Overtone / AT

Fifth Overtone / AT

PACKAGE

CLASS

Drive Level (µW)

50 Maximum

10 Maximum

100 Maximum

100 Maximum

100 Maximum

100 Maximum

REV

.

DATE

ECLIPTEK CORP.

CRYSTAL

E5M

UM-5

CR12

03/08

800-ECLIPTEK www.ecliptek.com for latest revision

Specifications subject to change without notice.
