EC1145HSETTTS-FREQ2-GTR-OUT29 datasheet, PDF

EC1145HSETTTS-FREQ2-GTR-OUT29: DescriptionCRYSTAL OSCILLATOR, CLOCK, 24.001 MHz - 66.667 MHz, HCMOS/TTL OUTPUT; CategoryPassive components oscillator; File Size158KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

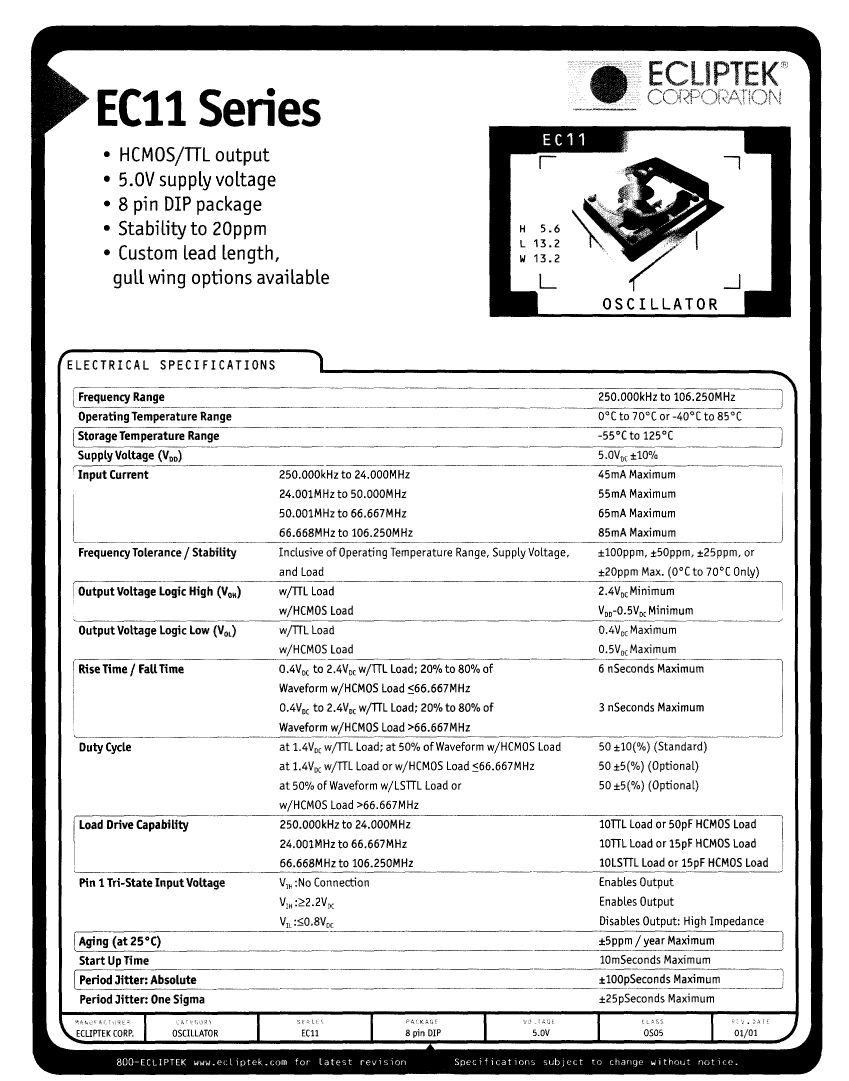

EC1145HSETTTS-FREQ2-GTR-OUT29 Overview

CRYSTAL OSCILLATOR, CLOCK, 24.001 MHz - 66.667 MHz, HCMOS/TTL OUTPUT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e3

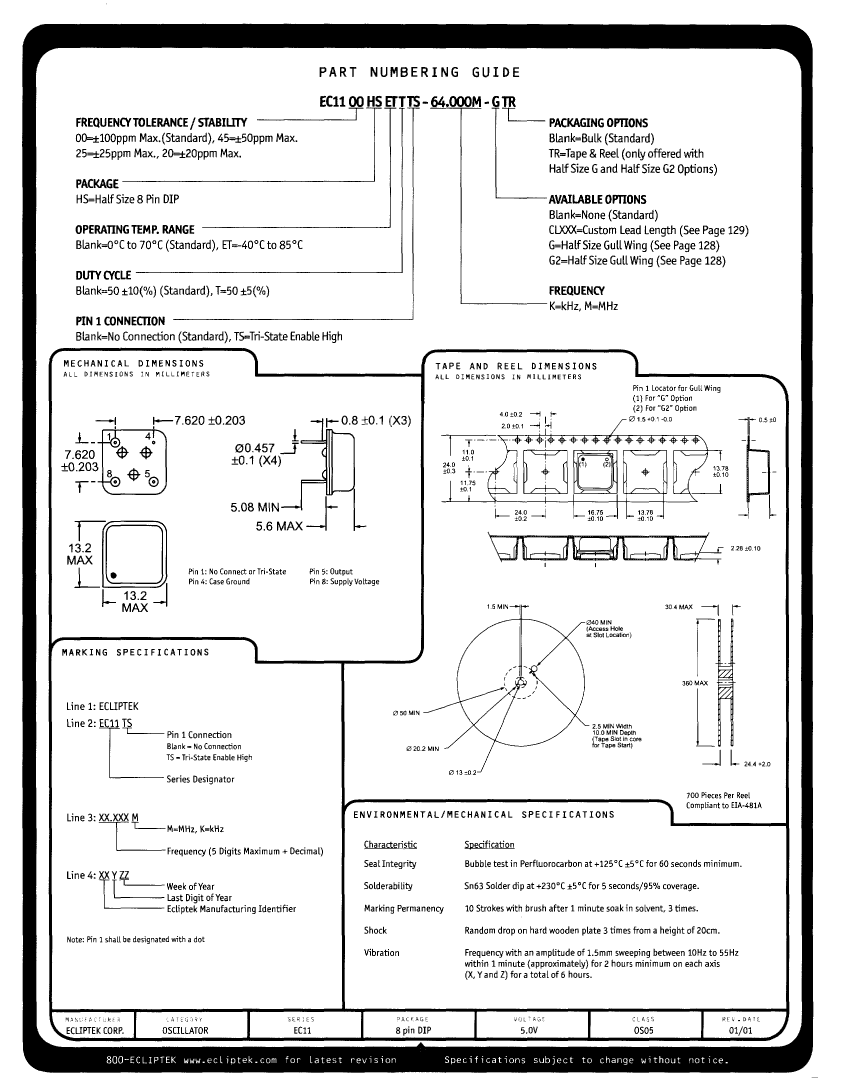

Manufacturer's serial number	EC11
Installation features	SURFACE MOUNT
Maximum operating frequency	66.667 MHz
Minimum operating frequency	24.001 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	13.2mm x 13.2mm x 5.6mm
longest rise time	6 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	52.5/47.5 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
