Marketing Bulletin
DATE:
TO:
FROM:
RE:
April 20
th
, 2010
All Sales Personnel
Isaac Gonzalez
Product Termination
To all concerned parties,
This bulletin is to notify all customers of the discontinuation of the following Ecliptek
series effective April 20
th
, 2010:
Series
EC13
Description
RoHS Compliant (Pb-free) 3.3V 14 Pin DIP
Metal Thru-Hole LVCMOS/TTL Oscillator
RoHS Compliant (Pb-free) 3.3V 8 Pin DIP Metal
Thru-Hole LVCMOS/TTL Oscillator
Recommended Replacement
EH13
EC13HS
EH13HS
In compliance with our End of Life (EOL) policy, this will serve as advanced notice of
product termination. New orders will not be accepted after September 1
st
, 2010, with
delivery to conclude by December 1
st
, 2010.
If there are any questions pertaining to this bulletin, please feel free to contact me.
Thank you again for your cooperation.
Best Regards,
Isaac Gonzalez
Configuration Manager
Ecliptek Corporation
3545 CADILLAC AVENUE
•
COSTA MESA, CA 92626-1401
•
(714) 433-1200
•
Fax (714) 433-1234

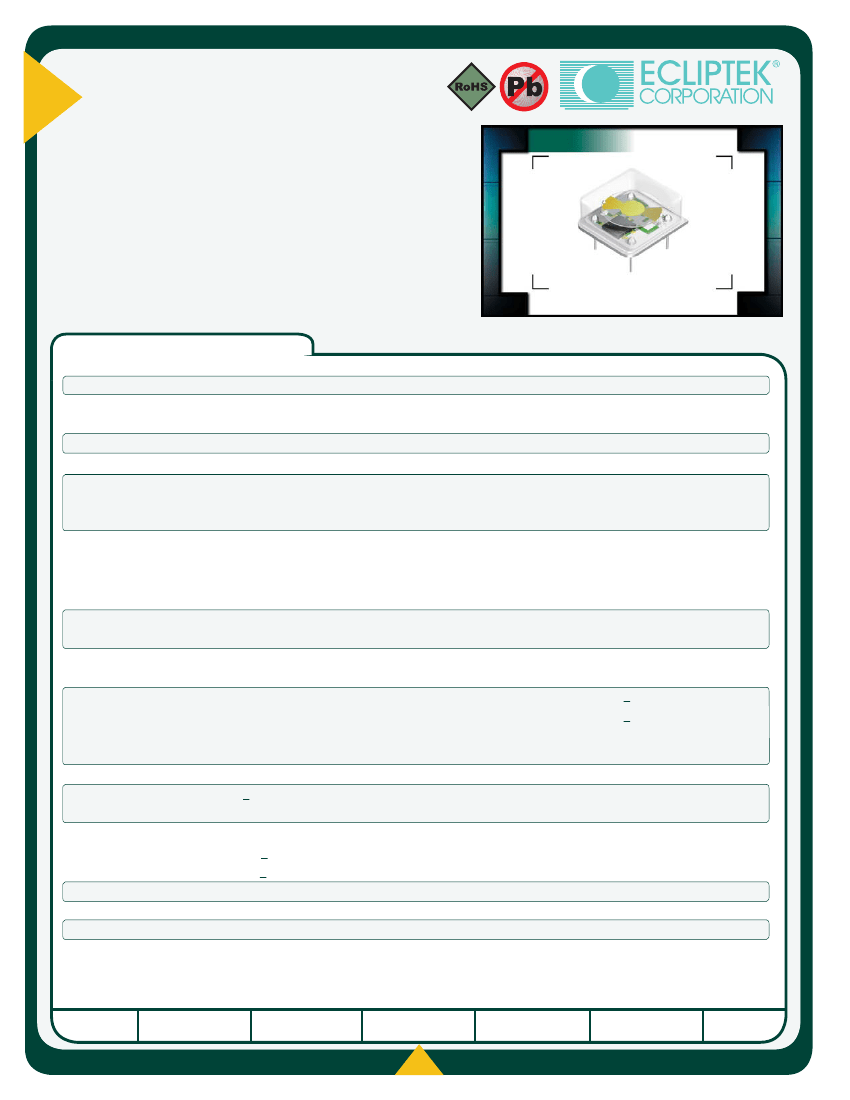

EC13
Series
• RoHS Compliant (Pb-free)
• LVCMOS/TTL output
• 3.3V supply voltage
• 8 pin DIP package
• Stability to ±20ppm
• Custom lead length,
gull wing options available
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz)
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
0.250MHz to 24.000MHz
24.001MHz to 70.000MHz
70.001MHz to 125.000MHz
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
w/ TTL Load
w/ HCMOS Load
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
w/ TTL Load
w/ LVCMOS Load
10% to 90% of Waveform w/LVCMOS Load or
0.4V
DC
to 2.4V
DC
w/TTL Load
10% to 90% of Waveform w/LVCMOS Load
10% to 90% of Waveform w/LVCMOS Load
Duty Cycle
Load Drive Capability
Tri-State Input Voltage
at 50% of Waveform
< 24.000MHz
> 24.000MHz
V
IH
:No Connection
V
IH
:>2.2V
DC
V
IL
:<0.8V
DC
Aging (at 25°C)
Start Up Time
Period Jitter: Absolute
Period Jitter: One Sigma
EC13
H 5.6
L 13.2
W 13.2
OSCILLATOR
0.250MHz to 125.000MHz
0°C to 70°C
-40°C to 85°C
-55°C to 125°C
3.3V
DC
±0.3V
DC
10mA Maximum
25mA Maximum
45mA Maximum
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum (0°C to 70°C Only)
2.4V
DC
Minimum
2.7V
DC
Minimum
0.4V
DC
Maximum
0.5V
DC
Maximum
10 nSeconds Max. < 24.000MHz
10 nSeconds Max. < 24.000MHz
6 nSeconds Max. 24.000MHz to 70.000MHz
4 nSeconds Max. 70.001MHz to 125.000MHz
50 ±10(%) (Standard) or 50 ±5(%) (Optional)
2TTL or 15pF LVCMOS Load
15pF LVCMOS Load
Enables Output
Enables Output
Disables Output: High Impedance
±5ppm / year Maximum
10 mSeconds Maximum
±100pSeconds Maximum
±25pSeconds Maximum
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC13
8 pin DIP
3.3V
OS21
08/06
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EC13 00 HS ET T TS - 50.000M - G TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum (Standard)
45=±50ppm Maximum, 25=±25ppm Maximum
20=±20ppm Maximum
PACKAGE
HS=Half Size 8 Pin DIP
OPERATING TEMP. RANGE
Blank=0°C to 70°C (Standard), ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) (Standard), T=50 ±5(%)
PACKAGING OPTIONS
TR= Tape & Reel (only offered with
Half Size G and Half Size G2 Options)
AVAILABLE OPTIONS
Blank=None (Standard)
CLXXX=Custom Lead Length
G=Half Size Gull Wing
G2=Half Size Gull Wing
FREQUENCY
OUTPUT CONTROL FUNCTION
Blank=None (No Connection on Pin 1)
TS=Tri-State Enable High

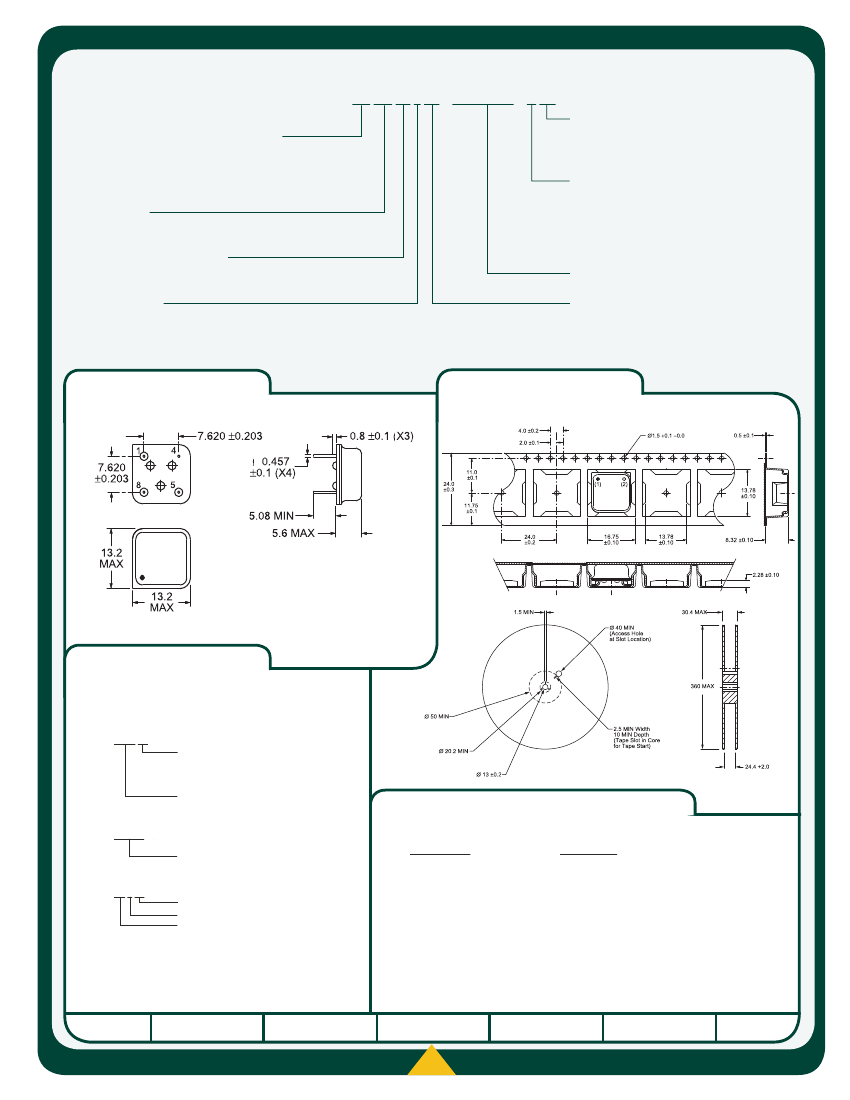

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1 Locator for Gull Wing
(1) For “G” Option
(2) For “G2” Option
Ø
Ø
Pin 1: No Connect or Tri-State
Pin 4: Case Ground
Pin 5: Output
Pin 8: Supply Voltage
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: EC13 TS
Output Control Function
Blank = None (No Connection on Pin 1)
TS = Tri-State Enable High
250 Pieces Per Reel
Compliant to EIA-481A
Series Designator
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Line 3: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC13
8 pin DIP
3.3V
OS21
08/06
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
