HMC0402JT30M0

Description
Fixed Resistor, Metal Glaze/thick Film, 0.063W, 30000000ohm, 50V, 5% +/-Tol, 400ppm/Cel, Surface Mount, 0402, CHIP
CategoryPassive components    The resistor
File Size128KB,4 Pages
ManufacturerSEI(Stackpole Electronics Inc.)
Websitehttps://www.seielect.com/
Environmental Compliance
Download Datasheet Parametric View All

HMC0402JT30M0 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 30000000ohm, 50V, 5% +/-Tol, 400ppm/Cel, Surface Mount, 0402, CHIP

HMC0402JT30M0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSMT, 0402
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time13 weeks
structureRectangul
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.35 mm
Package length1 mm
Package formSMT
Package width0.5 mm
method of packingTR, Paper, 7 Inch
Rated power dissipation(P)0.063 W
Rated temperature70 °C
resistance30000000 Ω
Resistor typeFIXED RESISTOR
size code0402
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient400 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrie
Terminal shapeWRAPAROUND
Tolerance5%
Operating Voltage50 V
Base Number Matches1
HMC Series
High Value Thick Film Chip Resistor
Features:
Stackpole Electronics, Inc.
Resistive Product Solutions
R Value extension of RMCF product
Highly stable performance over time

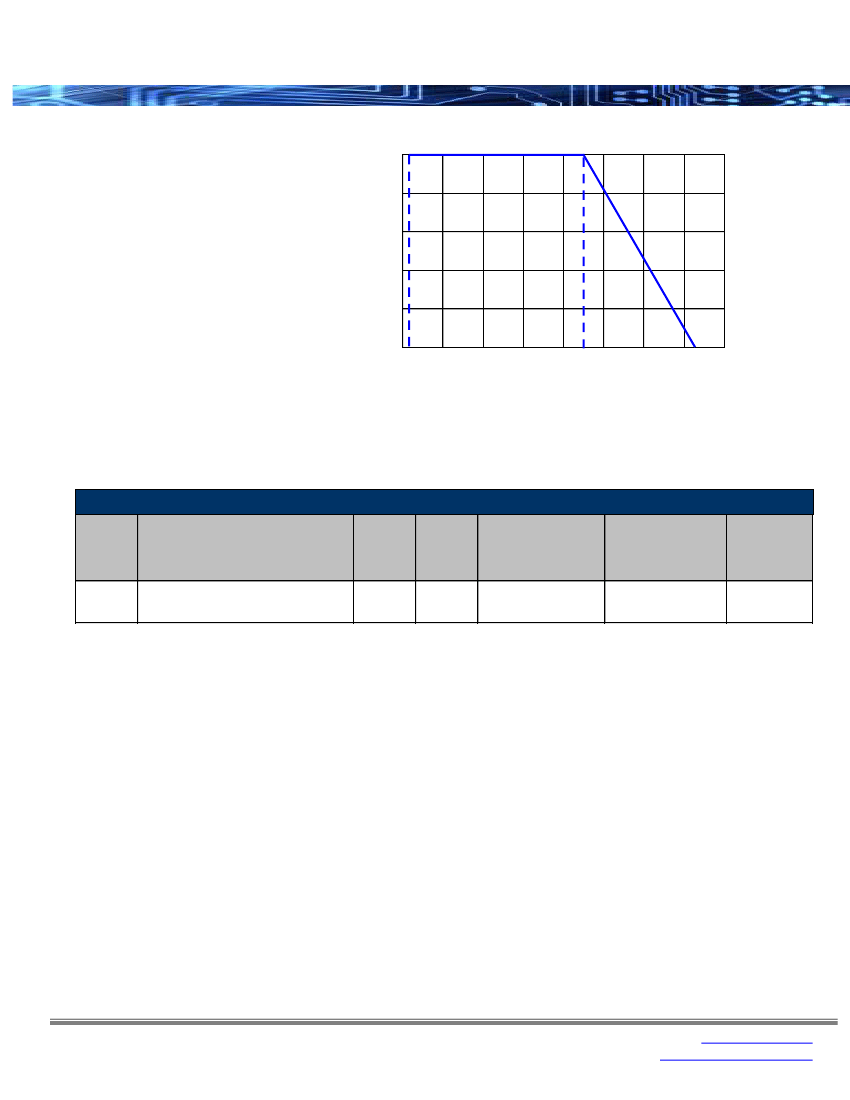

Power derating from 100% at 70ºC to zero at 125ºC
E12 and E24 values
Nickel barrier terminations
RoHS compliant and halogen free
Electrical Specifications
Type / Code
Power Rating
(Watts) @
70ºC
0.063W
Maximum
Working
(1)
Voltage
50V
Maximum
Overload
Voltage
100V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
±500 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
HMC0805
0.125W
150V
300V
±500 ppm/ºC
±1000 ppm/ºC
±1500 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
HMC1206
0.25W
200V
400V
±500 ppm/ºC
±1000 ppm/ºC
±1500 ppm/ºC
HMC1210
HMC2010
HMC2512
0.33W
0.75W
1W
200V
200V
250V
400V
400V
500V
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
11M - 20M
-
22M - 100M
11M - 20M
22M - 100M
11M - 20M
22M - 100M
-
11M - 20M
22M - 100M
-
Ohmic Range (Ω) and Tolerance
1%
11M - 20M
11M - 20M
22M - 100M
-
11M - 20M
22M - 100M
30M - 100M
110M - 1G
-
33M - 100M
110M - 500M
510M - 1G
1.2G - 10G
-
30M - 100M
110M - 500M
510M - 1G
1.2G - 10G
11M - 20M
5%
-
22M - 100M
-
30M - 100M
110M - 4.7G
10%
HMC0402
HMC0603
0.1W
50V
100V
(1) Lesser of √PR or maximum working voltage.
Performance Characteristics
Test
Long Term Stability
High Temperature Loading
Resistance to Solder Heat
Short Time Overload
Voltage Coefficient of Resistance
Operating Temperature Range:
-55ºC to +125ºC
Test Conditions (JIS C 5202)
Nominal temperature & humidity for 1,000 hrs.
15VDC, 1.5 hr. ON, 0.5 hr. OFF, 1,000 hrs. 70ºC
260ºC ± 5ºC, 10 seconds +1/-0
5 seconds at maximum overload voltage
Per JIS C 5202
Test Results
± 0.5%
± 3%
± 1%
± 2%
± 0.5%/V
Rev Date: 02/05/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
