EPS13D2C1JA-FREQTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EPS13D2C1JA-FREQTR

EPS13D2C1JA-FREQTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 14.318 MHz - 166 MHz, HCMOS OUTPUT; CategoryPassive components oscillator; File Size141KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EPS13D2C1JA-FREQTR Overview

CRYSTAL OSCILLATOR, CLOCK, 14.318 MHz - 166 MHz, HCMOS OUTPUT

EPS13D2C1JA-FREQTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
maximum descent time	2.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	EPS13D2
Installation features	SURFACE MOUNT
Maximum operating frequency	166 MHz
Minimum operating frequency	14.318 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7mm x 5mm x 1.6mm
longest rise time	2.7 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EPS13D2

Series

• RoHS Compliant (Pb-Free)

• EPS

™

Spread Spectrum Programmable Clock Oscillators

• Ceramic 4-pad SMD Package

• Low EMI LVHCMOS Output

• 3.3V Supply Voltage

• Stability to 100ppm

• Center Spread and Down Spread Modulation

• Tri-State and Power Down Options Available

• Available on Tape & Reel

ELECTRICAL SPECIFICATIONS

Nominal Frequency

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Maximum Supply Voltage

Input Current

Frequency Tolerance / Stability

EPS13D2

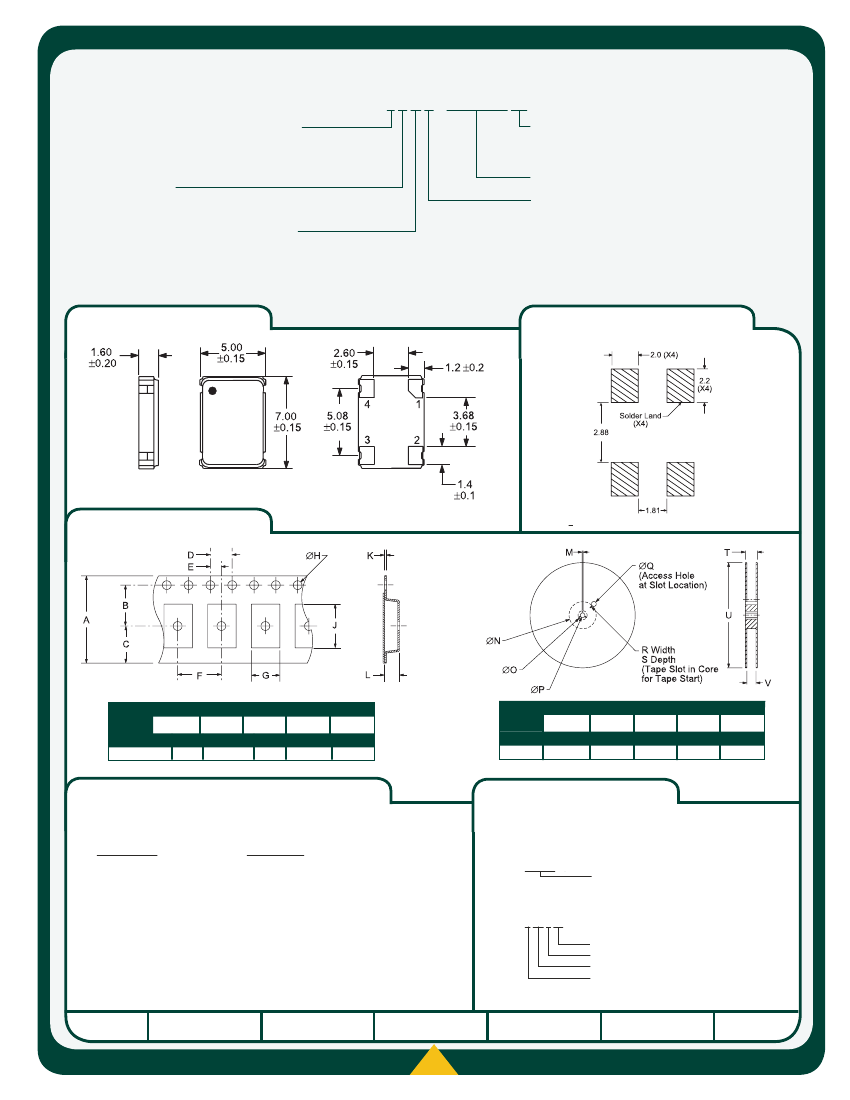

1.6

7.0

5.0

OSCILLATOR

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Output Control Function

Tri-State/Power Down Input Voltage

Unloaded; V

= 3.3V

Inclusive of All Conditions: Frequency Stability over the

Operating Temperature Range, Supply Voltage Change,

Output Load Change, 1st Year Aging at 25°C, Shock, and

Vibration

= -8mA

= +8mA

20% to 80% of waveform

at 50% of waveform

14.318MHz to 166.000MHz

-20°C to 70°C

-55°C to 125°C

3.3V

±0.3V

-0.5V

to 7.0V

30mA Maximum

±100ppm Maximum

Power Down Output Disable Time

Power Down Output Enable Time

Standby Current

Tri-State Output Disable Time

Tri-State Output Enable Time

Disable Current

Spread Spectrum Percentage

Modulation Frequency

Period Jitter

Aging

Start Up Time
