86119ZSG

Description
RF SSMA Connector, Male, Cable Mount, Plug
CategoryThe connector    The connector
File Size109KB,1 Pages
ManufacturerMidwest Microwave
Download Datasheet Parametric Compare View All

86119ZSG Overview

RF SSMA Connector, Male, Cable Mount, Plug

86119ZSG Parametric

Parameter NameAttribute value
MakerMidwest Microwave
Reach Compliance Codeunknow
ECCN codeEAR99
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SSMA CONNECTOR
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number86119
Installation methodSTRAIGHT
Installation typeCABLE
OptionsGENERAL PURPOSE
Panel mountingNO
DESC*

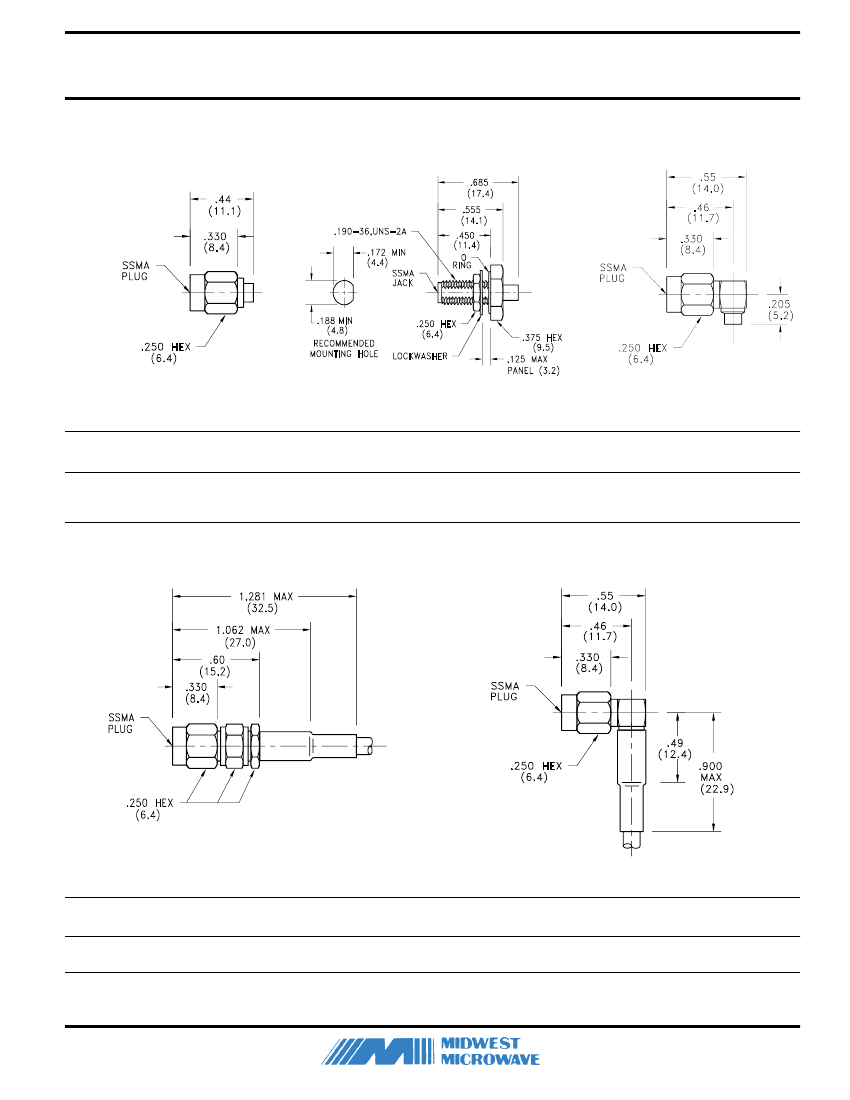

SSMA Connectors-Semi-Rigid & Flexible Cable
NON-CAPTURED CENTER CONTACT
FIGURE 1
DESC
PART NO.
86116ZSG
86117ZSG
86118ZSG
MIDWEST
PART NO.
SSM-0085-79-001-02
SSM-0085-83-001-00
SSM-0085-80-001-02
FIGURE 2
ASSEMBLY
PROCEDURE
SSM-003
SSM-005
SSM-004
CABLE
TYPE
XII
XII
XII
FIGURE 3
COMMERCIAL
ALTERNATE
SSM-0085-79-000-02
SSM-0085-83-000-00
SSM-0085-80-000-02
FIGURE
1
2
3
CAPTURED CENTER CONTACT
FIGURE 4
DESC
PART NO.
86119ZSG
86120ZSG
MIDWEST
PART NO.
SSM-3188-55-001-02
SSM-3188-56-001-02
ASSEMBLY
PROCEDURE
SSM-006
SSM-007
FIGURE 5
CABLE
TYPE
II, XIV
II, XIV
COMMERCIAL
ALTERNATE
SSM-3188-55-000-02
SSM-3188-56-000-02
FIGURE
4
5
Notes:
1. * Defense Electronic Supply Center, Dayton, Ohio
2. See Appendix for description of connector interfaces .
269
