621-M37-360-BT1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 621-M37-360-BT1

621-M37-360-BT1: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

621-M37-360-BT1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	621-M37-360-BT1	-	-	View	Buy Now

621-M37-360-BT1 Overview

D Subminiature Connector,

621-M37-360-BT1 Parametric

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR

Preview

Download Datasheet

View All

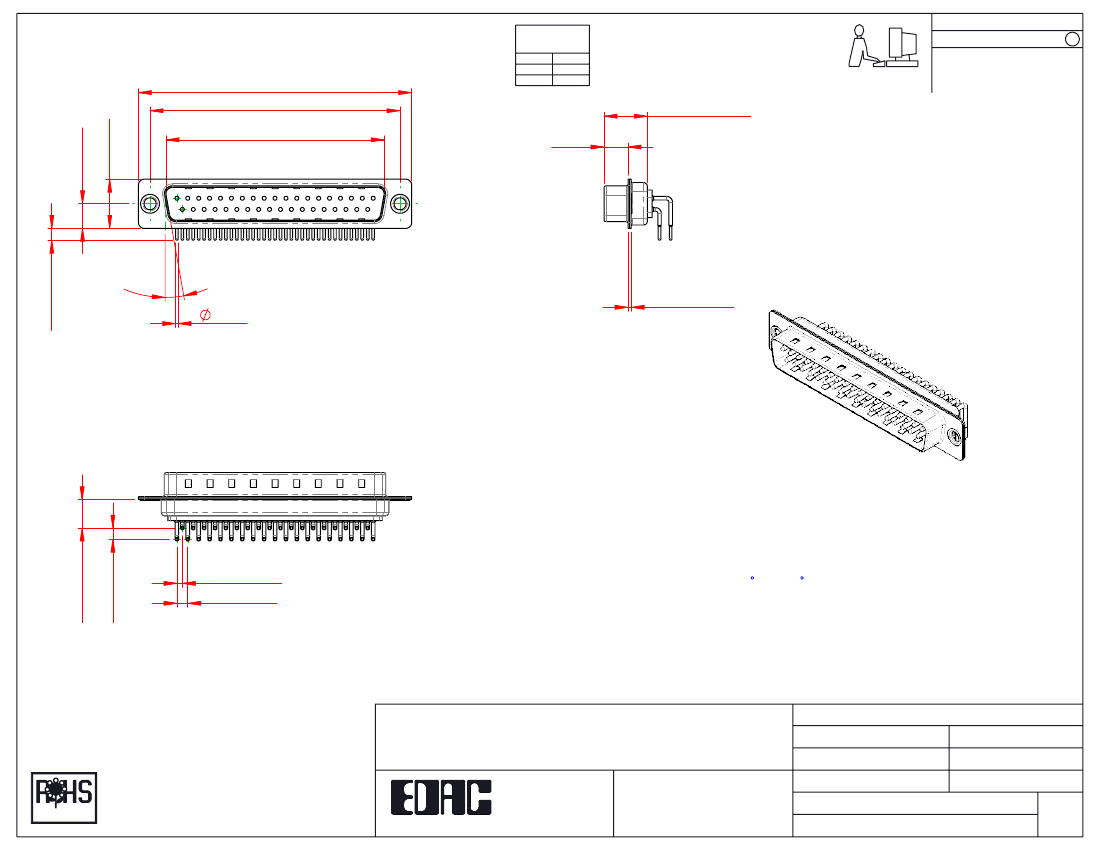

UNLESS OTHERWISE

SPECIFIED

TOLERANCE

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

ISSUE NUMBER

ORIGINAL

69.40

63.50

12.50

6.25

55.40

.XX

.XXX

±0.25

±0.13

±0.10

11.0

±0.3

6.10

+0.50

- 0.30

3.00

10°

0.65

0.80

NOTES:

MATERIAL:

HOUSING: PA6T, UL94V-0

SHELL: STEEL, Sn or Ni PLATED

CONTACT: PRECISION MACHINED COPPER ALLOY

SEE ORDERING GUIDE FOR CONTACT PLATING

7.20

±0.30

2.84

±0.30

1.385

2.77

OPERATING TEMPERATURE: -55 C ~ 125 C

CURRENT RATING: 5A PER CONTACT

CONTACT RESISTANCE: 10mΩ MAX.

INSULATOR RESISTANCE: 5000MΩ min.

DIELECTRIC

WITHSTANDING VOLTAGE: 1000V AC rms

SW REFERENCE NO.:

621M ASSEMBLY

DATE:

SHEET

AUG. 01/2018

621M SERIES D-SUB CONNECTOR

THIS SERIES FULLY CONFORMS TO

THE EUROPEAN UNION DIRECTIVES

COMPLIANT

2011/65/EU FOR RoHS COMPLIANCY.

EDAC INC

TORONTO, ONTARIO

CANADA

YOUR CONNECTION TO QUALITY & SERVICE

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

DRAWN:

CHECKED:

SCALE:

C.B

1:1

ISSUE

DRAWING NUMBER:

PART NUMBER:

621-M37-360-BT1
