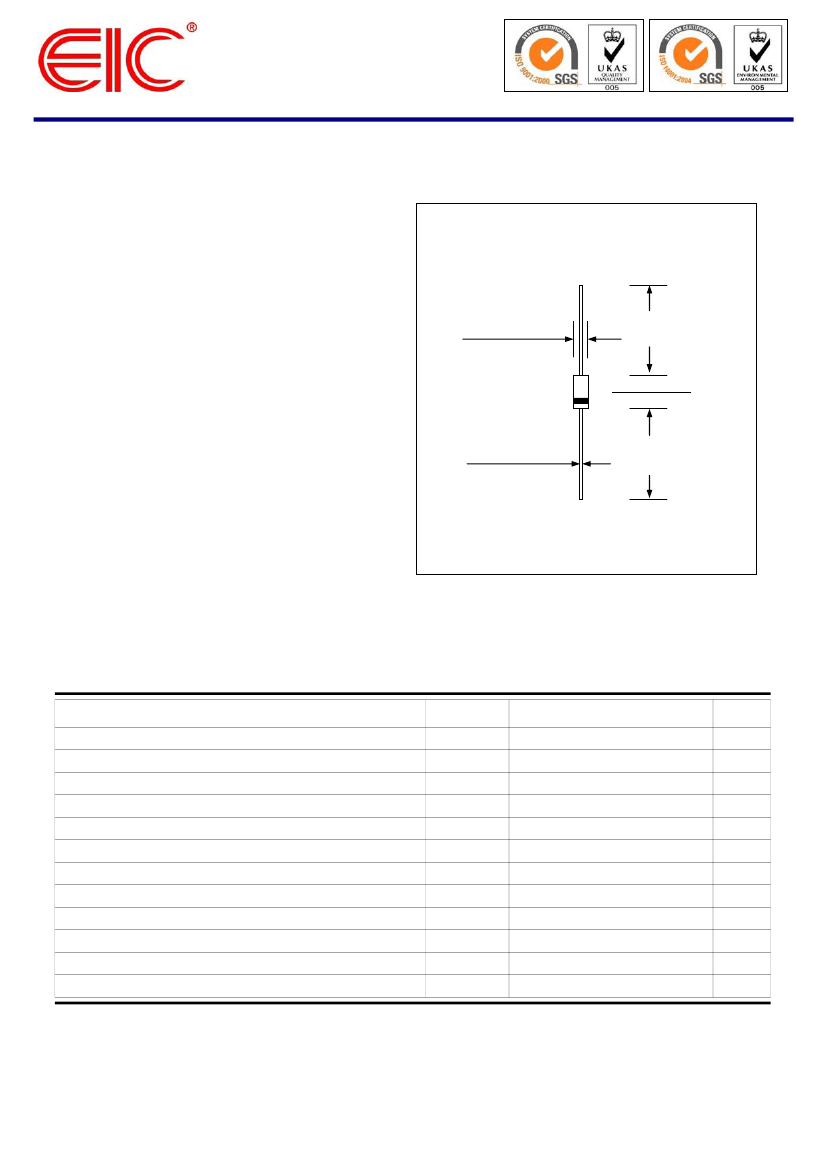

BY584
PRV : 1800 Volts
I
F(AV)
: 100 mA
FEATURES :
*
*
*
*
*
*
*
*
Glass passivated junction chip
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Pb / RoHS Free
HIGH VOLTAGE SOFT-RECOVERY
RECTIFIER DIODE
DO - 41
0.108 (2.74)
0.079 (1.99)
1.00 (25.4)
MIN.
0.205 (5.20)
0.166 (4.20)
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum Working Reverse Voltage
Maximum Non-Repetitive Peak Forward Voltage
Maximum Average Forward Current (Note 1)
Maximum Non-Repetitive Peak Forward Surge Current
Maximum Repetitive Peak Forward Current
Maximum Forward Voltage at 100 mA , Tj=Tj max.
Maximum Reverse Current at Reverse Voltage
Maximum Reverse Recovery Time (Note 2)
Thermal Resistance - Junction to Ambient
Junction Temperature Range
Storage Temperature Range
Notes :
(1) Ttp = 25
°
C, Lead Length 10 mm.
(2) Measured with I
F
= 100 mA, to V
R
≥
100V
SYMBOL
V
RRM
V
RW
V
RSM
I
F(AV)
I
FSM
I
FRM
V
F
I
R
Trr
R
ӨJA
T
J
T
STG
VALUE
1800
1500
1800
85
5.0
800
8.5
3.0
0.2
155
- 65 to + 120
- 65 to + 120
UNIT
V
V
V
mA
A
mA
V
μA
μs
K/W
°C
°C
Page 1 of 2
Rev. 04 : March 25, 2005
Certificate TH97/10561QM
Certificate TW00/17276EM

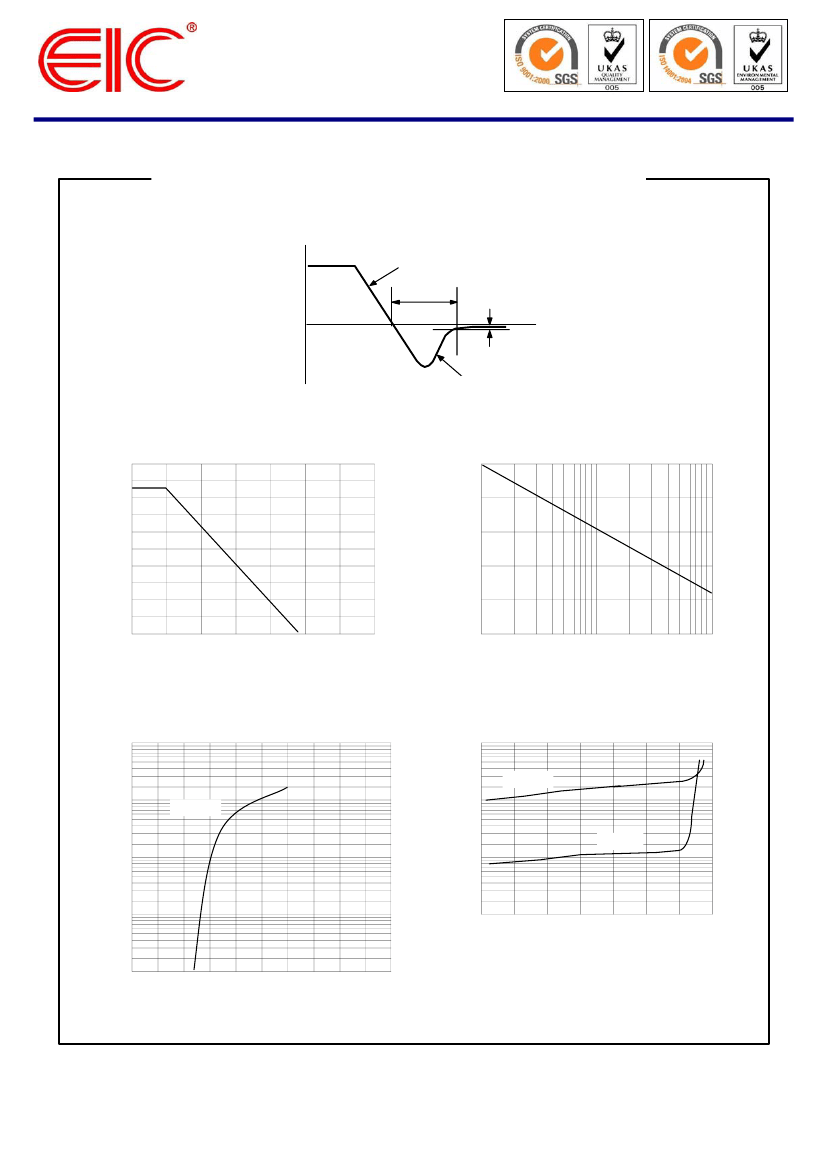

RATING AND CHARACTERISTIC CURVES ( BY584 )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC
I
F
dI
F
/dt
Trr
t
10 %
I
R
dI
R
/dt
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, mA
100
5.0
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
0
25
50
75
100
125
150
175
80
60
4.0
3.0
40
2.0
20
1.0
0
0
1
2
4
6
10
20
40
60
100
TIE-POINT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
1000
10
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
T
J
= 100
°C
FORWARD CURRENT, mA
100
T
J
= 120
°C
REVERSE CURRENT,
MICROAMPERES
1.0
T
J
= 25
°C
0.1
10
1.0
0.01
0
20
40
60
80
100
120
140
0.01
PERCENT OF RATED REVERSE
VOLTAGE, (%)
0
2.0
4.0
6.0
8.0
10
12
14
16
18
20
FORWARD VOLTAGE, VOLTS
Page 2 of 2
Rev. 04 : March 25, 2005
