SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
B4116
942,5 MHz
Ceramic package
DCC6C
Features
q
Low-loss RF filter for EGSM mobile telephone
system, receive path
q
Low amplitude ripple
q
Usable passband 35 MHz
q
Ceramic package for
Surface Mounted
Technology
(SMT)
Terminals
q
Ni, gold-plated
Dimensions in mm, approx. weight 0,037 g
Pin configuration
2
1
5
4
1, 3, 4, 6
1, 3, 4, 6
Input
Input ground
Output
Output ground
To be grounded
Case ground
Type
B4116
Ordering code
B39941-B4116-U410
Marking and Package
according to
C61157-A7-A67
Packing
according to
F61074-V8088-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Input power max.
880 ... 915 MHz
elsewhere
T
T
stg
V
DC
P
IN
– 20 / +75
– 40 / + 85
3
15
0
˚C
˚C
V
dBm
dBm
source and load impedance 50
Ω
peak power of GSM signal,
duty cycle 1 : 8
continuous wave
Preliminary format of data sheet.
Terms of delivery and rights to change design reserved.
Page 1 of 4
OFW E MF
Oct. 21, 1999
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B4116
942,5 MHz
T
= 25
±
2˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
942,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
925,0 ... 960,0
Amplitude ripple
(p-p)
925,0 ... 960,0
Attenuation
0,0
860,0
880,0
905,0
976,7
980,0
1005,0
1050,0
1500,0
... 860,0
... 880,0
... 905,0
... 915,0
... 980,0
...1005,0
...1050,0
...1500,0
... 3000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
C
α
max
MHz
∆α
—
—
2,5
3,4
dB
—
α
40
35
22
20
14
19
30
40
15
0,8
1,7
dB
48
42
30
29
19
23
37
44
25
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
Preliminary format of data sheet.
Terms of delivery and rights to change design reserved.
Page 2 of 4
OFW E MF
Oct. 21, 1999
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B4116
942,5 MHz
T
= -20 to +75 ˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
942,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
925,0 ... 960,0
Amplitude ripple
(p-p)
925,0 ... 960,0
Attenuation
0,0
860,0
880,0
905,0
976,7
980,0
1005,0
1050,0
1500,0
... 860,0
... 880,0
... 905,0
... 915,0
... 980,0
...1005,0
...1050,0
...1500,0
... 3000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
C
α
max
MHz
∆α
—
—
3,3
3,5
dB
—
α
40
35
22
10
14
18
30
40
15
1,6
1,8
dB
48
42
30
29
18
22
37
44
25
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
Preliminary format of data sheet.
Terms of delivery and rights to change design reserved.
Page 3 of 4
OFW E MF
Oct. 21, 1999
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet

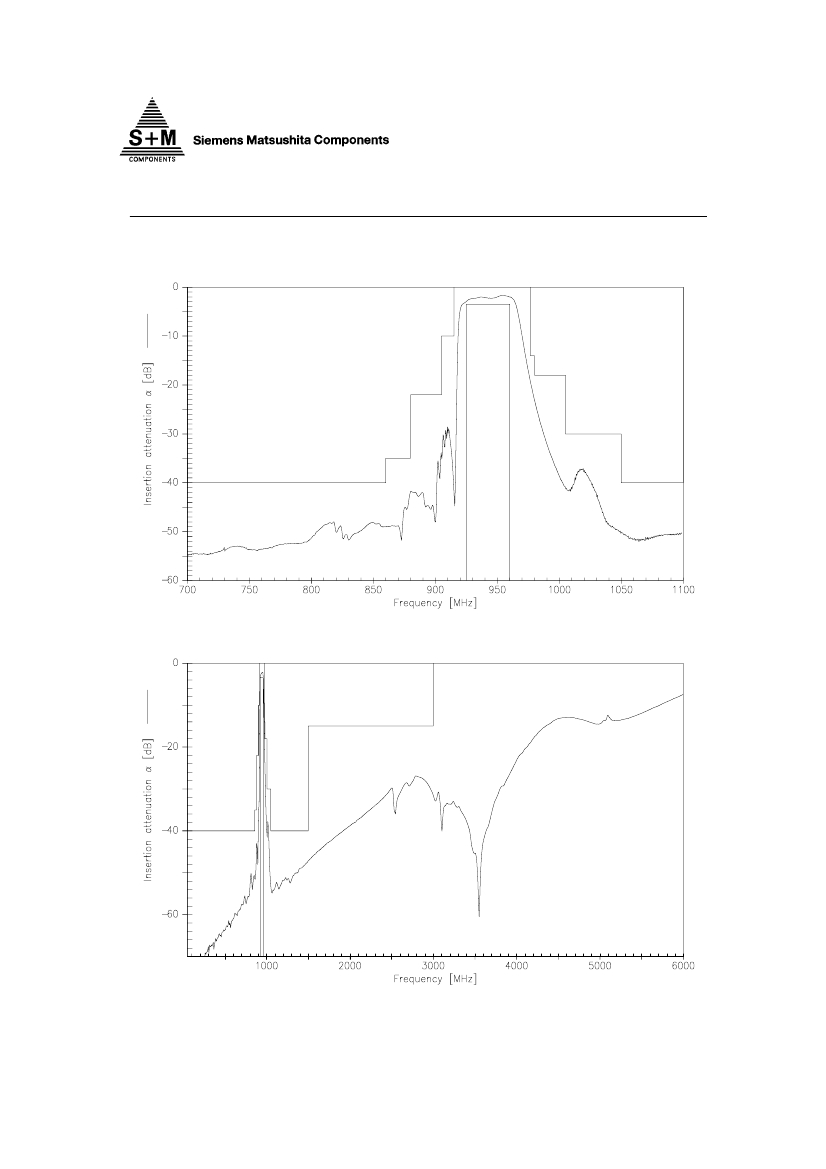

Transfer function
(measurement)
B4116
942,5 MHz
Transfer function
(wideband; measurement)
Preliminary format of data sheet.
Terms of delivery and rights to change design reserved.
Page 4 of 4
OFW E MF
Oct. 21, 1999
