374954: DescriptionRectangular Power Connector, 5 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374954 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374954	-	-	View	Buy Now

374954 Overview

Rectangular Power Connector, 5 Contact(s), Female, Solder Terminal,

374954 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

5,5

6,5

Ansaughaube

4,15

Verpackt in Gurtverpackung

Tape on Reel Packaging

hood

Packaging unit: 400 pcs

5,4

Verpackungseinheit: 400 Stück

6,6

0,5

0,8

0,75

0,7

0,6

3,8

5,1

330

Mitte Steckgesicht

center matingface

12,4

Abspulrichtung -

Reel off Direction

2,1

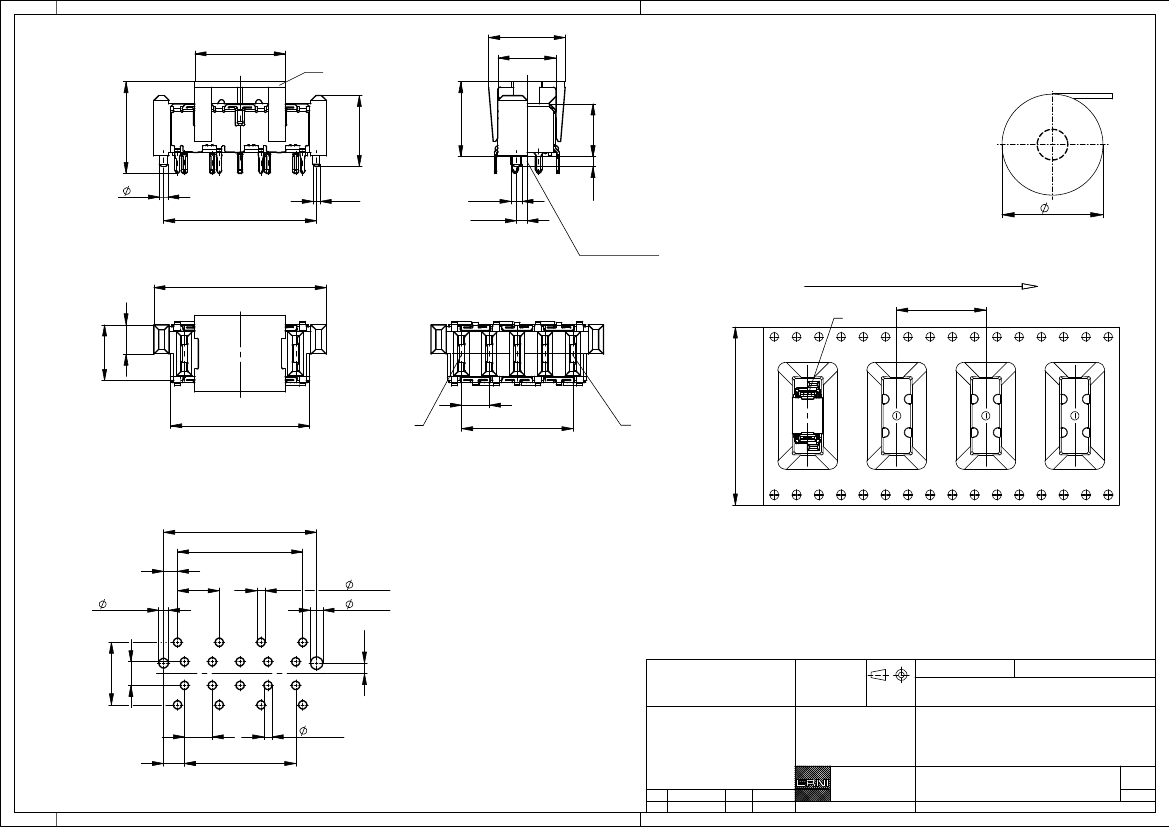

4x2=8

Anforderungsstufe 1

0,6

±0,05

0,9

±0,03

0,75

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

±0,03

3x3=9

0,7

±0,03

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Information:

4,5

1,7

1) Durchmesser des Bohrers

Proprietary notice pursuant to ISO 16016 to be observed.

Tolerances

All Dimensions

in mm

Scale

5:1

Drill tool

1,5

4x2=8

0,6

±0,05

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

17.09.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

F04 MSpeed BlindMate PM THR

www.ERNI.com

Class

374954

MSPEED
