TT200F10KEC datasheet, PDF - EEWORLD Datasheet

TT200F10KEC: DescriptionSilicon Controlled Rectifier, 410A I(T)RMS, 200000mA I(T), 1000V V(DRM), 1000V V(RRM), 2 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size282KB，7 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

TT200F10KEC Overview

Silicon Controlled Rectifier, 410A I(T)RMS, 200000mA I(T), 1000V V(DRM), 1000V V(RRM), 2 Element,

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FAST
Shell connection	ISOLATED
Nominal circuit commutation break time	20 µs
Configuration	SERIES CONNECTED, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	250 mA
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
JESD-30 code	R-XUFM-X7
On-state non-repetitive peak current	6400 A
Number of components	2
Number of terminals	7
Maximum on-state current	200000 A
Maximum operating temperature	125 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	410 A
Off-state repetitive peak voltage	1000 V
Repeated peak reverse voltage	1000 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	SCR

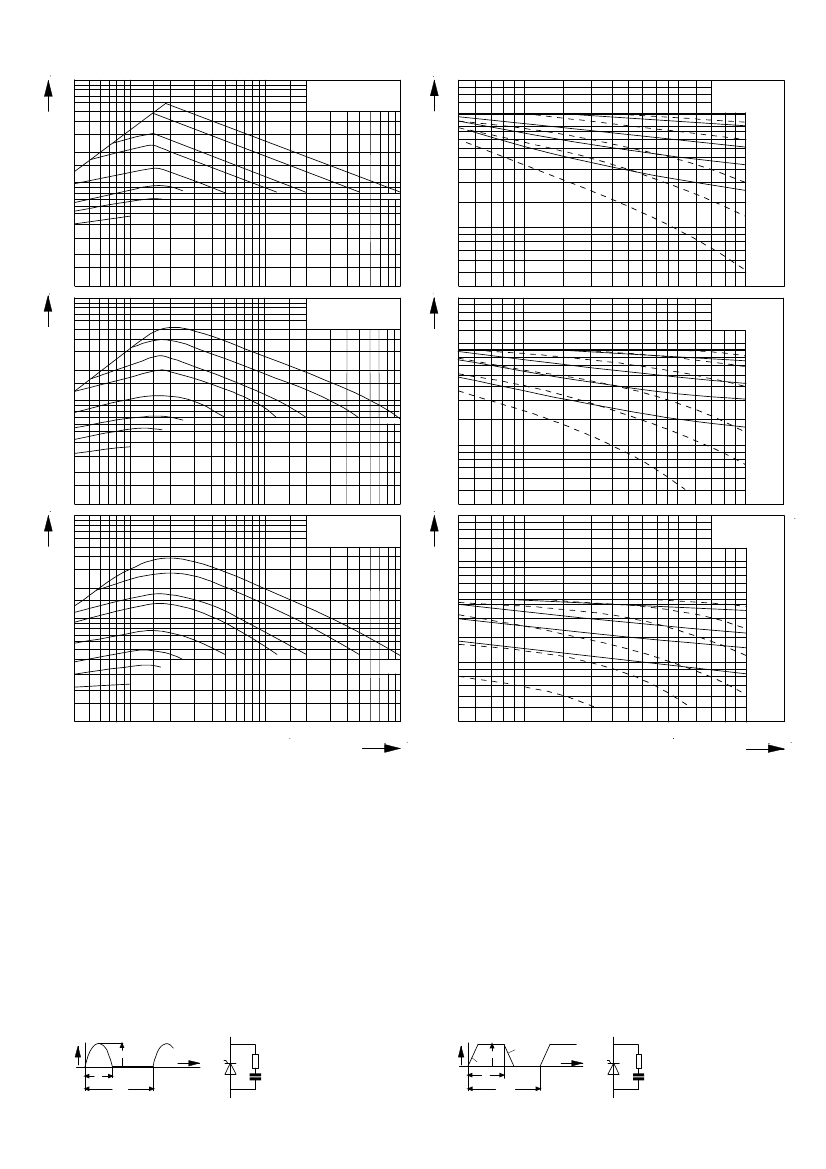

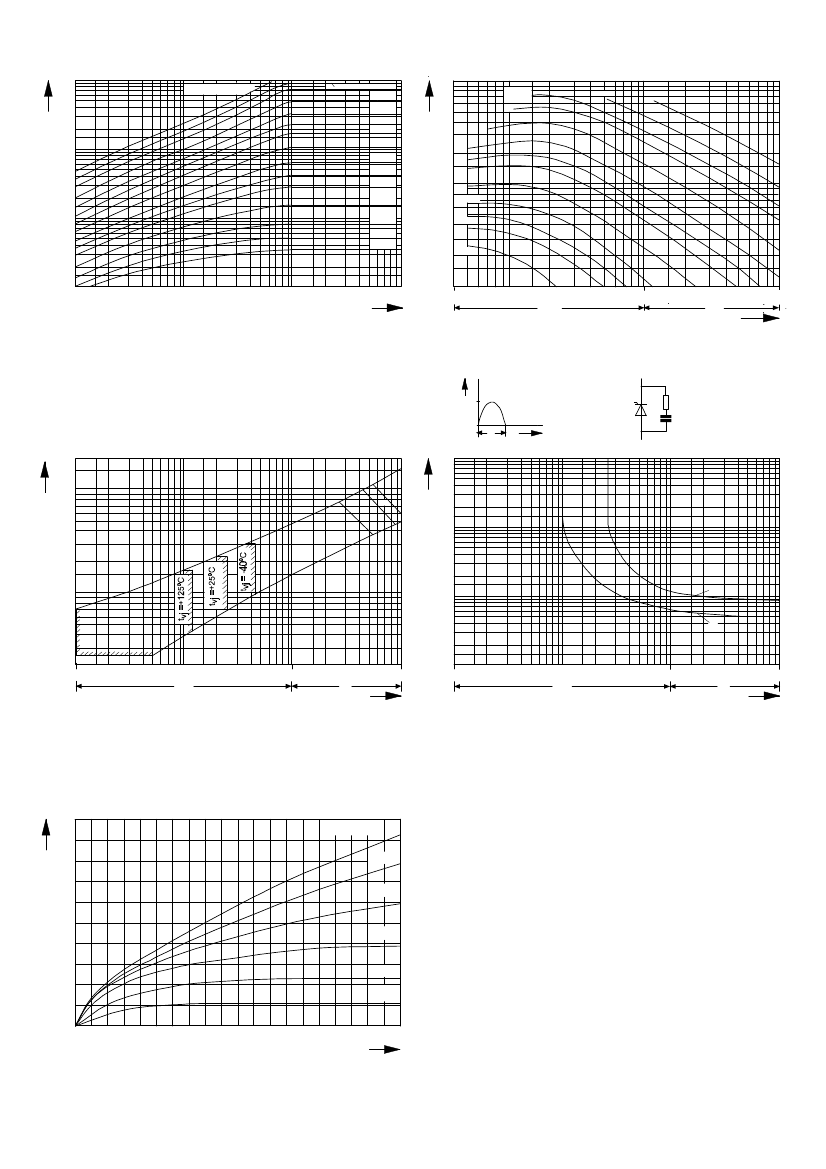

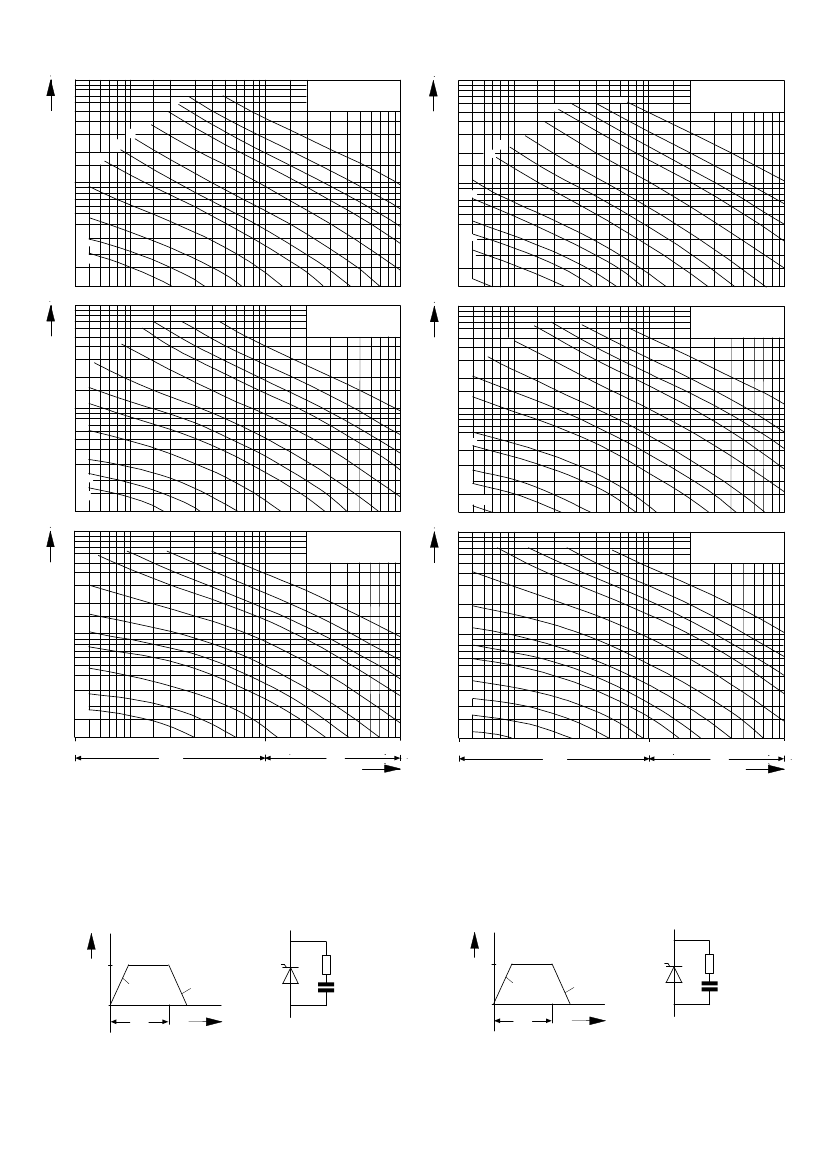

European Power-

Semiconductor and

Electronics Company

Marketing Information

TT 200 F

28,5

115

K1 G1

K2 G2

VWK Okt. 1996
