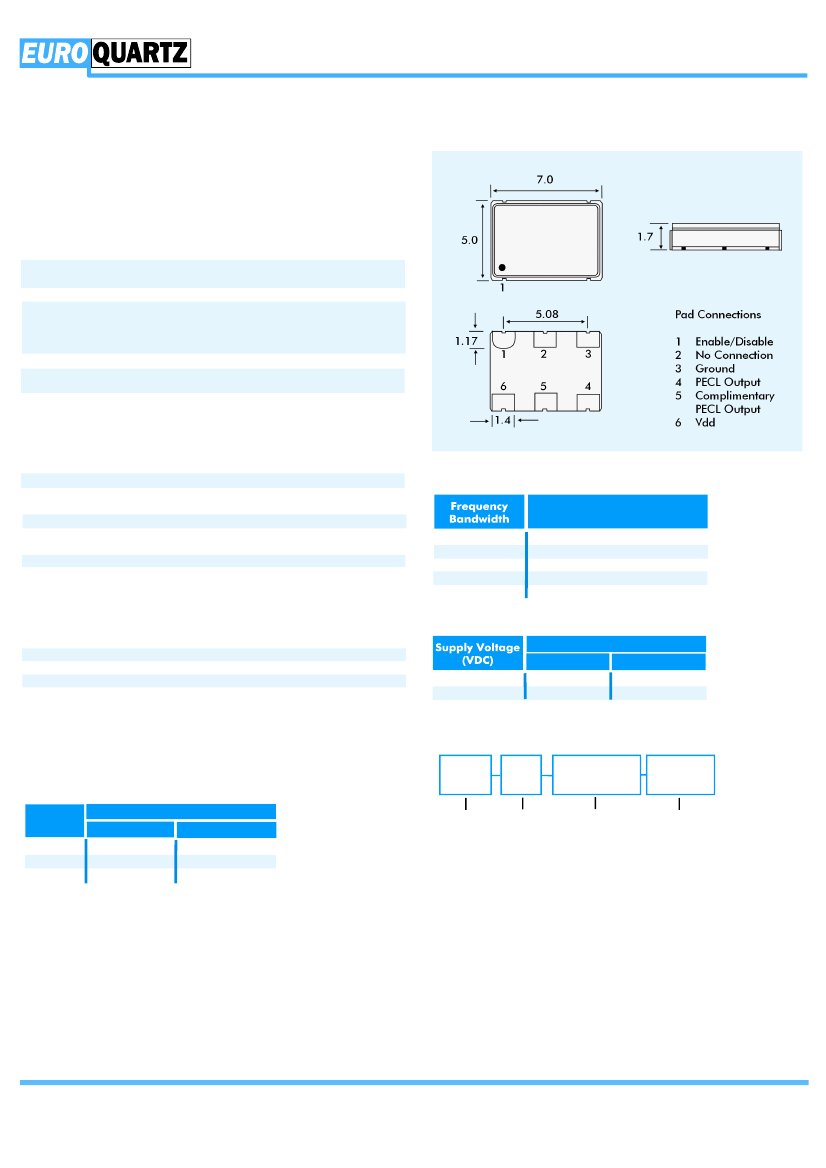

PECL OSCILLATORS

HP57 PECL OSCILLATORS

6 Pad SMD Package

FEATURES

Stable and clean 100KH differential signals

Uses inverted mesa, fundamental mode crystals

No PLL, multiplier or overtone-mode crystals used

Very low jitter <1ps

Miniature 6 pad SMD package 7.5 x 5 x

OUTLINES & DIMENSIONS

GENERAL SPECIFICATION

Output Waveform:

Frequency Range:

Standard Frequencies:

PECL 100K square wave

Fundamental mode crystal

19.440MHz to 250MHz

38.880, 44.736, 50.0, 77.76,

100.0, 106.25, 125.0, 155.52,

166.6286, 200.0, 207.360 and

212.500MHz (partial list)

See table

LVPECL

PECL

+3.3V±5%

+5.0V±5%

2.25V min.

3.95V min.

4.05V typ.

4.15V max.

1.65V max.

3.15V min.

3.25V typ.

3.35V max.

See table

50W into Vcc-2V

or Thevenin equivalent*

1.5ns max (20%~80%Vcc)

50±2% typ., 50±5% max.

(both outputs)

See table

-50dBc @ 10Hz offset

-80dBc @ 100Hz offset

-110dBc @ 1kHz offset

-135dBc @ 10kHz offset

-145dBc @ 100kHz offset

-145dBc @ 1MHz offset

10ms max.

±2ppm/year max.

-55° to +100°C

Frequency Stability:

Input Voltage Vcc

Output Voltage HIGH ‘1’ V

LOW ‘0’ V

Current Consumption:

Load:

Rise/Fall Times:

Duty Cycle:

Jitter:

SSB Phase noise:

JITTER (Example)

Jitter at 155.520MHz 5.0Volts

pico seconds RMS max.

1Hz ~ 1MHz

10Hz ~ 1MHz

100Hz ~ 1MHz

12kHz ~ 20MHz

10Hz ~ 20MHz

1.8

0.2

1.0

5.0

CURRENT CONSUMPTION

Current Consumption (mA)

155.520MHz

+3.3

+5.0

77.760MHz

Start-up Time:

Ageing:

Storage Temperature:

Tri-state Option

PECL output is disabled and complementary output remains high

when Tristate pin is

HIGH.

Both PECL and complementary PECL

outputs are high when Tristate pin is

LOW.

* Terminating resistors required on all outputs.)

ORDER CODE

Supply

Voltage

HP57

Stability Code

(A to F)

Nominal

Frequency

Nominal

Frequency

FREQUENCY STABILITY

Stability

(ppm)

±25

±50

±100

Temperature Range Order Code

0°~+70°C

-40°~+85°C

‘3’ for +3.3V Package Stability Code

A to F or

‘5’ for +5.0V Style

Cxx or Ixx

EXAMPLE:

Note: For non-standard frequency stability for commercial temperature

range use the Code’C’ followed by the stability, example ‘C20’ for

±20ppm over 0° to +70°C. For industrial temperature range use ‘I’

and the stability, example ‘I20’ for ±20ppm over -40° to +85°C.

3HP57-A-125.0

This describes HP62 package PECL, +3.3Volt supply, ±25ppm over 0°to

+70°C, at frequency of 125.0MHz.

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 1460 230000 Fax: +44 1460 230001 email: info@euroquartz.co.uk web: www.euroquartz.co.uk
