7383/B1C2-APSB/MS datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 7383/B1C2-APSB/MS

7383/B1C2-APSB/MS: DescriptionSingle Color LED, Super Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size113KB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7383/B1C2-APSB/MS Overview

Single Color LED, Super Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

7383/B1C2-APSB/MS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
color	SUPER GREEN
Configuration	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	10700.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.7 mm
method of packing	TAPE AND REEL
peak wavelength	518 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg

Preview

Download Datasheet

View All

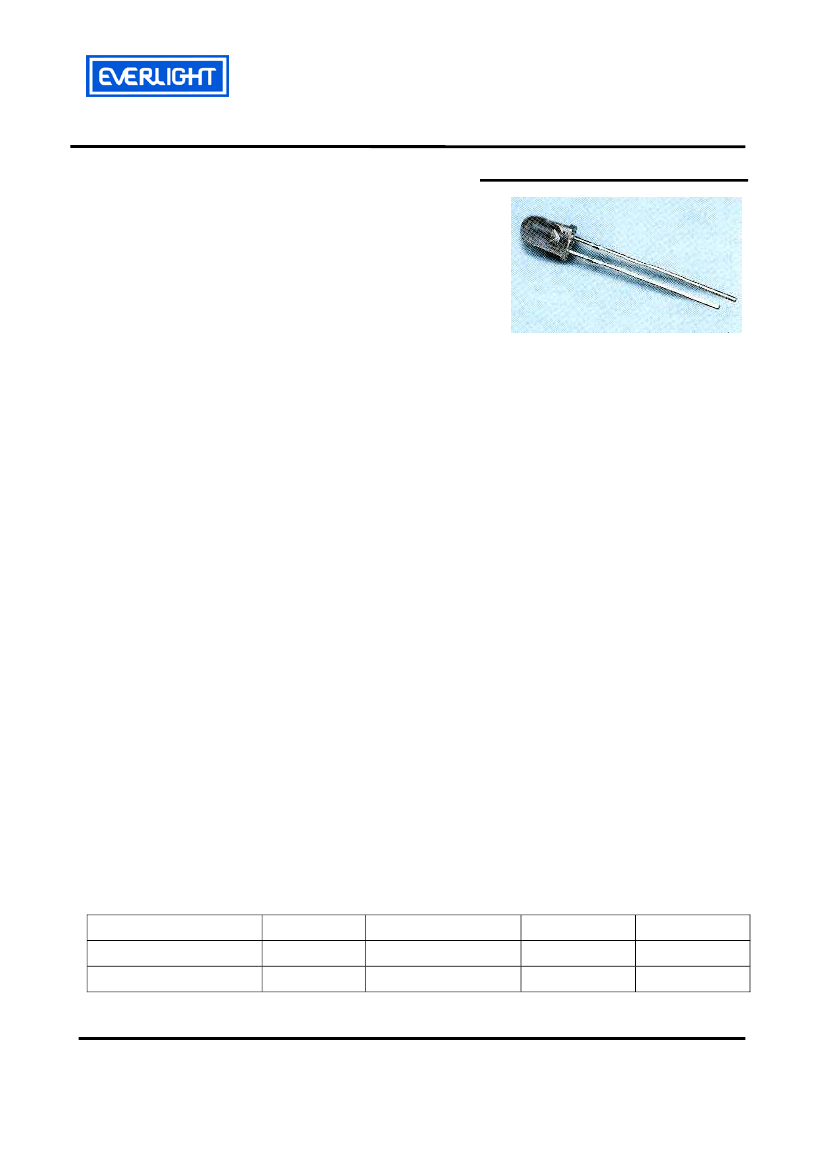

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

7383/G1C3-ATVA/X/MS

Features

˙Popular

T-1 3/4 diameter package.

˙Choice

of various viewing angles.

˙Available

on tape and reel.

˙Reliable

and robust.

˙ESD-withstand

voltage: up to 4KV.

˙The

product itself will remain within RoHS compliant version.

˙UV

resistant epoxy

Descriptions

˙The

series is specially designed for applications

requiring higher brightness.

˙The

LED lamps are available with different

colors, intensities, epoxy colors, etc.

˙Superior

performance in outdoor environment

Applications

˙Color

Graphic Signs

˙Message

boards

˙Variable

message signs (VMS)

˙Commercial

outdoor advertising

Device Selection Guide

LED Part No.

7383/G1C3-ATVA/MS

7383/G1C3-ATVA/P/MS

Chip Mterial

InGaN

Emitted Color

Super Green

Lens Color

Water Clear

Stopper

Yes

Everlight Electronics Co., Ltd.

Device Number : DLE-738-037

http\\:www.everlight.com

Prepared date:05-26-2006

Rev :1

Page: 1 of 8

Prepared : Grace Shen

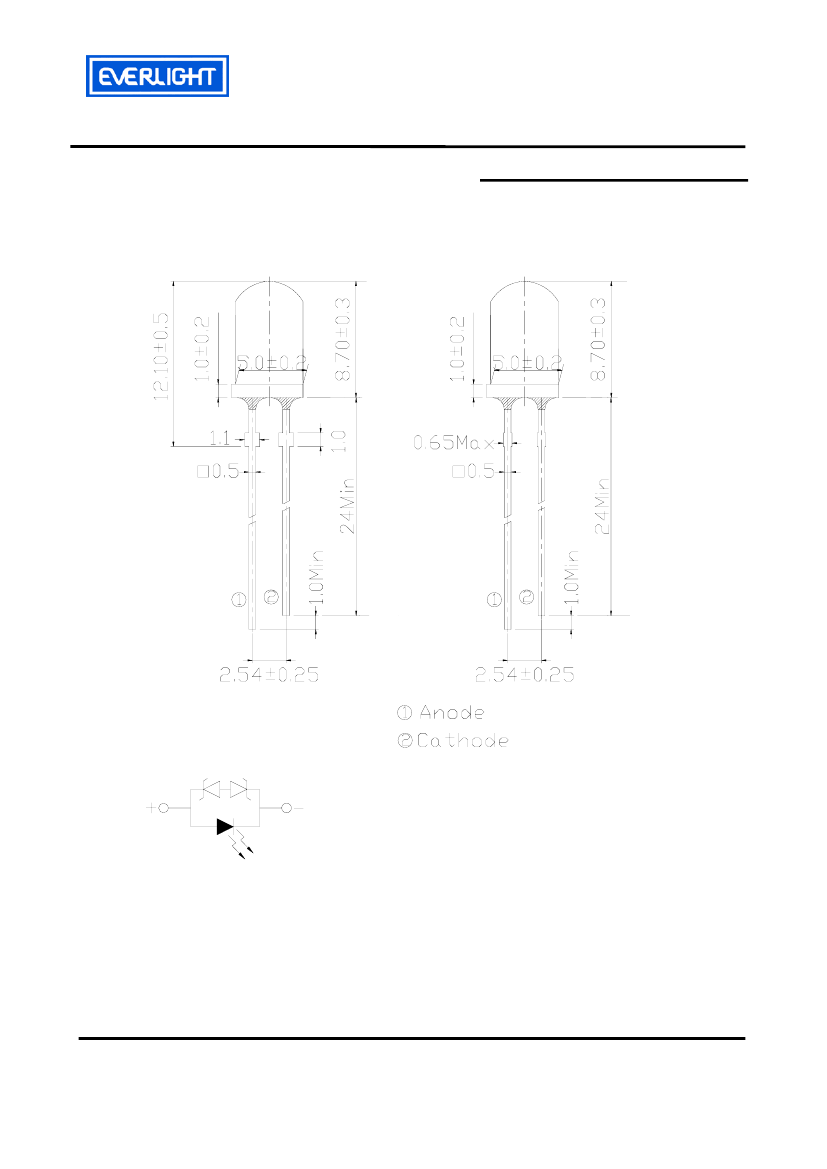

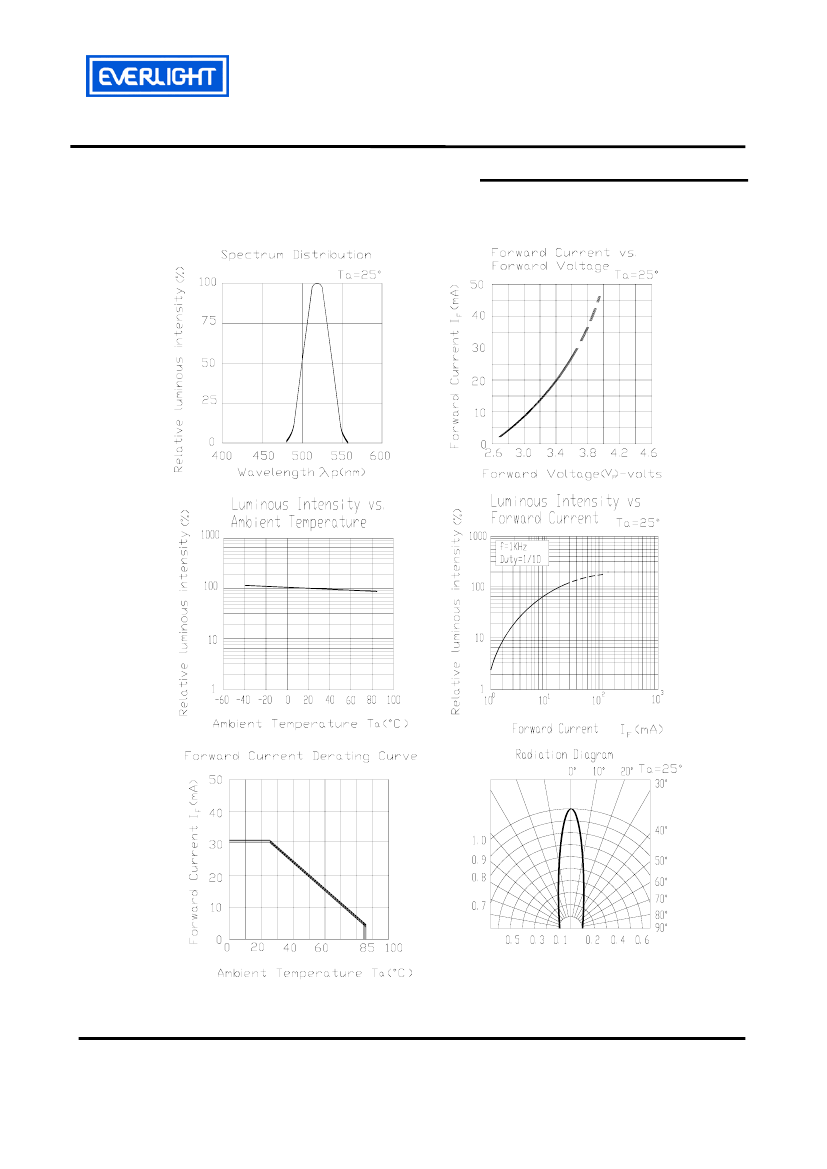

7383/B1C2-APSB/MS Related Products

	7383/B1C2-APSB/MS	7383/B1C2-APSB/P/MS
Description	Single Color LED, Super Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 3/4 SINGLE COLOR LED, SUPER GREEN, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compli	compliant
color	SUPER GREEN	SUPER GREEN
Configuration	SINGLE WITH BUILT-IN ZENER DIODE	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	10700.0 mcd	10700.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.7 mm	8.7 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	518 nm	518 nm
shape	ROUND	ROUND
size	5 mm	5 mm
surface mount	NO	NO
T code	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm
perspective	30 deg	30 deg
