9341PCQM: DescriptionArithmetic Logic Unit, TTL, PDIP24,; Categorylogic logic; File Size373KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

9341PCQM Overview

Arithmetic Logic Unit, TTL, PDIP24,

9341PCQM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP24,.6
Reach Compliance Code	compli
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

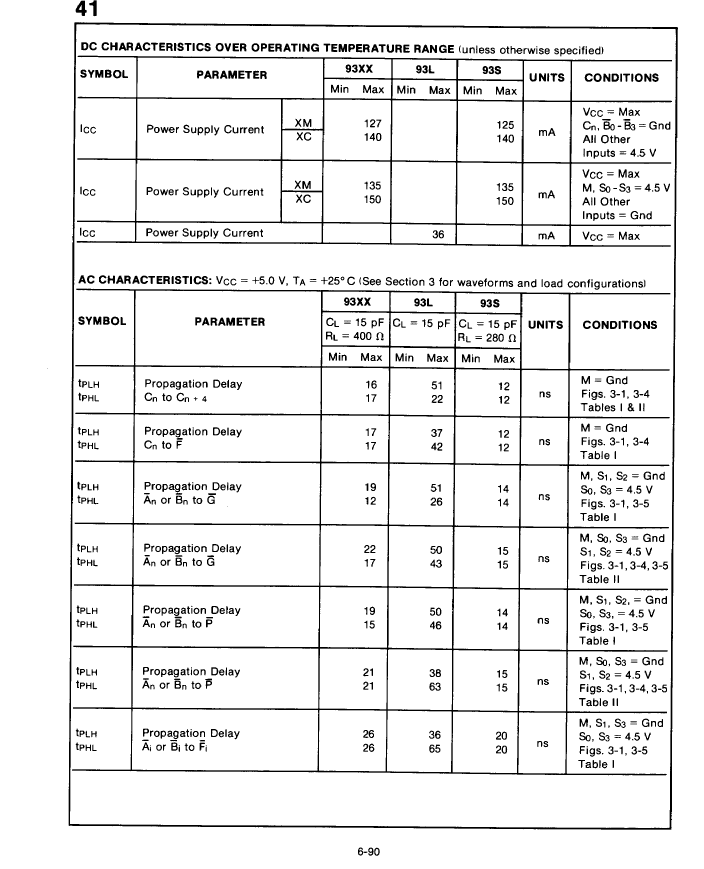

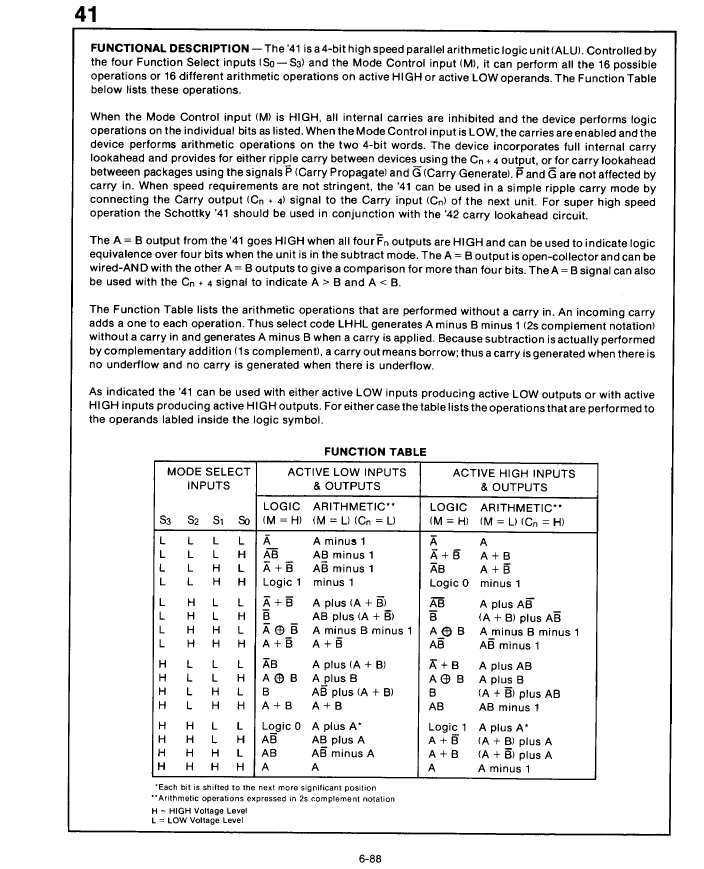

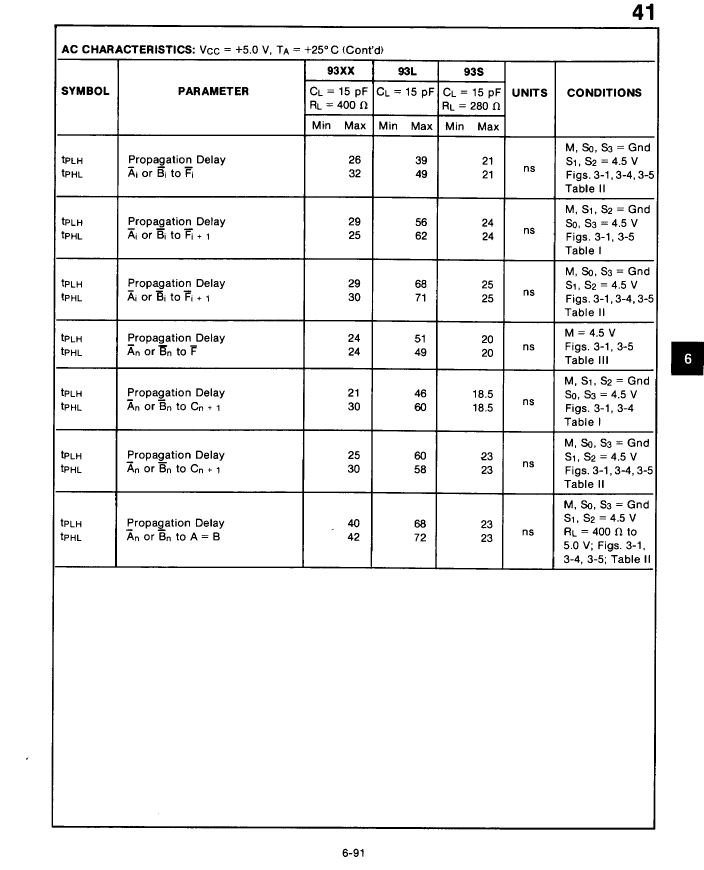

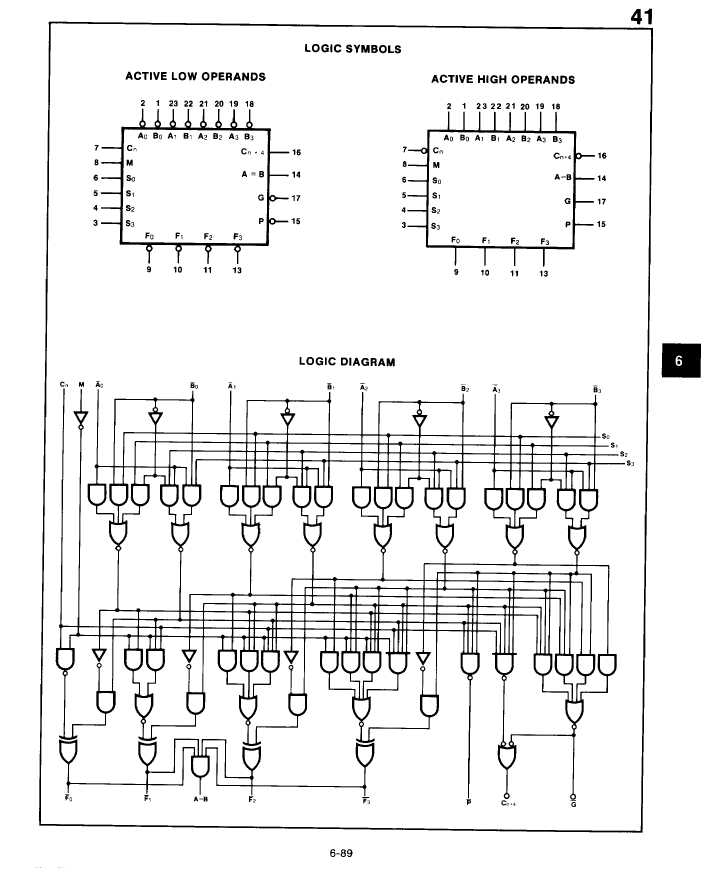

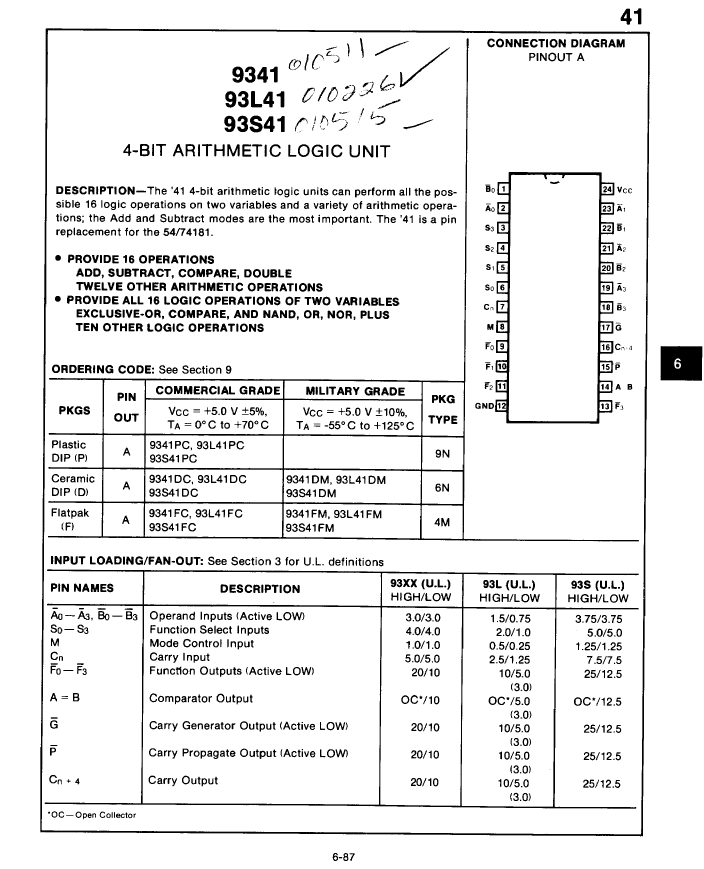

Preview

Download Datasheet

View All

9341PCQM Related Products

	9341PCQM	9341DCQR	9341DMQB	9341PCQR	93L41DMQB
Description	Arithmetic Logic Unit, TTL, PDIP24,	Arithmetic Logic Unit, TTL, CDIP24,	Arithmetic Logic Unit, TTL, CDIP24,	Arithmetic Logic Unit, TTL, PDIP24,	Arithmetic Logic Unit, TTL, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
JESD-30 code	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of terminals	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	125 °C	70 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
power supply	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-
