HCMOS 3.2x2.5mm 3.3V SMD Oscillator
Model: F337/F339 Series
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 7/8/2009
http://www.foxonline.com/need_a_sample.htm
FEAtuRES
•
•
•
•
3.3V Operation
HCMOS Output
Standby Function
Tape and Reel
(1,000 pcs. STD)
• PARt nuMbER SElECtiOn
Learn More - Internet Required
Model Frequency
Operating
Part Number
Number Stability
1
Temperature (ºC)
-20 ~ +70
±15PPM
826B-Frequency-xxxxx F337F
-40 ~ +85
±15PPM
826C-Frequency-xxxxx F337R
-20 ~ +70
±10PPM
826-Frequency-xxxxx
F339F
-40 ~ +85
±10PPM
826A-Frequency-xxxxx F339R
Frequency
Range (MHz)
4.000 ~ 54.000
4.000 ~ 54.000
4.000 ~ 54.000
4.000 ~ 54.000
3.3 Max
#3
#4
Top
View
Dot denotes
Pin 1
MARKING
2.6 Max
• ElECtRiCAl CHARACtERiStiCS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
)
Fall Time (90% ~ 10% V
dd
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current (I
std
)
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Phase Noise
(@ 10kHz offset)
Period Jitter
Reflow Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
#1
#2
MAX
(unless otherwise noted)
4.000 ~ 54.000 MHz
-40ºC ~ +85ºC
3.3V ± 5%
7mA
45% ~ 55%
5nS
5nS
10% V
dd
90% V
dd
Min
4mA Min
-4mA Min
15pF
10µA
10mS
250nS
10mS
-145dBc/Hz Typ.
3pS RMS Typ.
260ºC / 10 Seconds
1
Au
1.0 Max
0.7
#1
TP
Bottom
View
#2
0.5
1.3
#4
TP
#3
1.6
TP = Test Point and is No Connect
Recommended
Solder Pad Layout
1.0
0.8
1.3
#1
Inclusive of 25
º
C tolerance, operating temperature range, input voltage change, load change,
reflow and one year aging.
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between Vdd
(Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
1.6
#1 E/D**
#3 Output
#2 GND
#4 V
dd
All dimensions are in millimeters.
Pin Connection
• EnAblE / DiSAblE FunCtiOn
INH (Pin 1)
OUTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
HCMOS 3.2x2.5mm 3.3V SMD Oscillator
Model: F337/F339 Series
Page 2 of 2
RoHS Compliant / Pb Free
Rev. 7/8/2009
http://www.foxonline.com/need_a_sample.htm

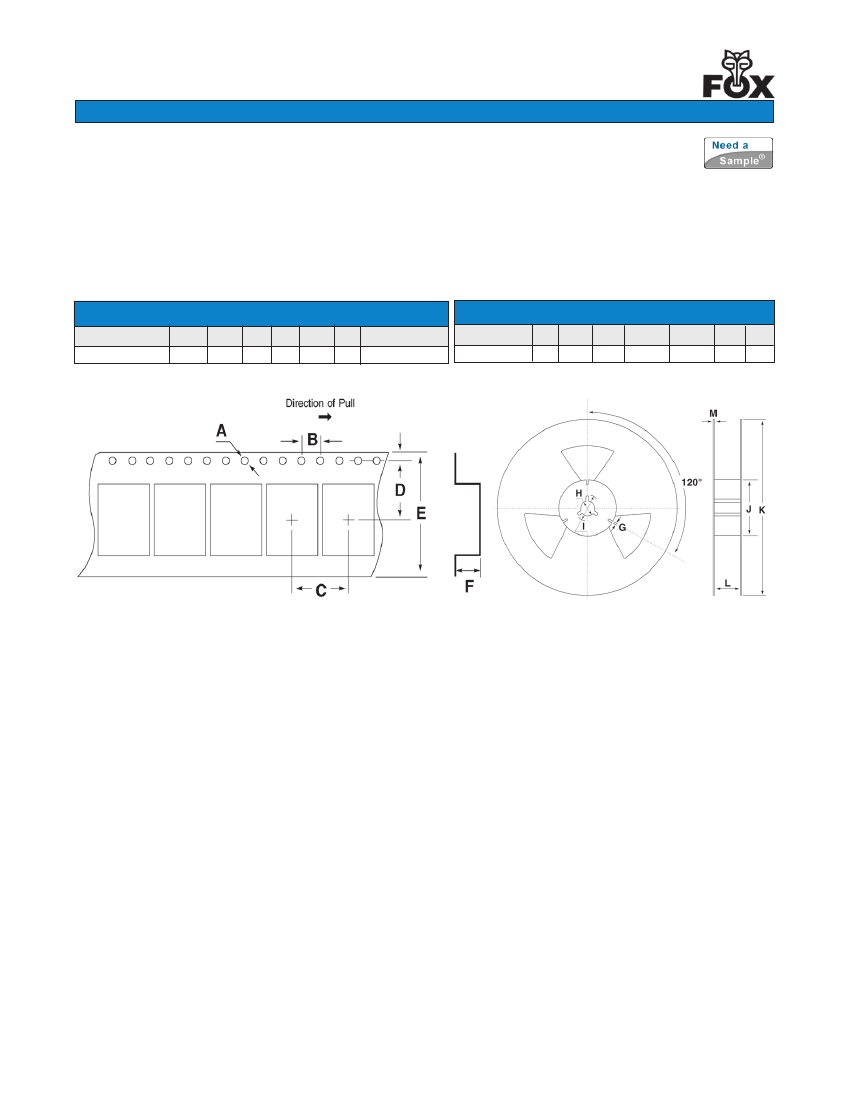

• tAPE SPECiFiCAtiOnS
(millimeters)
MODEl
F337/F339
A
∅1.5
• REEl SPECiFiCAtiOnS
(millimeters)
G
i
J
K
l M
H
b
C D
E
F
STD Reel QTY
MODEl
F337/F339
2.5
∅13 ∅22 ∅60.2 ∅178
8.0 1.6
4.0 4.0 3.5 8.0 1.4
1,000
