CD74ACT32EX datasheet, PDF - EEWORLD Datasheet

CD74ACT32EX: DescriptionOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14,; Categorylogic logic; File Size116KB，4 Pages; ManufacturerGE Solid State

Download Datasheet Parametric View All

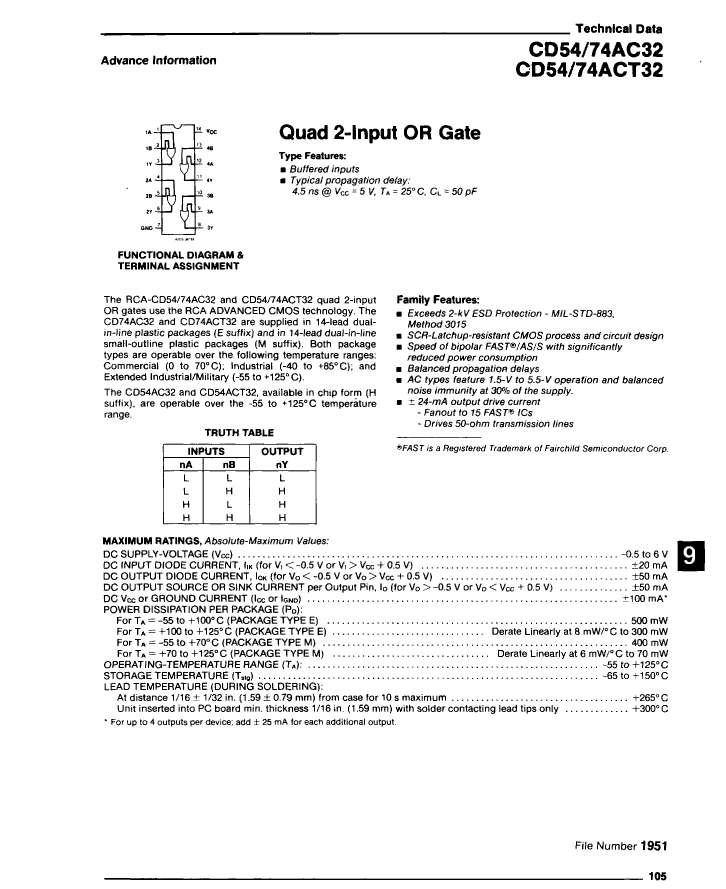

CD74ACT32EX Overview

OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14,

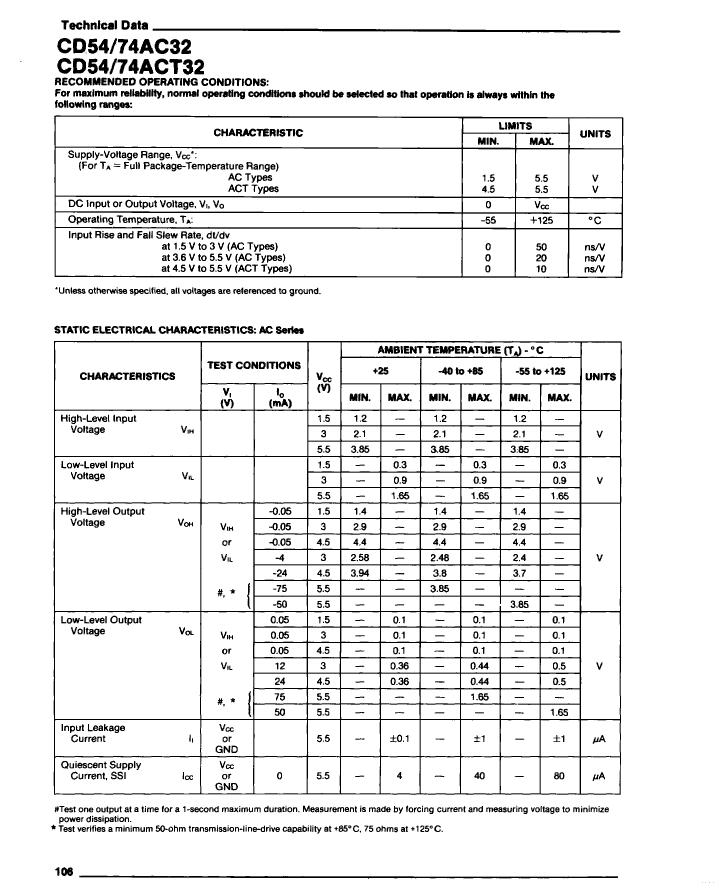

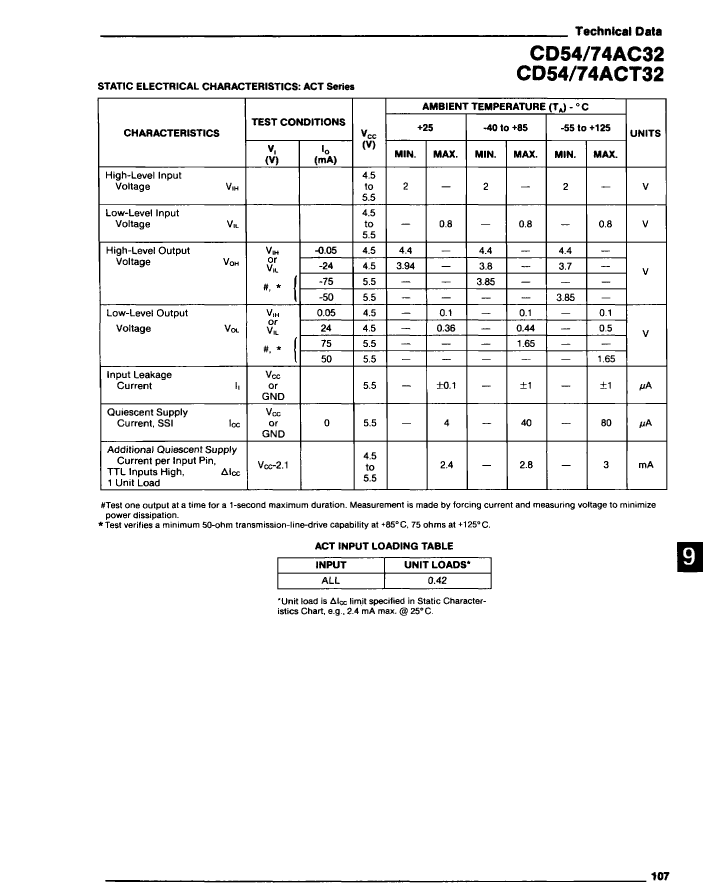

Parameter Name	Attribute value
Maker	GE Solid State
package instruction	,
Reach Compliance Code	unknow
series	ACT
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE

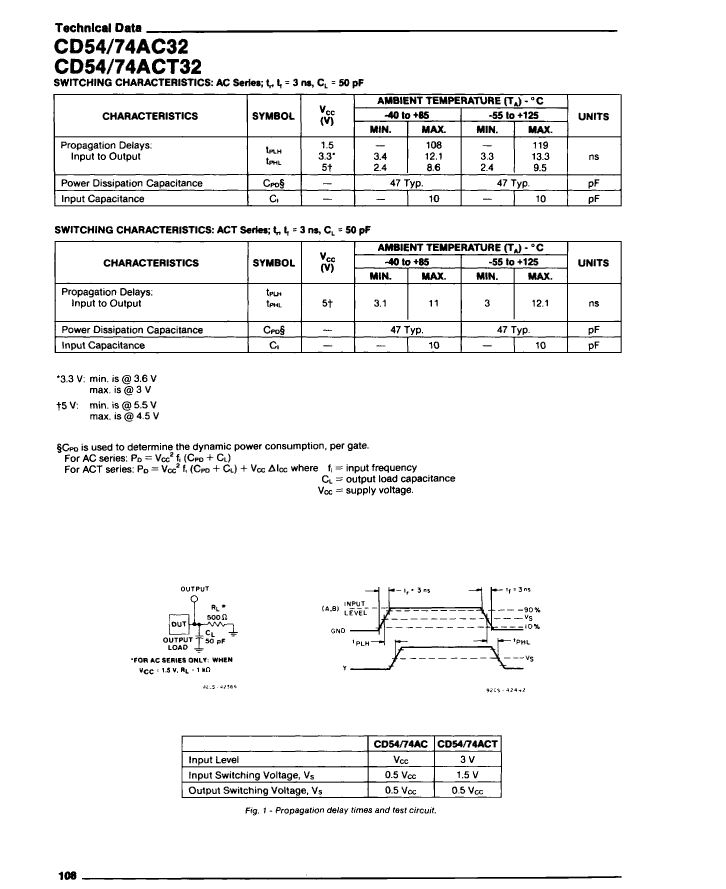

propagation delay (tpd)	12.1 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
