DuroSite
®
Series LED High Bay
for Indoor and Outdoor Industrial Applications
Patent Pending
DuroSite
®
Series LED High Bay
Features & Benefits
•
L70 rated for >100,000
hours @ 25°C ambient
•
5 year full performance
warranty
•
Up to 101lm/W
•
Significant energy savings
•
Instant on/off
•
Maintenance free
•
Mercury free
•
No UV or IR
•
Produces minimal heat
compared to traditional
fixtures
•
Reflector based optics for
precise light control
•
Resistant to shock and
vibration
•
Temperature compensation
technology for long life
•
Copper free aluminum
•
Typical payback < 2 years
Typical Applications
•
Food and Beverage
•
Heavy Industrial
•
Manufacturing
•
Pulp and Paper
•
Fuel Pump Canopy
•
Cold Storage
•
Warehouse
Rockline Industries
Manufacturing Facility
View the full case studies at:
MMD Shipping
Cold Storage Facility
MedSafe
Warehouse Facility
Significantly smaller than
traditional High Bay fixtures
G.S. Dunn Limited
-
www.dialight.com/news/details/gsdunn_case_study
Rockline Industries
-
www.dialight.com/news/details/rockline_case_study
MedSafe
-
www.dialight.com/news/details/medsafe_case_study
Kuehne + Nagel
-
www.dialight.com/news/details/kuehne_nagel_case_study
MMD Shipping
-
www.dialight.com/news/details/mmd_shipping
Complete your own Return on Investment calculation at:
www.dialight.com/tcoCalculator/Durosite_HighBay
2
www.dialight.com
Application:
Dialight’s DuroSite
®
LED High Bay fixture was designed specifically to
replace conventional lighting in a wide variety of industrial applications;
both indoor and outdoor. Its low profile light weight design and versatile
mounting options make it ideal for many applications such as warehouse,
garage, aisle, cold storage, bridge, tunnel and general area lighting.
All of Dialight’s long life LED luminaires are designed to meet the most
demanding specification criteria while offering maximum energy
savings, reduced maintenance costs, and a superior quality of light.
Mechanical Information
Fixture Weight:
Shipping Weight:
17 lbs (7.7 kg)
23 lbs (10.43 kg)
(1) 3/4” NPT
(2) 5/16”-18 x .75” UNC
10' (3.5m) SOOW Power Cord
DuroSite
LED High Bay Fixture
1.88 [47.75]
®
Mounting:
Cabling:
Electrical specifications
Operating Voltage:
Total System
Power Consumption:
Operating Temp:
Harmonics:
Transient Protection:
100 – 277V AC for models up to 12,000lm
120 – 277V AC for 14,500lm & 17,500lm
See table
-40
°
F to +149
°
F (-40
°
C to +65
°
C)
IEC 61000-3-2
1 kV line to line
2 kV line to ground
> 0.9
Internal on black wire
6.88
[174.75]
16.00
[406.40]
Power Factor:
Fusing:
Construction
10’ [3.05m]
Cord
1.95
[49.53]
3/4” NPT THREADED
Housing:
Finish:
Lens:
Powder coated aluminum
Polyester / epoxy powder coat gray RAL 7040
for superior corrosion resistance
Acrylic - UL1598 dry location
Polycarbonate - UL1598A wet location
Polycarbonate dome lens
Tempered glass
3.00
[76.20]
5/16”-18 X .75” THREADED (2)
16.00
[406.40]
Photometric Information
Dimensions in Inches [mm]
CRI:
CCT:
72
Certifications & Ratings
•
UL-1598 (acrylic lens models)
•
UL-1598A (polycarbonite lens and tempered glass)
•
CSA 22 #250
•
FCC Title 47
•
NEMA - 4X
•
IP-66
•
Dark Sky Compliant
5,650K (cool white)
4,300K (neutral white)
All values typical unless otherwise stated
Meets Buy American
For projects requiring Buy American certification,
consult factory for additional information and details

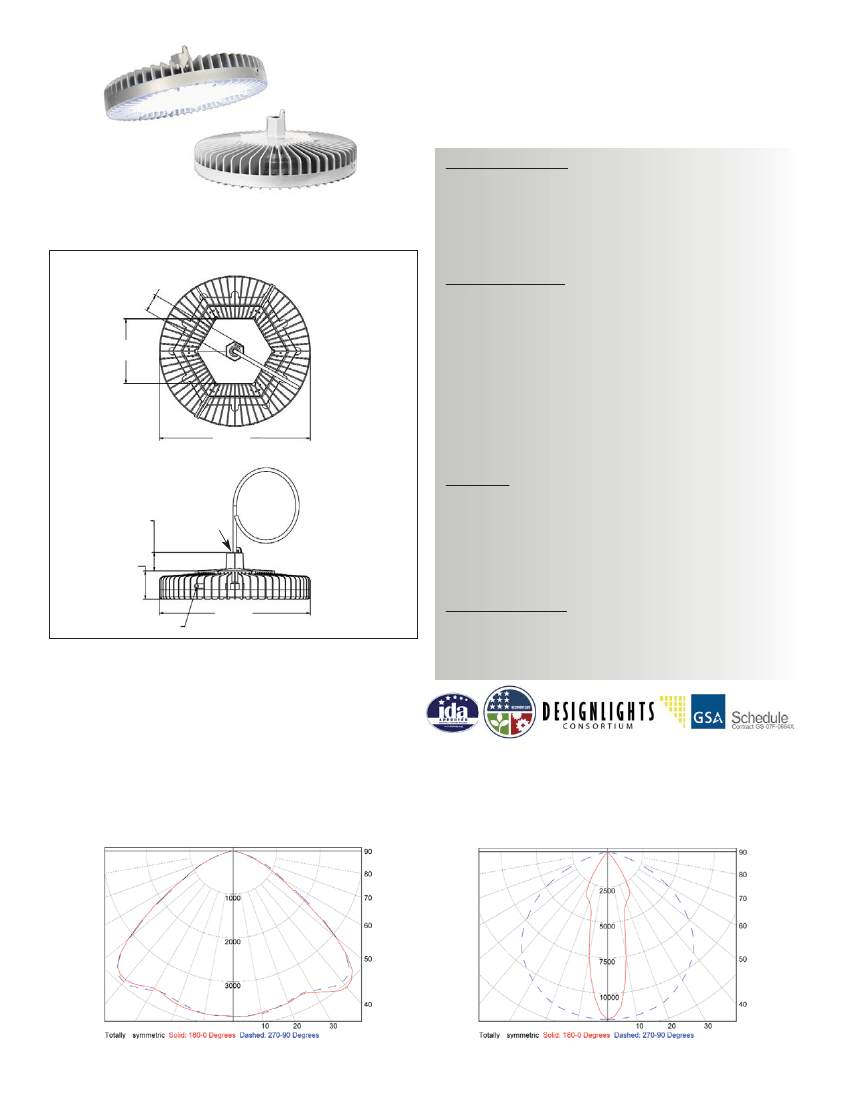

Candela Plots
Aisle Pattern
Circular Pattern
Examples shown are 11,500 lumen models, HB6C4M - aisle pattern and HB2C4M - circular
www.dialight.com
3
DuroSite
®
LED High Bay Fixture Options

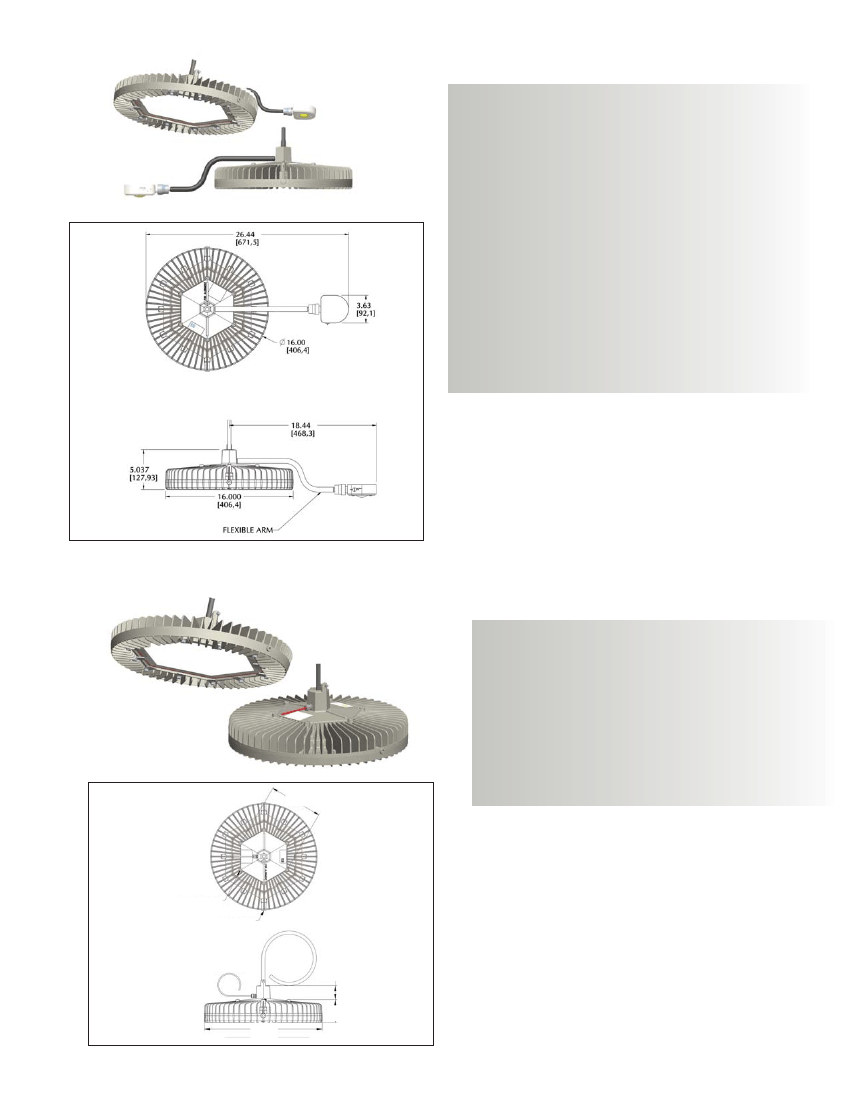

Occupancy Sensor Version
Mechanical, Electrical and Photometric information is the same
as on page 3 except where detail is provided
Fixture Weight:
Container Weight:
Sensor Mounting:
19lbs (11.34kg)
25lbs (8.62kg)
Attached to the base of the neck using
a semi-rigid flexible conduit
Dry location Leviton OSFHU - CTW (120 - 347V AC)
or C4W (480V AC)
Wet location Wattstopper HB350W (120 – 347V AC)
or HB340W (480V AC)
30 seconds to 20 minutes
Comes complete with interchangeable lenses
for multiple mounting heights
Occupancy Sensor:
Sensor Timing:
Sensor Lens Options:
Operating Temperature
Leviton models:
-14
°
F to +149
°
F (-10
°
C to +65
°
C)
Wattstopper models:
-40
°
F to +149
°
F (-40
°
C to +65
°
C)
Features and Benefits
•
No additional electrical connections required for installation
•
Flexible conduit permitting the positioning of the occupancy senso
for optimal coverage
•
Interchangeable sensor lens for high bay, low bay, or aisle
Dimensions in Inches [mm]
applications
Variable Dimming (0-10 VDC) & STEP Dimming
Mechanical, Electrical and Photometric information is the same
as on page 3 except where detail is provided
Variable Dimming Cable:
Power Cable:
Dimming Cable Position:
Two conductor cable
Three conductor cable
Side of the neck through a cable gland
Variable Dimming Control:
0-10 V DC active
Dimming Range:
8.00
(203,2)
10 V DC = 100% light output
0 V DC = 15% light output
Features and Benefits
•
10’ plenum rated dimming control cable pre-installed
•
Dimming cabling independent of fixture wiring
•
Multiple High Bays can be connected to the same dimmer
1/4” - 20 SELF - TAPPING
SCREW HOLE (6)
5/16” - 18 X .75”
THREADED HOLE (2)
10’ (3.05m)
DIMMIMG CABLE
10’ (3.05m)
Power Cord
•
May also be configured to operate in a single STEP Dimming
configuration
STEP Dimming Mode
The variable dimming High Bays may also be configured to operate
in a single STEP Dimming configuration. When the dimming control
conductors are connected together, the light output will be reduced
to approximately 15% of the maximum light output. The total fixture
power consumption will also be reduced to approximately 20% (30
W). Connecting the leads together can be accomplished with a
common wall switch.
1.91
(48,6)
3.13
(79,4)
Ø 16.0
(406)
Dimensions in Inches [mm]
4
www.dialight.com
DuroSite
®
Series
LED High Bay Fixture
Ordering Information
Part
Number
1,4
HBGCMP
HBGC4P
HB2C4P
HB0C4P
HB1C4N
HB6C4M
HB1C4J
HB2C4M
HB5C4M
HB5C4T
HB2C4K
HB7C4M
HB5C4J
HB1C4S
HB3C4L
HBWC4L
HB4C4L
HBGCQZ
HBGC1T
HB1C4T
HB6C4T
HB1C4S
HB5C4S
HB2C4T
HB7C1T
HB3C4R
HBGCMZ
HBGC4Z
HB1C4Y
HB6C4Y
HB5C4Y
HB7C4Y
HB2C4Y
HB2C4X
HB3C4W
HB4C4W
HBGCQQ
HBGC1Q
HB1C4H
HB2C1H
Initial
Fixture
Lumens
2
17,500
14,500
12,000
11,500
11,500
11,500
11,000
10,750
10,750
10,750
10,500
10,500
10,500
10,500
9,000
8,750
8,500
17,500
14,500
11,500
11,500
11,000
10,500
10,500
10,250
9,000
17,500
14,500
11,500
11,500
10,750
10,500
10,250
10,000
9,000
8,500
17,500
14,500
11,500
10,250
Wattage
172
161
153
153
146
146
146
146
146
146
146
146
137
137
124
135
124
172
161
146
146
146
137
146
146
124
172
161
146
146
146
146
146
137
124
124
172
161
146
146
Lumens
Per Watt
101
90
78
75
79
79
76
73
74
74
73
72
77
77
72
65
69
101
90
79
78
76
77
73
72
72
101
90
79
78
74
72
70
73
72
69
101
90
79
70
UL-1598A
IP-66, NEMA - 4X
CSA 22.2 #250
Marine Wet Locations
3
Lens
5
Clear
Tempered Glass
Tempered Glass
Polycarbonate
Polycarbonate
Acrylic
Acrylic
Acrylic
Polycarbonate
Acrylic
Acrylic
Optical Pattern
Diffused
Circular
Aisle
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Polycarbonate
Polycarbonate
Acrylic
Acrylic
Acrylic
Polycarbonate
Polycarbonate
Tempered Glass
Tempered Glass
Acrylic
Acrylic
Acrylic
Acrylic
Polycarbonate
Polycarbonate
Acrylic
•
•
Occupancy Sensor High Bays
•
•
•
•
Variable Dimming High Bays
•
Tempered Glass
Tempered Glass
Acrylic
Acrylic
Acrylic
Polycarbonate
Polycarbonate
Polycarbonate
Acrylic
Polycarbonate
Tempered Glass
Tempered Glass
Acrylic
Polycarbonate
•
•
•
•
•
•
•
•
•
•
•
•
•
•
STEP Dimming / Occupancy Sensor High Bay
•
•
Variable Dimming / Occupancy Sensor High Bay
•
Notes for all versions:
1
Part numbers listed in the above table are cool white. For neutral white version replace the 4th character with N Ex: HB1C4N become HB1N4N.
2
Initial fixture lumens based on temperatures up to 113°F (45°C).
Units meet IP-66 when installed using conduit or an IP66 approved cable gland at the 3/4 NPT. Dialight offers IP-66 approved cable glands as part
of accessories HBXW2 and HBXCG.
3
Notes for standard versions only:
4
Part numbers listed in the table above are 100-277V AC. For 347-480V AC version replace the 5th character with a 5. EX: HB1C4N (100-277VAC)
becomes HB1C5N (347-480V AC). For 17,500lm, 347-480V AC versions replace 5th character becomes a T. EX: HBGCMP (100- 277V AC) becomes
HBGCTP (347-480V AC).
5
Part numbers listed in the tables above come with a flat lens. For models with polycarbonate flat lens they can be ordered with a polycarbonate
dome lens; replace 3rd character with a L Ex: HB2C4M becomes HBLC4M .
www.dialight.com
5
