52797HA (ID) / 30795TH (ID) No. 4672—1/3
STK4032X
Operating Characteristics
at Ta = 25
°
C, V
CC
=
±
33.5V, R
L
= 8
Ω
(noninductive load), Rg = 600
Ω
, VG = 40dB, 100kHz LPF on
Parameter
Quiescent current
Symbol
I
CCO
P
O
(1)
Output power
P
O
(2)
Total harmonic distortion
Frequency response
Input impedance
Output noise voltage
2
Neutral voltage
THD
f
L
, f
H
r
i
V
NO
V
N
Conditions
V
CC
=
±
40V
THD = 0.008%, f = 20Hz to
20kHz
V
CC
=
±
30V, THD = 0.04%,
R
L
= 4
Ω
, f = 1kHz
P
O
= 1.0W, f = 1kHz
P
O
= 1.0W,
+0
dB
−3
P
O
= 1.0W, f = 1kHz
V
CC
=
±
40V, Rg = 10k
Ω
V
CC
=
±
40V
min
15
40
45
–
–
–
–
−
70
typ
–
–
–
–
20 to 50k
55
–
0
max
120
–
–
0.008
–
–
1.2
+70
Unit
mA
W
W
%
Hz
k
Ω
mVrms
mV
Notes.
All tests are measured using a constant-voltage supply unless otherwise specified.
1. Available time for load short-circuit and output noise voltage are measured using the transformer supply specified below.
2. The output noise voltage is the peak value of an average-reading meter with an rms value scale. The noise voltage waveform does not inlcude any pulse noise.
Specified Transformer Supply (MG-200 or Equivalent)
Equivalent Circuit
No. 4672—2/3
STK4032X

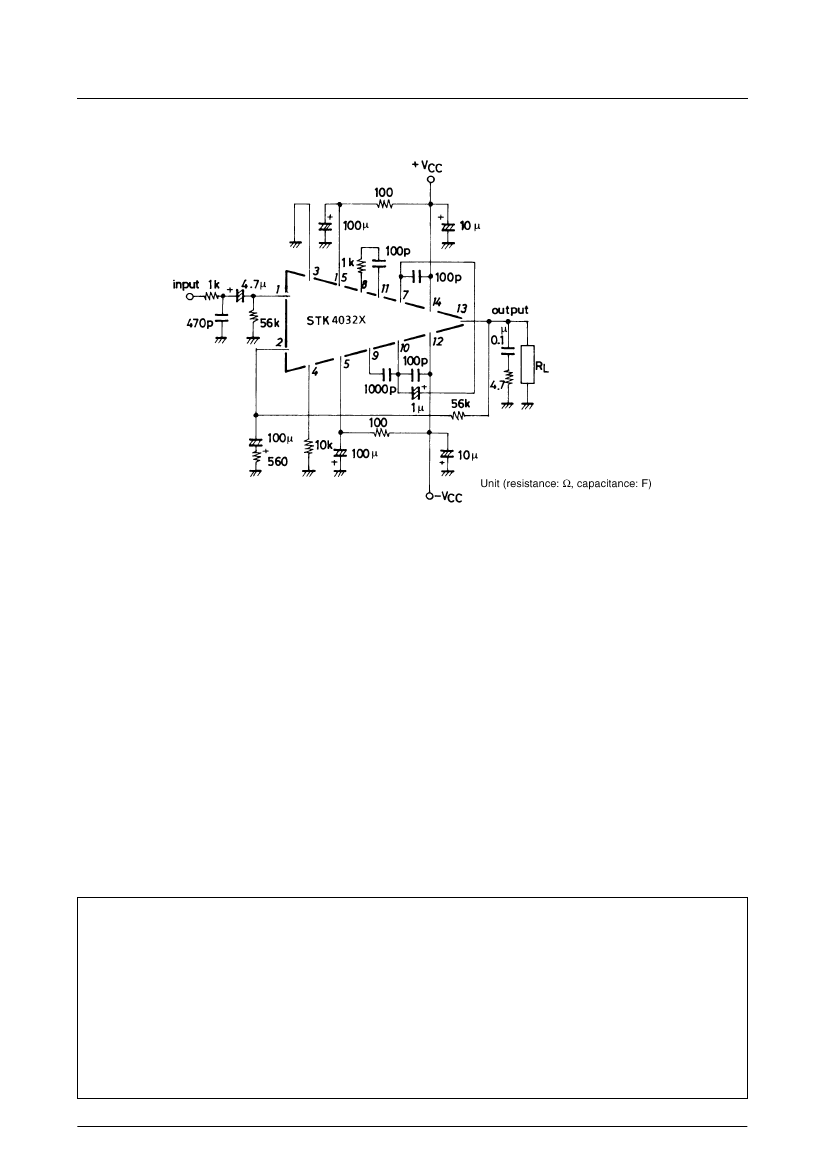

Sample Application Circuit
(40W min AF Power Amplifier)
s
No products described or contained herein are intended for use in surgical implants, life-support systems, aerospace equipment, nuclear
power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of which may directly or indirectly cause injury,
death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors and all their
officers and employees, jointly and severally, against any and all claims and litigation and all damages, cost and expenses associated
with such use:
Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on SANYO ELECTRIC CO.,
LTD., its affiliates, subsidiaries and distributors or any of their officers and employees, jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for volume production. SANYO
believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringements of
intellectual property rights or other rights of third parties.
s
s
This catalog provides information as of May, 1997. Specifications and information herein are subject to change without notice.
