HC4D-HL-DC100V

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, PANEL MOUNT
CategoryMechanical and electronic products    relay
File Size431KB,18 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

HC4D-HL-DC100V Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, PANEL MOUNT

HC4D-HL-DC100V Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresWITH LED INDICATION
body width20.8 mm
body height35.2 mm
Body length or diameter27.2 mm
Maximum coil current (DC)0.011 A
Coil operating voltage (DC)88 V
Coil power1000 mW
Coil release voltage (DC)11 V
Coil resistance10000 Ω
Maximum coil voltage (DC)110 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load3A@250VAC
Maximum contact current (AC)3 A
Maximum contact voltage (AC)250 V
Contact/Output Power TypeAC
Electrical life200000 Cycle(s)
Installation featuresSOCKET MOUNT
operating hours20 ms
Maximum operating temperature60 °C
Minimum operating temperature-50 °C
method of packingBOX
physical size27.2mm x 20.8mm x 35.2mm
GuidelineCSA; UL; VDE
Relay actionMOMENTARY
Relay function8PDT
Relay typePOWER/SIGNAL RELAY
release time20 ms
surface mountNO
Termination typeSNAP-ON
Base Number Matches1

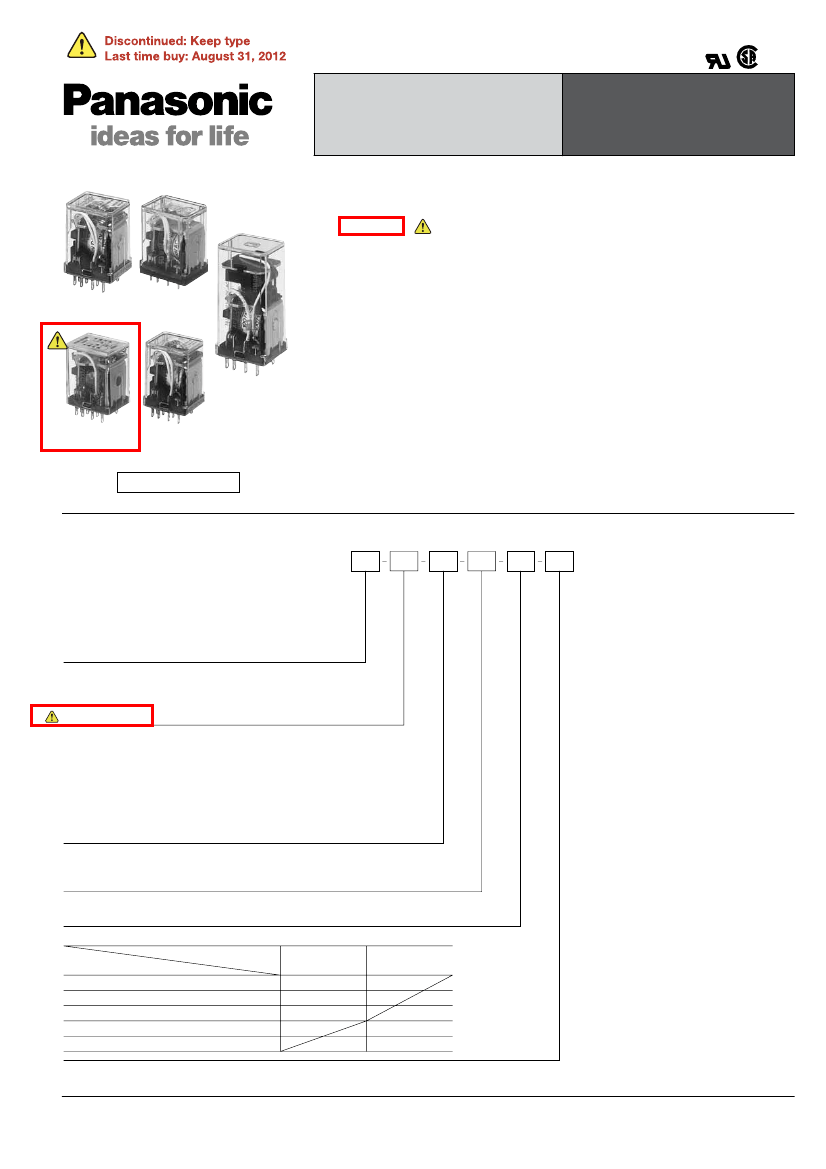

VDE
HC
1c, 2c, 4c
Relay for control panel of
1A to 10A (1c/2c/3c/4c)
HC RELAYS
TYPICAL APPLICATIONS
1. Factory automation equipment and
automotive devices
2. Control panels, power supply
equipment, molding equipment,
machine tools, welding equipment,
agricultural equipment, etc.
3. Office equipment, automatic
vending machines,
telecommunications equipment,
disaster prevention equipment,
copiers, measuring devices, medical
equipment, amusement devices, etc.
4. All types of household appliance
FEATURES
1. Standard type, Amber sealed type
and Keep type
2. Rich lineup includes relays with
operating indication, with diode and
with CR circuit
3. Full range of types
Plug-in type, PC board type and TM
type
4. Sockets and terminal sockets are
available.
With CR circuit
type
Keep relay
With diode
type
Standard
type
Amber sealed
type
RoHS compliant

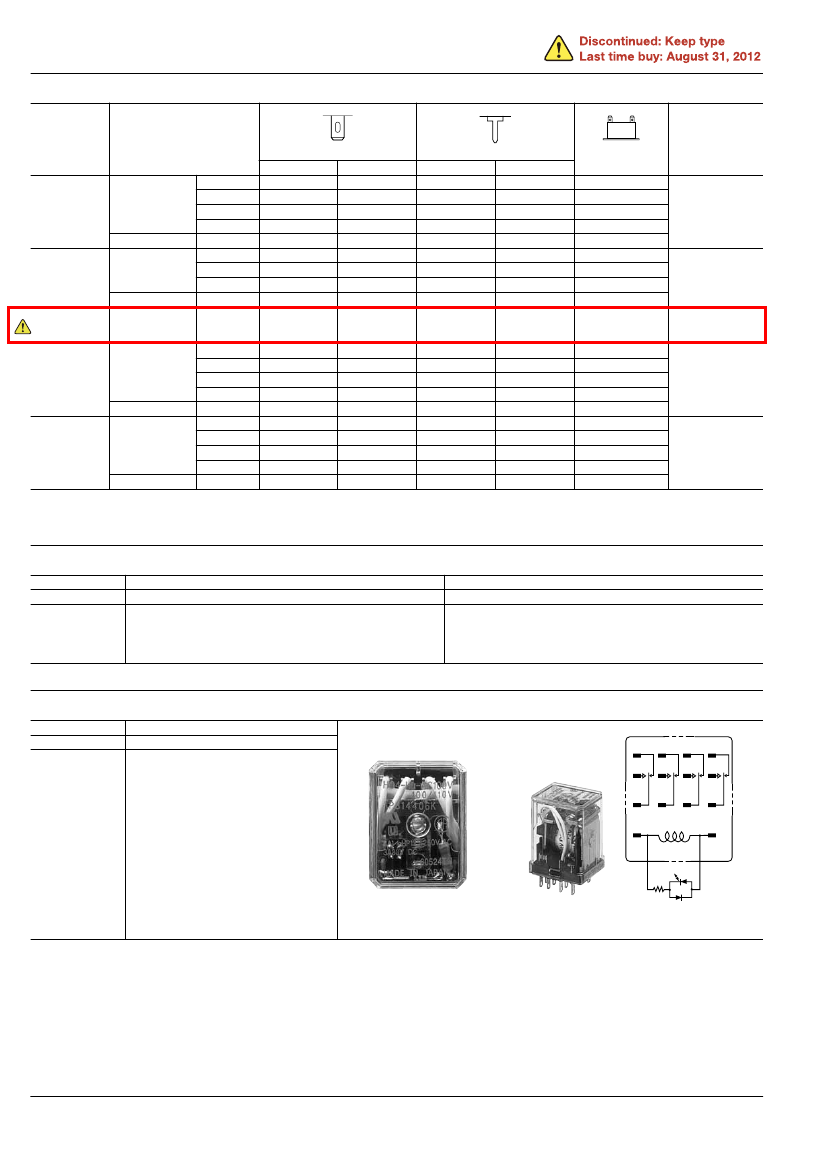

ORDERING INFORMATION
HC
Contact arrangement
1: 1 Form C
2: 2 Form C
3: 3 Form C
4: 4 Form C
4D: Bifurcated contact (twin)
Nil: Standard type
E: Amber sealed type (Only 1 Form C and 2 Form C)
ED: Amber sealed type bifurcated contact (twin) (Only 4 Form C)
K: Keep type
Terminal arrangement
H:
Plug-in type
HL: Plug-in with LED indication
L:
Plug-in with LED indication (Amber sealed type)
HP: PC board type
PL: PC board with LED indication
HPL: PC board with LED indication (Amber sealed type)
HTM: TM type
Nominal coil voltage
AC 6, 12, 24, 48, 100 (100/110), 120 (110/120), 200 (200/220), 240 (220/240) V
DC 6, 12, 24, 48, 100 (100/110) V
Surge suppression
D: With diode R: With CR curcuit
Contact material
Contact material
Contact arrangement
1 Form C
2 Form C
3 Form C
4 Form C
4-pole bifurcated (twin)
AgSnO
2
type
F
F
F
Nil
Nil
AgNi type
Notes: Certified by UL and CSA (except for keep type)
Please consult us about VDE (1 Form C, 2 Form C, and 4 Form C only) and TV-3 (1 Form C and 2 Form C only) approved products.
ASCTB4E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
