240-066H-26PPCDBM-N: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size408KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

240-066H-26PPCDBM-N Overview

D Subminiature Connector

240-066H-26PPCDBM-N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-24308
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STAINLESS STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

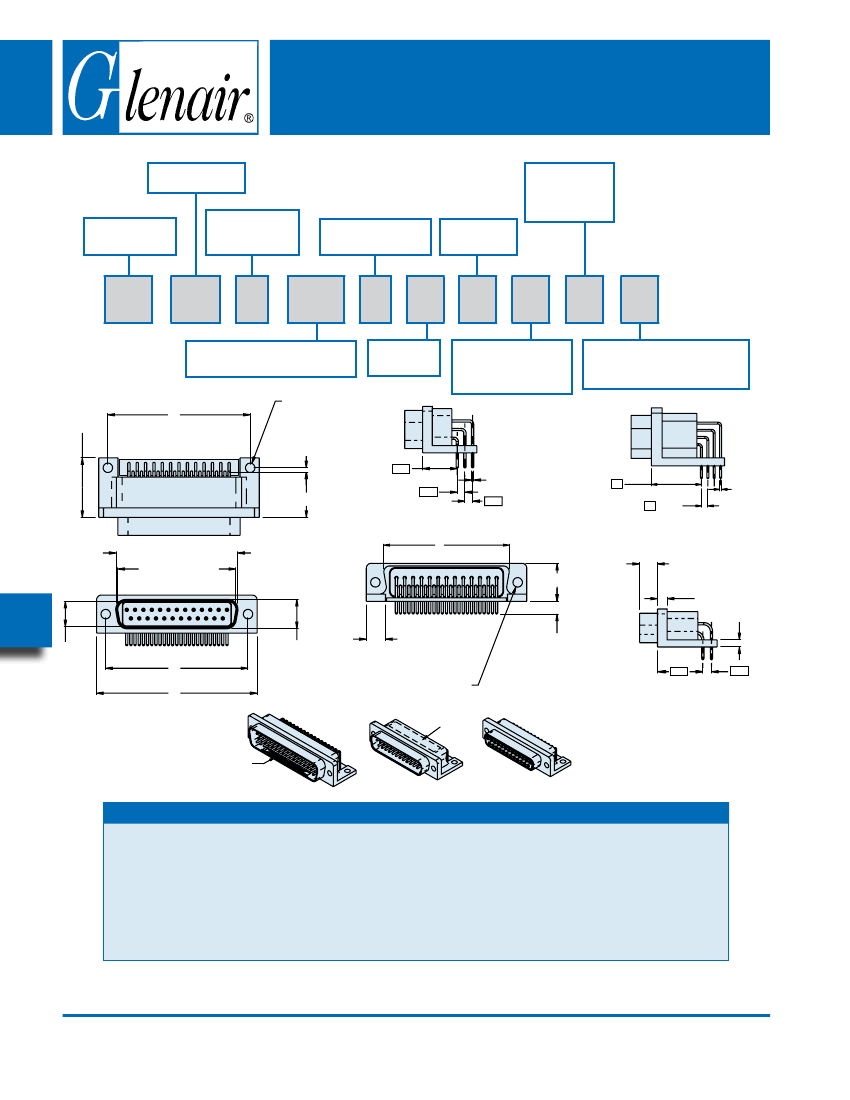

D-Subminiatrure

Connectors

MIL-C-2483 Type

Filter Connector

Product Code

Contact Density

= Standard

= High

240-066

D-Subminiature Connector, Right Angle Mount

EMI Filtered (MIL-DTL-24308 Type)

Footprint Type

= Mil-Spec

= European

(See Table V)

Shell Material/Finish

(See Table II)

Filter Value

(See Table IV)

240 - 066

S - 15P

M - G

Shell to Shell Grounding

= With Ground (Plug/Pin Only)

= No Ground

Shell Size and Contact Type

(See Table I)

Filter Value

(See Table III)

Mounting Options

= Through Hole

= 4-40 Insert

= Metric Thread (M3)

Ø.122 +.003

-.002

Inboard Contact Row

To Mounting Hole

(G)

Ø.030 ±.002

Ø.020 ±.002 For High Density

H Typ

3 Pl

HIGH DENSITY 78 POSITION

Ø.020 ±.002

HIGH DENSITY (15 THRU 62) AND STANDARD DENSITY 50 POS

B Socket (Outside)

B Pin (Inside)

.233 +.003 For Plug

-.004

.243 ±.005 For Receptacle

.125 (Through Hole)

.142 (Threaded Hole)

.093

D Pin

(Inside)

D Socket

(Outside)

.250 (6.4)

Ø120/.125 or

4-40 UNC Threaded Insert

Typ 2 Pl

See Note 2

.186±.020

(4.7 ± 0.5)

STANDARD DENSITY (9 THRU 37)

G-grounding

On Top

And Bottom

Edges

(Plug Only)

PLUG VIEW

RECEPTACLE VIEW

APPLICATION NOTES

1. Materials/Finishes:

Shells - See Table II

Insulators - High grade rigid dielectric/N.A.

Contacts - Copper Alloy/Gold Plated

2. Assembly to be indentified with date code, cage code, Glenair P/N,

and serial number.

3. Dimensions B and D taken from inside of shell for

Pin/Plug and outside for Socket/Receptacle.

4. Electrical Performance:

Dielectric withstanding voltage class A and B: 100

VDC, all others: 500 VDC

Insulation Resistance: 5,000 megohms @ 100 VDC

Current Rating Standard Density: 7.5 Amps max.

Current Rating High Density: 5 Amps maximum

5. Metric dimensions (mm) are indicated in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
