HDSP Series
Low Current Seven Segment Displays
Data Sheet
HDSP-335x Series, HDSP-555x Series
HDSP-751x Series, HDSP-A10x Series
HDSP-A80x Series, HDSP-A90x Series
HDSP-E10x Series, HDSP-F10x Series
HDSP-G10x Series, HDSP-H10x Series
HDSP-K12x, K70x Series, HDSP-N10x Series
Description
These low current seven segment displays are designed
for applications requiring low power consumption.
They are tested and selected for their excellent low
current characteristics to ensure that the segments are
matched at low currents. Drive currents as low as 1
mA per segment are available.
Pin for pin equivalent displays are also available in a
standard current or high light ambient design. The
standard current displays are available in all colors and
are ideal for most applications. The high light ambient
displays are ideal for sunlight ambients or long string
lengths. For additional information see the 7.6 mm
Micro Bright Seven Segment Displays, 10 mm Seven
Segment Displays, 7.6 mm/10.9 mm Seven Segment
Displays, 14.2 mm Seven Segment Displays, 20 mm
Seven Segment Displays, or High Light Ambient Seven
Segment Displays data sheets.
Features
•
Low Power Consumption
•
Industry Standard Size
•
Industry Standard Pinout
•
Choice of Character Size
7.6 mm (0.30 in), 10 mm (0.40 in), 10.9 mm (0.43
in), 14.2 mm (0.56 in), 20 mm (0.80 in)
•
Choice of Colors
AlGaAs Red, High Efficiency Red (HER), Yellow,
Green
•
Excellent Appearance
Evenly Lighted Segments
±50° Viewing Angle
•
Design Flexibility
Common Anode or Common Cathode
Single and Dual Digit
Left and Right Hand Decimal Points
±1. Overflow Character
•
Categorized for Luminous Intensity
Yellow and Green Categorized for Color
Use of Like Categories Yields a Uniform Display
•
Excellent for Long Digit String Multiplexing
Devices
AlGaAs
HDSP-
A101
A103
A107
A108
F101
F103
F107
F108
G101
G103
E100
E101
E103
E106
H101
H103
H107
H108
K121
K123
N100
N101
N103
N105
N106
HER
HDSP-
7511
7513
7517
7518
Yellow
HDSP-
A801
A803
A807
A808
Green
HDSP-
A901
A903
A907
A908
Description
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Common Anode ±1. Overflow
7.6 mm Common Cathode ±1. Overflow
10 mm Common Anode Right Hand Decimal
10 mm Common Cathode Right Hand Decimal
10 mm Common Anode ±1. Overflow
10 mm Common Cathode ±1. Overflow
10 mm Two Digit Common Anode Right Hand Decimal
10 mm Two Digit Common Cathode Right Hand Decimal
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal ±1. Overflow
[1]
14.2 mm Common Anode Right Hand Decimal
14.2 mm Common Cathode Right Hand Decimal
14.2 mm Common Anode ±1. Overflow
14.2 mm Common Cathode ±1. Overflow
14.2 mm Two Digit Common Anode Right Hand Decimal
14.2 mm Two Digit Common Cathode Right Hand Decimal
20 mm Common Anode Left Hand Decimal
20 mm Common Anode Right Hand Decimal
20 mm Common Cathode Right Hand Decimal
20 mm Common Cathode Left Hand Decimal
20 mm Universal ±1. Overflow
[1]

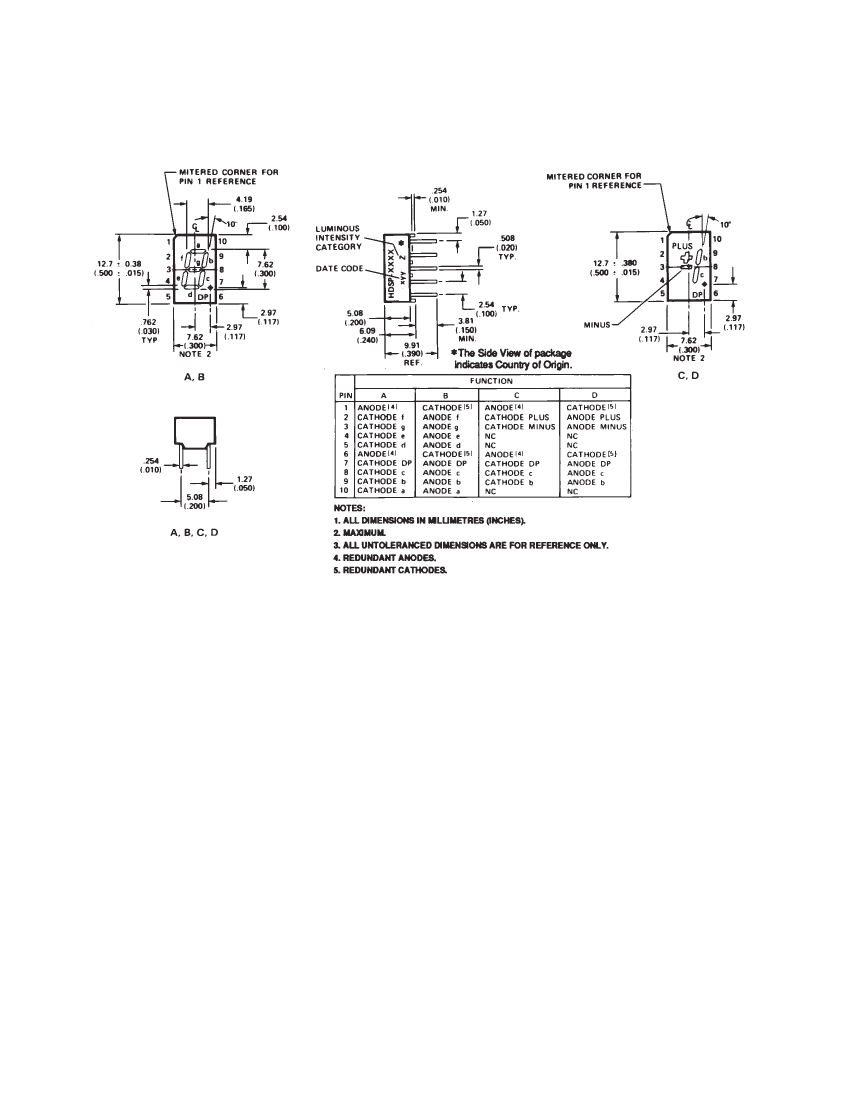

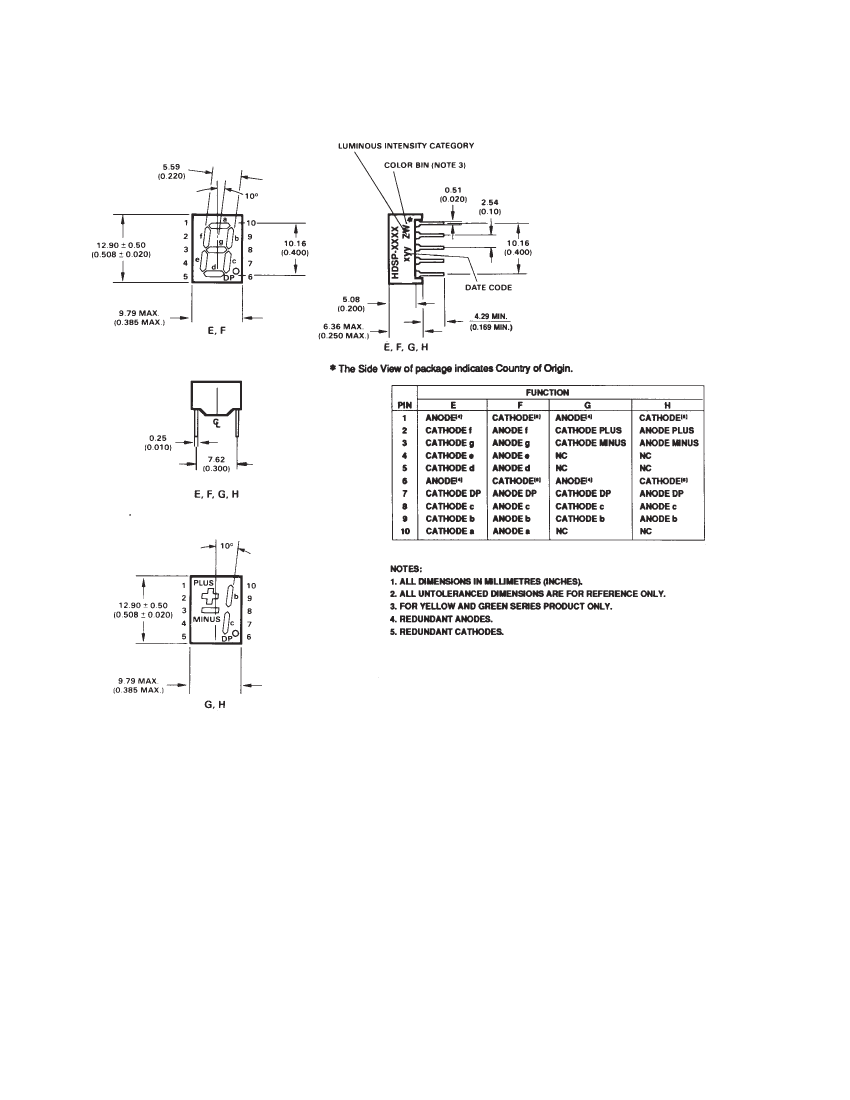

Package
Drawing
A
B
C
D
E
F
G
H
X
Y
I
J
K
L
M
N
O
P
R
S
Q
T
U
V
W
3350
3351
3353
3356
5551
5553
5557
5558
K701
K703
Note:
1. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagrams L or W.
2
Part Numbering System
5082 - x xx x - x x x xx
HDSP - x xx x - x x x xx
Mechanical Options
[1]
00: No mechanical option
Color Bin Options
[1,2]
0: No color bin limitation
Maximum Intensity Bin
[1,2]
0: No maximum intensity bin limitation
Minimum Intensity Bin
[1,2]
0: No minimum intensity bin limitation
Device Configuration/Color
[1]
G: Green
Device Specific Configuration
[1]
Refer to respective datasheet
Package
[1]
Refer to Respective datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Agilent representative for details.
2. Bin options refer to shippable bins for a part-number. Color and Intensity Bins are typically restricted to 1 bin per tube (exceptions may
apply). Please refer to respective datasheet for specific bin limit information.
3
