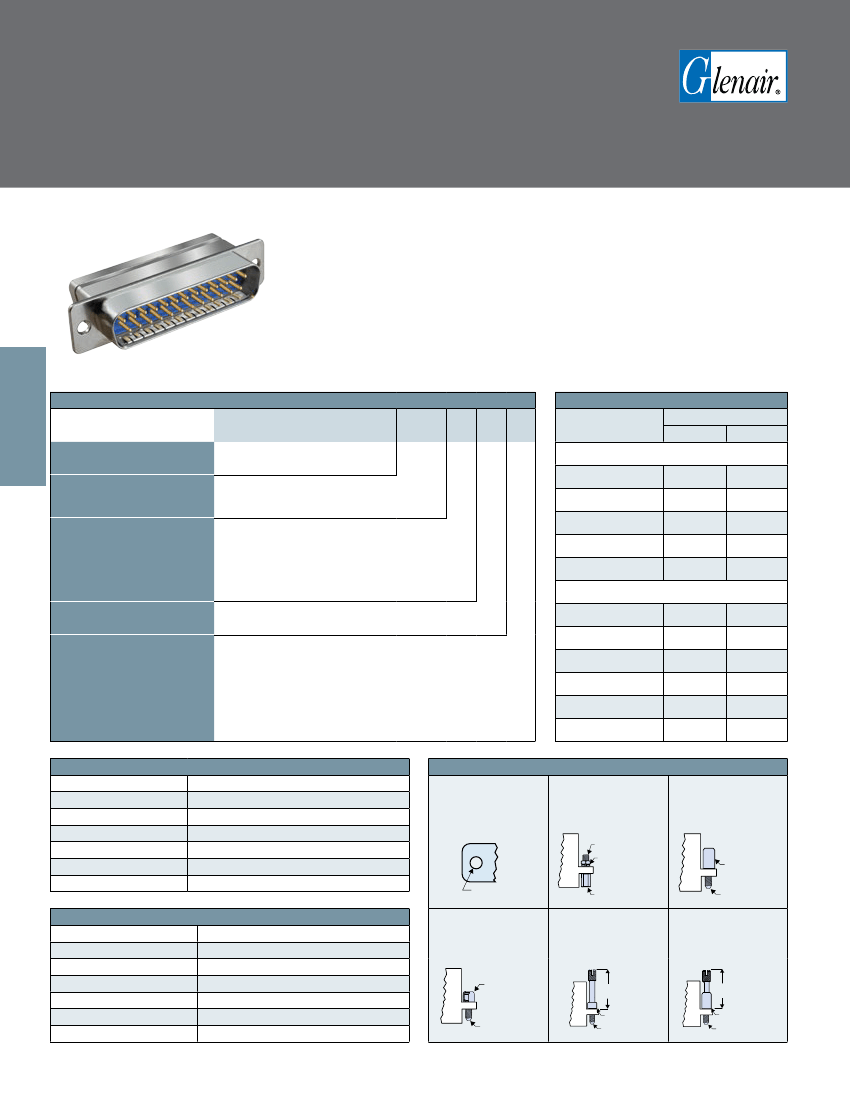

series 28
HiPer-D Standard and High-Density Connectors
280-018P pin connectors with standard M24308 type mounting flange,
crimp termination
HiPer-D pin connectors feature crimp, rear-releaseable size #20 or #22 contacts.
Intermateable with standard M24308-type D-Subminiature connectors, the HiPer-D
features a rugged machined aluminum shell, waterproof sealing and optional ground
springs for improved resistance to electromagnetic interference. Gold-plated size
#20 contacts conform to M39029/64-369 and accept #20 to #24 AWG wire. Gold-
plated size #22 contacts conform to M39029/58-360 and accept #22 to #28 AWG
wire. Contacts are packaged with connector. Terminate contacts with crimp tools
purchased separately. Glass-reinforced thermoset epoxy insulators, copper alloy
retention clips. Fluorosilicone face seal and rear grommet meet IP67 immersion
requirement. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
B
Ordering Information
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
280-018P
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
G
= Supplied with EMI Ground Spring
N
= No Ground Spring
N
= No Hardware (Through-Hole)
P
= #4-40 Female Jackpost
L
= Jackscrew, Hex Head, Low Profile
K
= Jackscrew, Slot Head, Extended Length
S
= Screwlock, Male, Hex Head, Low Profile
T
= Screwlock, Male, Slot Head, Extended Length
Shell Size - Contact Arrangements
3S25
ME
G
P
Shell Size-
Contact Arr.
1S9
2S15
3S25
4S37
5S50
Contact Size and Qty
#20
9
15
25
37
50
High Density
1H15
2H26
3H44
4H62
5H78
6H104
15
26
44
62
78
104
#22
280-018P
Standard Density
Shell Finish
ground Spring
Mating hardware
Materials and Finishes
Shell
Aluminum alloy
Contacts
Copper alloy, 50 microin. gold plated
Insulators
Thermoset epoxy
Retention Clips
Copper alloy
Grommet and Seal
Fluorosilicone rubber
Copper alloy, nickel plated
EMI Spring
Hardware
300 series stainless steel
Specifications
Current Rating
#22 5 AMPS, #20 7.5 AMPS
Test Voltage
1000 VAC RMS
Insulation Resistance
5000 megohms minimum
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
300 g.
Vibration, Random
43.92 g.
B-4
Mating hardware
Thru-Hole
No Hardware
N
Female Jackpost
#4-40 UNC-2A
NUT AND
LOCKWASHER
P
Captive Screwlock,
Hex Head
S
RETAINER
#4-40 UNC-2A
.115/.125
(2.92/3.18)
#4-40 UNC-2B
Captive Jackscrew, Slot-Head Extended Slot-Head Extended
Hex Head
Jackscrew
Captive Screwlock
RETAINER
1.1 (28)
MAX
RETAINER
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
L
K
T
#4-40 UNC-2A
#4-40 UNC-2A
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Standard and High-Density Connectors
280-018P pin connectors with standard M24308 type mounting flange,
crimp termination

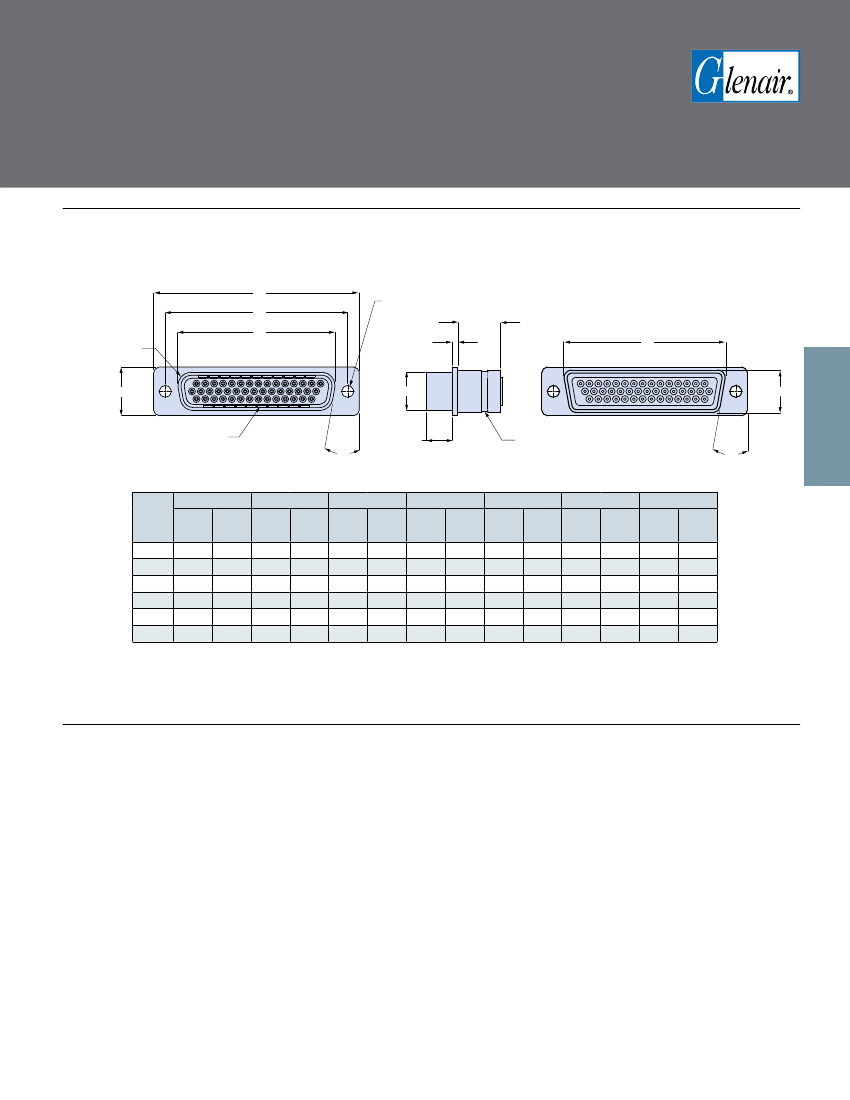

280-018P DIMENSIONS
A
C
D
REF .134R
(3.40)
B
Ø .120 (3.05)
TYP
.049
(1.24)
E
.435
(11.05)
F
G
OPTIONAL GROUND
SPRING 2 PLCS
.262 ± .005
10° (6.65 ± 0.13)
TYP
BACKSHELL
MOUNTING
GROOVE
B
10°
TYP
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.213 30.81
1.541 39.14
2.088 53.04
2.729 69.32
2.635 66.93
2.729 69.32
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.605 15.37
.668 16.97
in
A
mm
in
B
mm
C Basic
in.
mm
± .005
± 0.13
± .005
± 0.13
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
.389
.389
.389
9.88
9.88
9.88
in
D
mm
in
E
mm
F Max.
in.
mm
G Max.
in.
mm
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
.769 19.53
1.093 27.76
1.635 41.53
2.282 57.96
2.188 55.58
2.312 58.72
.432 10.97
.432 10.97
.432 10.97
.432 10.97
.544 13.82
.606 15.39
.389 9.88
.501 12.73
.563 14.30
NOTES
1.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no minimum
order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D Contacts and Crimp Tools
for
contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
HiPer-D connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
2.
3.
4.
5.
B-5
