801-026-AA4NF5-3NA-72 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-026-AA4NF5-3NA-72

801-026-AA4NF5-3NA-72: DescriptionInterconnection Device; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

801-026-AA4NF5-3NA-72 Overview

Interconnection Device

801-026-AA4NF5-3NA-72 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	SHIELDED, THERMOPLASTIC POLYURETHANE, 94V-0
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

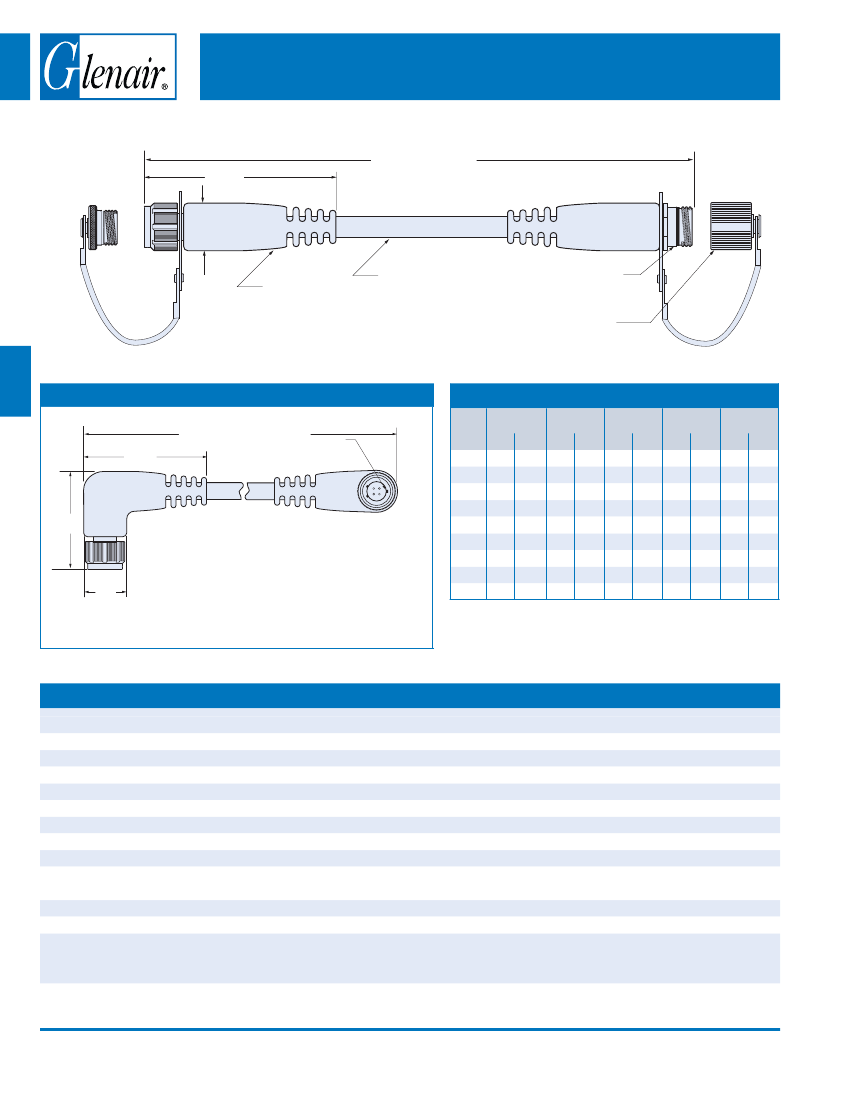

Series 801 “Mighty Mouse”

Double-Start ACME Thread

Series 801 Cordsets For Harsh Environments

Glenair’s “Mighty Mouse” overmolded

cordsets offer watertight sealing and

excellent cold temperature flexibility.

These cables are 100% tested and

ready to use. Standard overmolded

cables feature polyurethane jackets

with flexible strain reliefs.

Two Jacket Types

– standard

extruded Estane polyurethane jacket

resists abrasion and chemicals. Or

choose low smoke / zero halogen

polyurethane jackets for compliance

with low toxicity regulations.

Shielded

– These cables feature 90%

tinned copper braid coverage. Shields

are terminated directly to connectors

with

BAND-IT®

straps.

Simpliﬁed Ordering, No Minimums

ASAP

cordsets are made-to-order

from stocked connectors and cable.

Choose #22 or #24 AWG cable with

standard Estane jacket for best

availability.

Overmolded Cordset

HOW TO ORDER

Sample Part Number

801-025

Series

801-025

Overmolded

Cordset,

Shielded, with

Polyurethane

Cable Jacket

-A

Wire

Size

Shell Material /

Finish

7-10

Insert Arr.

5-3

6-4

6-7

7-10

8-13

9-19

10-26

13-37

16-55

17-85

3 #23

4 #23

7 #23

10 #23

13 #23

19 #23

26 #23

37 #23

55 #23

85 #23

-72

Length

Overall

Length In

Inches

12 Inch

Min

End A

End B

Connector Connector

-A

Plug, with

Male Pin

Contacts

Protective Shell

Cover

Key Pos.

Metal

Protective

Covers

Included

Plug, with

Male Pin

Contacts

Normal

#22 AWG

Aluminum / Black

(Std.)

Anodize

#24 AWG

(Std.)

Aluminum /

Electroless

Nickel

Pos. B

-B

Plug, with

Female

Socket

Contacts

Plug, with

Female

Socket

Contacts

801-026

No Covers

Supplied

Pos. C

#26 AWG

Overmolded

Cordset,

Aluminum /

Shielded,

Cadmium with

#28 AWG

-C

with Low

Olive Drab

Smoke/ Zero Receptacle, Receptacle,

Chromate

with

Halogen

Male Pin

Polyurethane

Contacts

Jacket

Aluminum / Zinc-

Nickel with Olive

-D

Drab Chromate

Receptacle, Receptacle,

Pos. D

with Female with Female

Socket

Contacts

ZNU

Aluminum / Zinc-

Nickel with Black

Chromate

Connector

(Single-

Ended)

Stainless Steel /

Passivated

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

D-19

Rev. 05-APR-2007
