947-115

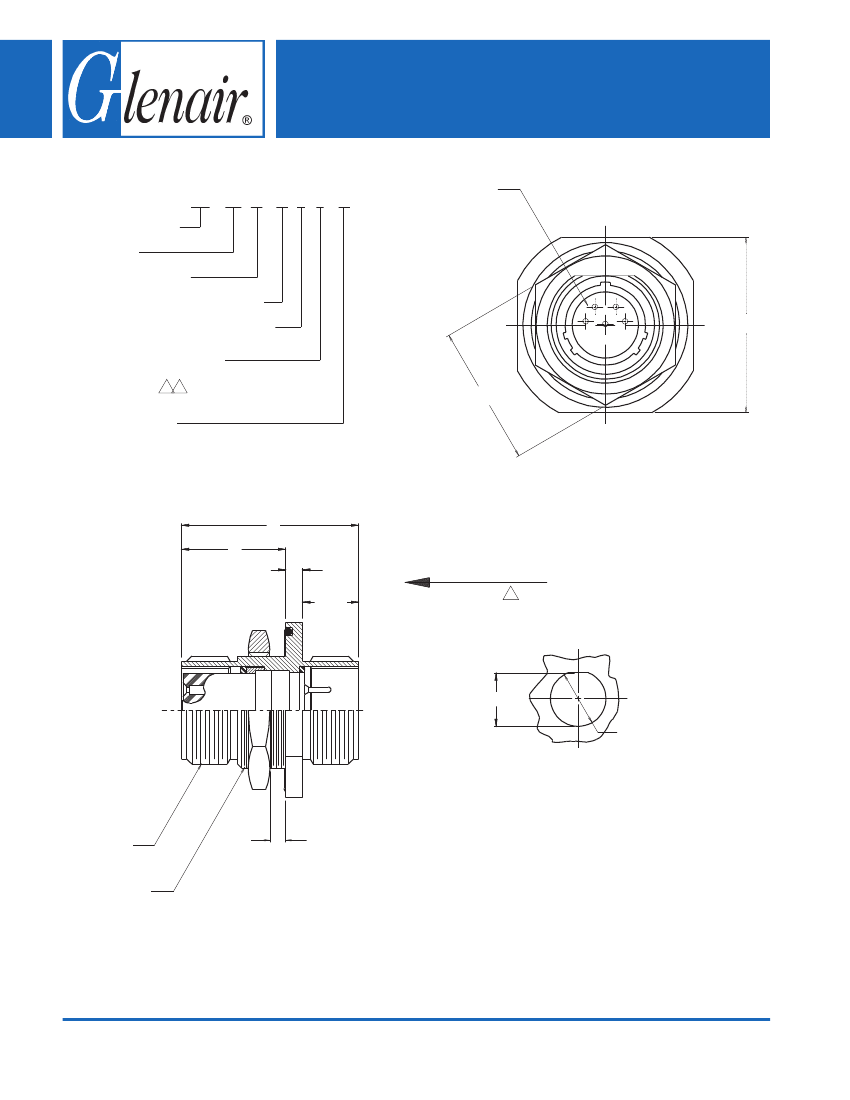

Bulkhead Feed-Thru, Hermetic, Jam Nut Mount
947-115
.250/.500
in
Panel
CONNECTOR, HERMETIC, RECEPTACLE,
MIL-DTL-38999 Series III
BULKHEAD FEEDTHRU JAM NUT,
FOR MIL-C-38999, SERIES III
MIL-DTL-38999
HOW TO ORDER:
EXAMPLE:
PRODUCT SERIES
BASIC NO
SHELL SIZE, TABLE I
INSERT ARRANGEMENT DASH NO
ALTERNATE POSITION, MIL-DTL-38999,
OMIT FOR NORMAL
P = PIN ON JAM NUT SIDE
S = SOCKET ON JAM NUT SIDE
PP = PIN TO PIN 2 3
SS = SOCKET TO SOCKET
DASH NO, TABLE II
PANEL THICKNESS
947 - 115 - 21 - 35 B
J
H
A THREAD
F THREAD
© 2004 Glenair, Inc.
www.glenair.com
P
01
SEE MIL-DTL-38999 FOR
INSERT ARRANGEMENTS
C
B
.150
MAX
.565
REF
DIRECTION OF
PRESSURE 4
E
D DIA
RECOMMENDED PANEL CUT-OUT
G MAX. PANEL
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-56
.250/.500
in
Panel
MIL-DTL-38999 Series III
SHELL
A THREAD
D
E
F THREAD
B
C DIM
x1-6g-0.100R
SIZE 0.1P-0.3L-TS-2
MAX
DIM
DIA
DIM
9
.6250
.875 (22.2) 1.09 (27.7) .698 (17.7) .670 (17.0)
M17
M20
11
.7500
1.000 (25.4) 1.28 (32.5) .822 (20.9) .770 (19.6)
13
.8750
1.250 (31.8) 1.40 (35.6) 1.010 (25.6) .955 (24.3)
M25
15
1.0000
1.375 (34.9) 1.53 (38.9) 1.135 (28.8) 1.085 (27.6)
M28
17
1.1875
1.500 (38.1) 1.66 (42.2) 1.260 (32.0) 1.210 (30.7)
M32
19
1.2500
1.625 (41.3) 1.84 (46.7) 1.385 (35.2) 1.335 (33.9)
M35
21
1.3750
1.750 (44.5) 1.97 (50.5) 1.510 (38.4) 1.460 (37.1)
M38
23
1.5000
1.875 (47.6) 2.09 (53.1) 1.635 (41.5) 1.585 (40.3)
M41
25
1.6250
2.000 (50.8) 2.21 (56.1) 1.760 (44.7) 1.710 (43.4)
M44
TABLE I: CONNECTOR DIMENSIONS
DASH
G
H
J
NO
MAX
MAX
MAX
01 .250 (6.4) 1.08 (27.4) 1.79 (45.5)
02 .500 (12.7) 1.33 (33.8) 2.04 (51.8)
TABLE II: PANEL THICKNESS
NOTES:
1. ASSEMBLY IDENTIFIED WITH MANUFACTURER'S NAME AND P/N, SPACE PERMITTING.
2 FOR PIN/PIN AND SKT/SKT, SYMMETRICAL LAYOUTS ONLY,
CONSULT FACTORY FOR AVAILABLE INSERT ARRANGEMENTS.
3 POWER TO A GIVEN CONTACT ON ONE END WILL RESULT
IN POWER TO CONTACT DIRECTLY OPPOSITE, REGARDLESS
OF IDENTIFICATION LETTER.
4 HERMETICITY = LESS THAN 1 x 10 CC/SEC AT ONE ATMOSPHERE. NOT FOR USE
IN LIQUID ATMOSPHERE.
5. ELECTRICAL SAFETY LIMITS MUST BE ESTABLISHED BY USER, PEAK VOLTAGE,
SWITCHING SURGE, TRANSIENT, ETC.. SHOULD BE USED TO DETERMINE THE
SAFETY APPLICATION.
6. MATERIAL/FINISH:
SHELL, LOCK RING, JAM NUT - STAINLESS STEEL/PASSIVATE
CONTACTS - COPPER ALLOY/GOLD PLATE AND ALLOY 52/GOLD PLATE
INSULATORS - HIGH-GRADE RIGID DIELECTRIC/N. A. AND FULL GLASS.
SEALS - SILICONE/N. A.
-6
© 2004 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-57
