IPT 00 J
Front Panel Mount Square Flange Receptacle
with Long Backshell and Cable Clamp
IPT Series
Bayonet Lock
Connectors
IPT 00 J 18-11 S Z C XX
MIL-C-26482
Series l Type
00 - Front Panel Mount
Square Flange Receptacle
Connector/Backshell Class
J - Environmental with Long Backshell
and Cable Clamp
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
M
H
B
G
APPLICATION NOTES
1. Front panel mount square flange receptacle with long backshell, incorporated metal sleeve, gland seal and cable clamp; through
mounting holes.
2. Connector/Backshell Class “J” (environmental)––Wire sealing grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-32
with Long Backshell and Cable Clamp

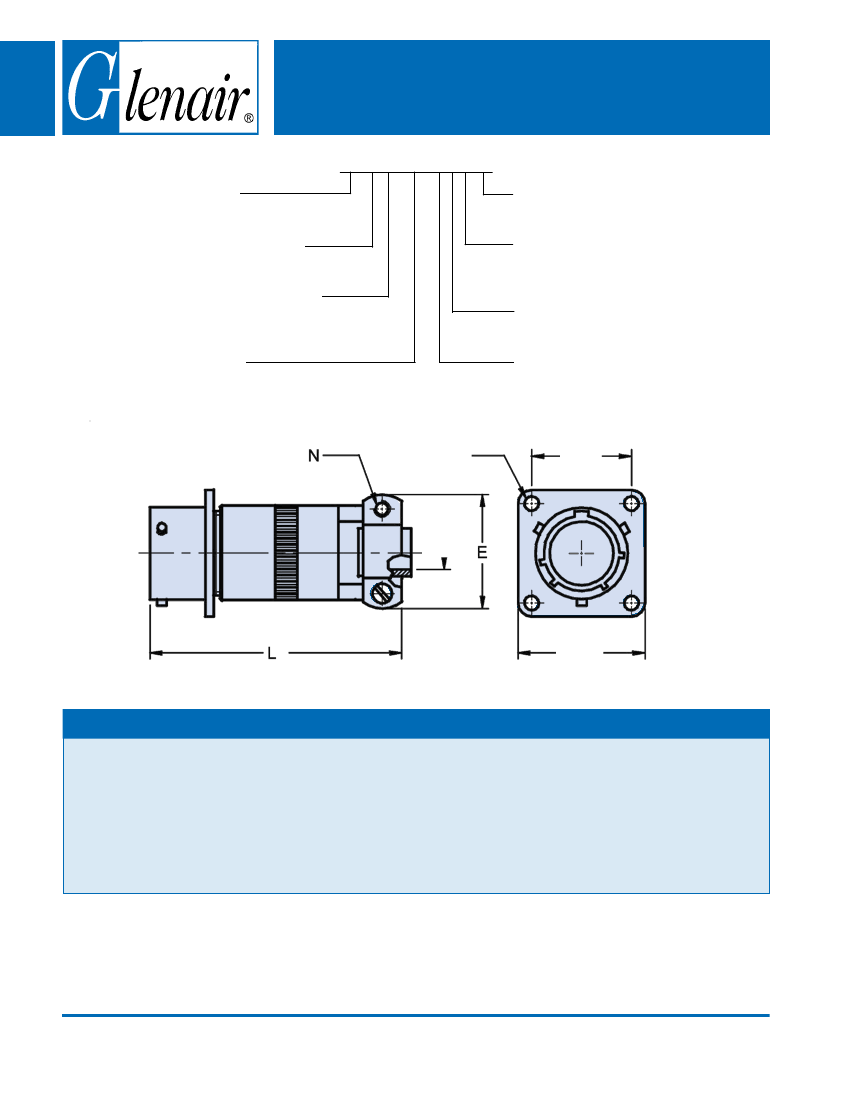

TABLE I: DIMENSIONS
