HCD360/FSCNFREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> HCD360/FSCNFREQ

HCD360/FSCNFREQ: DescriptionSine Output Oscillator, 5MHz Min, 20MHz Max; CategoryPassive components oscillator; File Size62KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

HCD360/FSCNFREQ Overview

Sine Output Oscillator, 5MHz Min, 20MHz Max

HCD360/FSCNFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compli
Ageing	0.0002 PPM/DAY
Frequency Adjustment - Mechanical	NO
frequency stability	0.005%
Frequency Stability - Voltage	0.001 ppm
input power	1.2 W
Manufacturer's serial number	HCD360
Installation features	THROUGH HOLE MOUNT
offset frequency	1 kHz
Maximum operating frequency	20 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.5 V
Oven power supply voltage	12V
phase noise	-150 dBc/Hz
physical size	36.1mm x 27.2mm x 19.4mm
Nominal supply voltage	12 V
surface mount	NO
Preheating power	5 W
Maximum warm-up time	10 Minute

Preview

Download Datasheet

View All

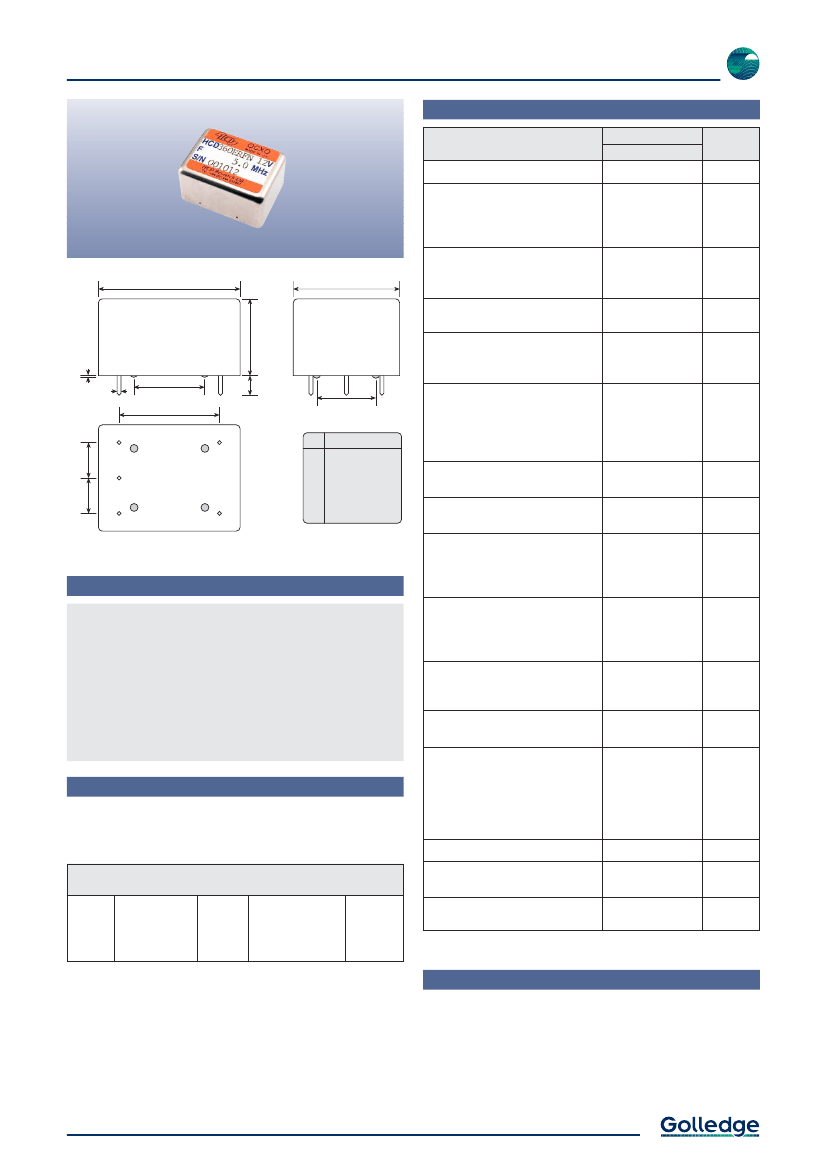

OCXO Sine Output

Specifications

HCD360

Parameters

Frequency range:

5.0 ~ 20.0MHz

Ageing per day (at despatch):

< ±1x10

-9

< ±5x10

-10

< ±2x10

-10

Frequency stability:

< ±5x10

-8

per year

< ±1x10

-9

per 10% change in V

Short term stability:

< ±1x10

-11

over 1 sec

Product

HCD360

Option

Codes

36.10 (max)

27.20 (max)

19.40

(max)

0.50

0.80Ø

17.80

25.40

5.00

15.00

Temperature stability:

< ±2x10

-8

< ±1x10

-8

< ±5x10

-9

8.90

BOTTOM VIEW

CONNECTION

Freq adjustment

Ref voltage out

Supply

RF output

Ground & case

Operating temperature range:

0 to +50°C

-10 to +60°C

-20 to +70°C

-40 to +70°C

Storage temperature range:

-40 to +90°C

Output waveform:

Sine wave, 7dBm (±2dBm) into 50

Frequency adjustment:

±5x10

-7

(typ) over +0.5 to +7.0V

(sufficient for 10 years ageing min)

Stabilised +7.0V supply provided

Supply voltage (V

+12V (±0.5V)

+15V (±0.5V)

+18V (±0.5V)

Power consumption:

5.0W max at switch on

1.2W typ when stabilised at 25°C

Warm up:

< ±1x10

-8

after 10mins at +20°C

Phase noise (@ 10.0MHz):

< -125 dBc/Hz @ 10Hz

< -135 dBc/Hz @ 100Hz

< -150 dBc/Hz @ 1kHz

< -155 dBc/Hz @ 10kHz

< -155 dBc/Hz @ 50kHz

Harmonics:

Shock:

< -30dB wrt carrier

IEC 68-2-27 Test Ea

50G for 11ms

Scale 1:1

Features

Temperature stability down to 5ppb

Single 12V supply (15v or 18V optional)

Compact package

Standard European IEC CO-08 pin-out

Custom options available

Standard Models

The table shows the most common models. In most cases

selecting one of these models will ensure the best combina-

tion of price / performance and availability.

Freq

5.0MHz

10.0MHz

Specification

HCD360/DPFN

HCD360/ERFN

HCD360/DPFN

HCD360/ERFN

Ageing

per day

±1x10

-9

±5x10

-10

±1x10

-9

±5x10

-10

Temperature

stability

±2x10

-8

-20+70°C

±1x10

-8

-20+70°C

±2x10

-8

-20+70°C

±1x10

-8

-20+70°C

Part No

MS06935

MS06936

MS06933

MS06522

Vibration:

IEC 68-2-06 Test Fc

10-55Hz, 1.5mm. 55-500Hz, 10G

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Part No, or product name + option codes + frequency

eg:

HCD360/DPFN 10.0MHz

HCD360/ERFN 5.0MHz

Option code X (eg HCD360/X) denotes a custom specification.

Tel:

+44 1460 256 100

19 May 2004

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
