SCOCXOHSW/TARD110.00MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> SCOCXOHSW/TARD110.00MHZ

Preview

SCOCXOHSW/TARD110.00MHZ: DescriptionSine Output Oscillator,; CategoryPassive components oscillator; File Size144KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SCOCXOHSW/TARD110.00MHZ Overview

Sine Output Oscillator,

SCOCXOHSW/TARD110.00MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
package instruction	SMD, 5 PIN
Reach Compliance Code	compli
Ageing	0.3 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.05%
Frequency Stability - Voltage	0.1 ppm
input power	0.396 W
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.796 V
Oven power supply voltage	3.3 V
physical size	25.4mm x 22.0mm x 10.5mm
Maximum supply voltage	3.45 V
Minimum supply voltage	3.15 V
Nominal supply voltage	3.3 V
surface mount	YES
Preheating power	0.99 W
Maximum warm-up time	2 Minute

Preview

Download Datasheet

View All

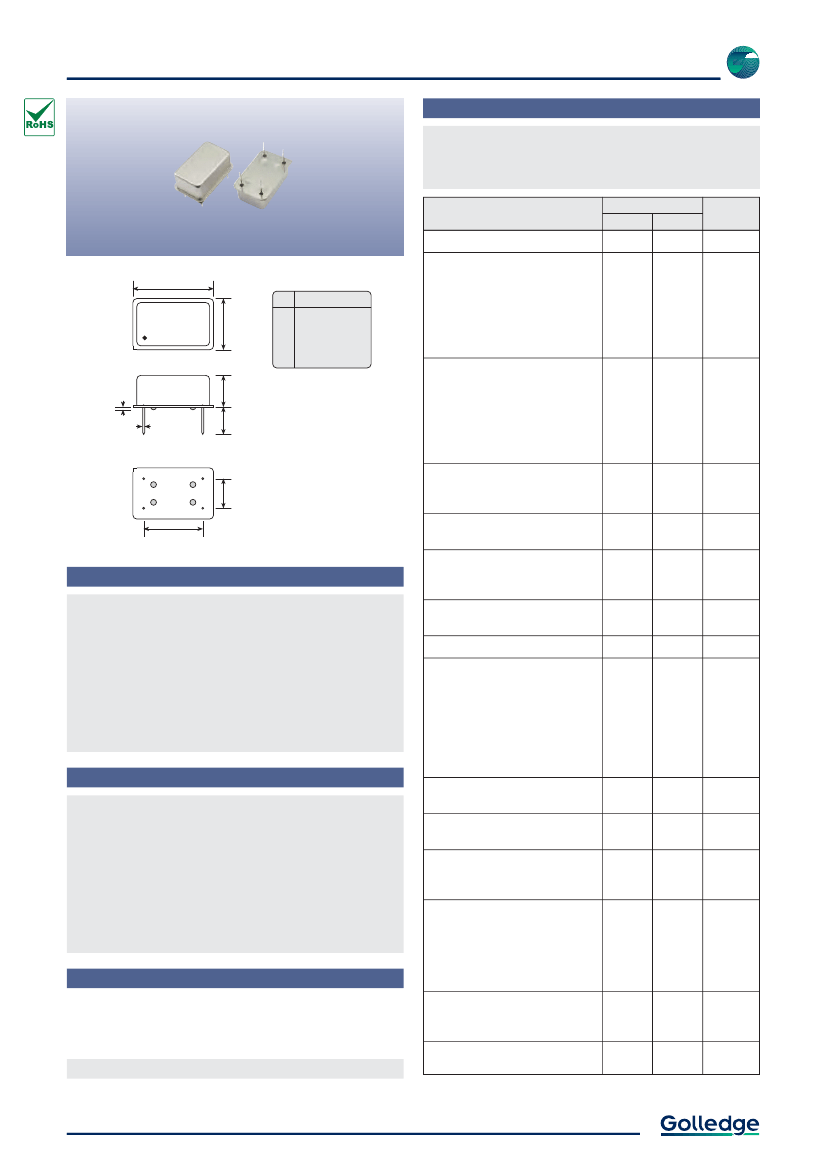

3.3 & 5.0V OCXO Sine Output Low Phase Noise

Specifications

2011/65/EU

SCOCXOHS

SCOCXOHSW: 3.3V supply

SCOCXOHSV: 5.0V supply

Parameters

Frequency range:

20.14

±0.08

12.52

±0.08

1

7

8

14

7.80

±0.20

6.35

±0.50

CONNECTION

Freq adjustment

or Ground

Variant

W

V

Option

Codes

10.0 ~ 120MHz



75

50

150

75

250

100



2

-6







50

25

100

50

150

100



4

-4







V

R

A

B

A

TA

B

TB

C

TC

Ground

Output

Supply

Temperature stability (±ppb max):

0 to +60°C

-20 to +70°C

-40 to +85°C

Frequency stability (ppb):

±0.3ppm max first year (≤40MHz)

±2.5ppm max in 10 years (≤40MHz)

±1.0ppm max first year (>40MHz)

±4.0ppm max in 10 years (>40MHz)

±0.1ppm max vs V

DD

±10ppb max vs load ±5%

Short term stability:

1x10

-10

max,

τ

0.1 to 30s

5x10

-11

typ at 1s

Storage temperature range:

-55 to +125°C

Output waveform:

Sinewave 50Ω

Harmonics -15dBc typ

Spurii -70dBc max

Level (dBm min):

Start up time:

20MHz

>20MHz

5ms max

0.80

0.46Ø

1

14

7

7.62

8

15.24

Features



Excellent phase noise perforamce @ 100MHz

-160dBc noise floor @ 10.0MHz

Fundamental mode frequencies up to 120MHz

Compact 14-pin DIL package (SMD optional)

High shock and vibration resistance

Example Applications

Frequency adjustment:

±2.5ppm min

≤

40MHz

±4.0ppm min > 40MHz

Control voltage 0V ~ 3.3V, pin 1

Control voltage 0.5V ~ 5.0V, pin 1

Variable resistor 0~10kΩ, pins 1 to 7

None (int accuracy ±1.0ppm)

None (int accuracy ±0.5ppm)

Supply voltage (V

DD

):

+3.3V (±0.15V)

+5.0V (±0.20V)

Input current (mA max):

@ +25°C

@ -20°C



Digital switching

Telecomm transmission

SONET, SDH, DWDM, FDM/36, WIMAX

Airborne equipment

Battery operated systems

120

170

30

120





80

120

10

60





specify

Warm up time (secs):

current 300mA max @ 25°C

to within ±0.1ppm @ 25°C

Phase noise (dB typ @ 100MHz):

-90dBc/Hz @ 10Hz

-120dBc/Hz @ 100Hz

-140dBc/Hz @ 1kHz

-150dBc/Hz @ 10kHz

-155dBc/Hz @ 100kHz

Shock & vibration:

5,000G, 0.3ms ½-sine

10.0 ~ 2,000Hz, 20G

Package:

Through hole 14 pin DIL

SMD options D1 or D2

Ordering Information

Product name + option codes + frequency

eg:

SCOCXOHSV/TBR 10.00MHz

5.0V, ±50ppb -20+70°C

SCOCXOHSW/CVD1 100MHz

3.3V, ±250ppb -40+85°C, SMD D1

Option code X (eg SCOCXOHSV/X) denotes a custom spec.



Product is NOT designed to withstand 260°C reflow processing



Standard.



Optional - Please specify required code(s) when ordering

Tel:

+44 1460 256 100

17 Jul 2015

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com

SCOCXOHSW/TARD110.00MHZ Related Products

	SCOCXOHSW/TARD110.00MHZ	SCOCXOHSW/BVD2120MHZ	SCOCXOHSV/BVD2120MHZ	SCOCXOHSV/CVD2120MHZ	SCOCXOHSV/TAVD2120MHZ	SCOCXOHSW/CVD2120MHZ	SCOCXOHSV/TABD1100MHZ	SCOCXOHSW/BVD240.00MHZ
Description	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,	Sine Output Oscillator,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	unknown	unknown	unknown	unknown	unknown	compliant	compliant
Ageing	0.3 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	0.3 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	0.05%	0.15%	0.1%	0.15%	0.025%	0.25%	0.025%	0.15%
Frequency Stability - Voltage	0.1 ppm	0.1 ppm	0.1 ppm	0.1 ppm	0.1 ppm	0.1 ppm	0.1 ppm	0.1 ppm
input power	0.396 W	0.396 W	0.4 W	0.4 W	0.4 W	0.396 W	0.4 W	0.396 W
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	10 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	100 MHz	40 MHz
Maximum operating temperature	60 °C	70 °C	70 °C	85 °C	60 °C	85 °C	60 °C	70 °C
Minimum operating temperature	-	-20 °C	-20 °C	-40 °C	-	-40 °C	-	-20 °C
Oscillator type	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Output impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Output level	0.796 V	0.317 V	0.399 V	0.399 V	0.399 V	0.317 V	0.399 V	0.317 V
Oven power supply voltage	3.3 V	3.3 V	5 V	5 V	5 V	3.3 V	5 V	3.3 V
physical size	25.4mm x 22.0mm x 10.5mm	20.14mm x 12.52mm x 9.5mm	20.14mm x 12.52mm x 9.5mm	20.14mm x 12.52mm x 9.5mm	20.14mm x 12.52mm x 9.5mm	20.14mm x 12.52mm x 9.5mm	25.4mm x 22.0mm x 10.5mm	20.14mm x 12.52mm x 9.5mm
Maximum supply voltage	3.45 V	3.45 V	5.2 V	5.2 V	5.2 V	3.45 V	5.2 V	3.45 V
Minimum supply voltage	3.15 V	3.15 V	4.8 V	4.8 V	4.8 V	3.15 V	4.8 V	3.15 V
Nominal supply voltage	3.3 V	3.3 V	5 V	5 V	5 V	3.3 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Preheating power	0.99 W	0.99 W	1.5 W	1.5 W	1.5 W	0.99 W	1.5 W	0.99 W
Maximum warm-up time	2 Minute	2 Minute	1 Minute	1 Minute	1 Minute	2 Minute	1 Minute	2 Minute
Maker	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	-	-
package instruction	SMD, 5 PIN	SMD-14/4	SMD-14/4	-	SMD-14/4	-	SMD, 5 PIN	-
Maximum control voltage	-	3.3 V	5 V	5 V	5 V	3.3 V	-	3.3 V
Base Number Matches	-	1	1	1	1	1	-	-
