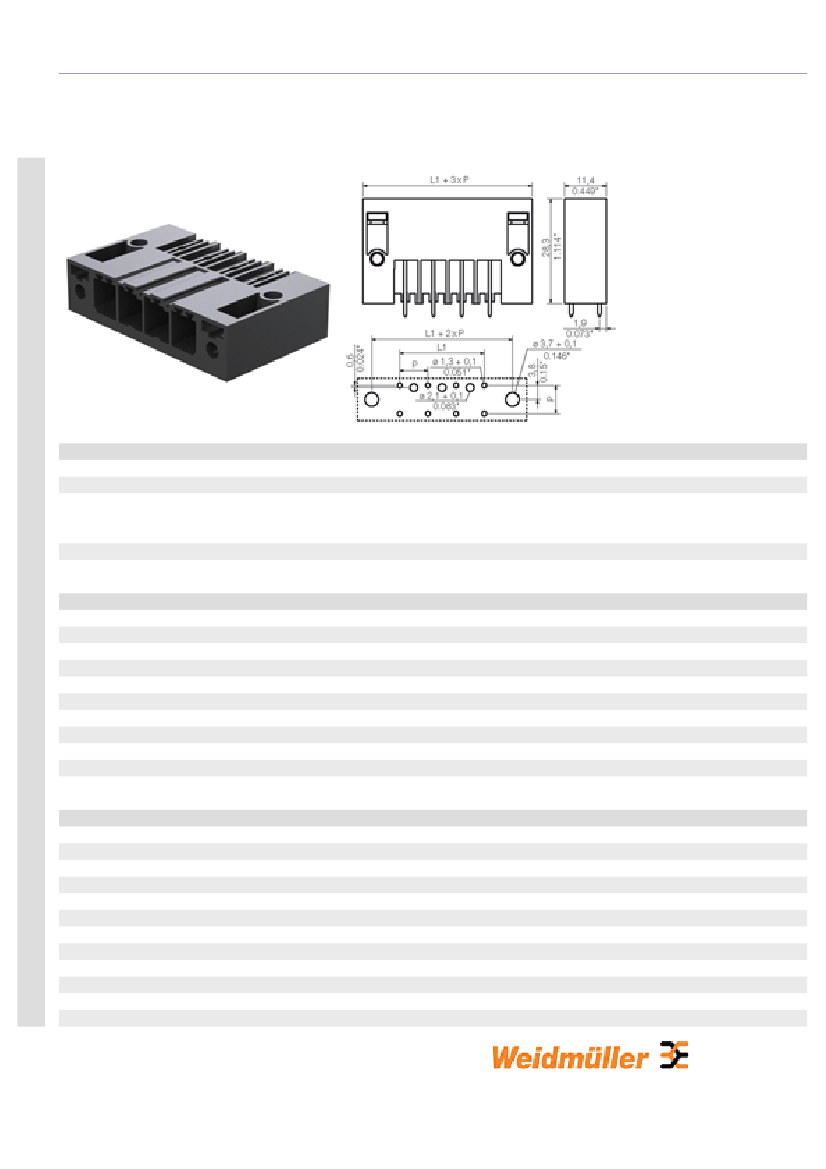

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62HP 180 | SV 7.62HP 180SFX SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
1931180000
SV 7.62HP/05/180SFX SW
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 7.62 mm, No. of poles: 5, 180°,
Box
4032248581207
50 pc(s).
Soldered connection
180°
7.62 mm
0.3 inch
5
3.5 mm
1.3 mm
+ 0.1 mm
30.48 mm
1.2 inch
1,000 MΩ
PA GF
black
Similar to RAL 9011
I
V-0
>= 500
Copper alloy
tinned
-25 °C
125 °C
-25 °C
55 °C
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62HP 180 | SV 7.62HP 180SFX SN
Material data
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
eClass 5.1
41 A
41 A
41 A
38 A
630 V
6 kV
630 V
6 kV
1,000 V
6 kV
300 V
35 A
600 V
5A
300 V
35 A
600 V
5A
SV.LIB
27-26-07-04
Similar products
Order No.
1931150000
1931160000
1931170000
1931190000
Part designation
SV 7.62HP/02/180SFX SW
SV 7.62HP/03/180SFX SW
SV 7.62HP/04/180SFX SW
SV 7.62HP/06/180SFX SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 6, 180°, Box
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62HP 180 | SV 7.62HP 180SFX SN
1931200000
1931210000
1931220000
1931230000
1931240000
1931250000
SV 7.62HP/07/180SFX SW
SV 7.62HP/08/180SFX SW
SV 7.62HP/09/180SFX SW
SV 7.62HP/10/180SFX SW
SV 7.62HP/11/180SFX SW
SV 7.62HP/12/180SFX SW
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 12, 180°, Box
-3-
