Part Number

Search

CD74LCX16245SM96

Description
Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48,
Categorylogic    logic
File Size96KB,5 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric Compare View All

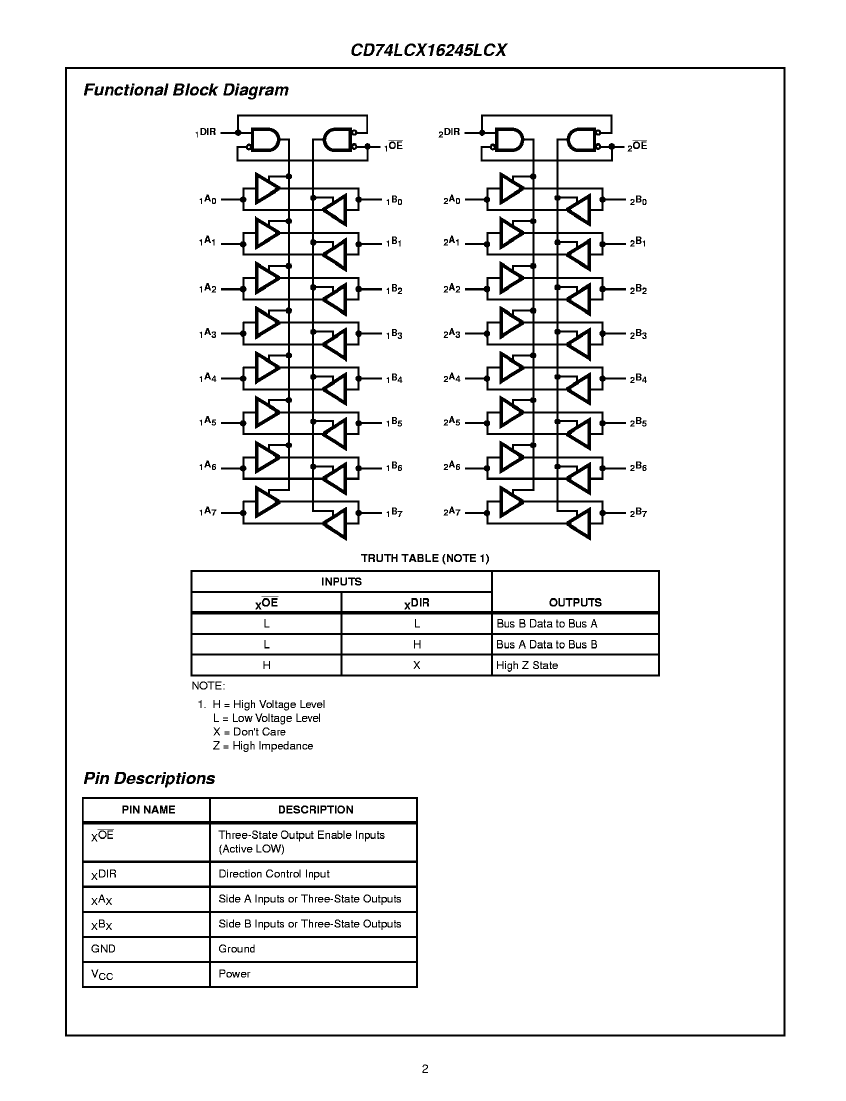

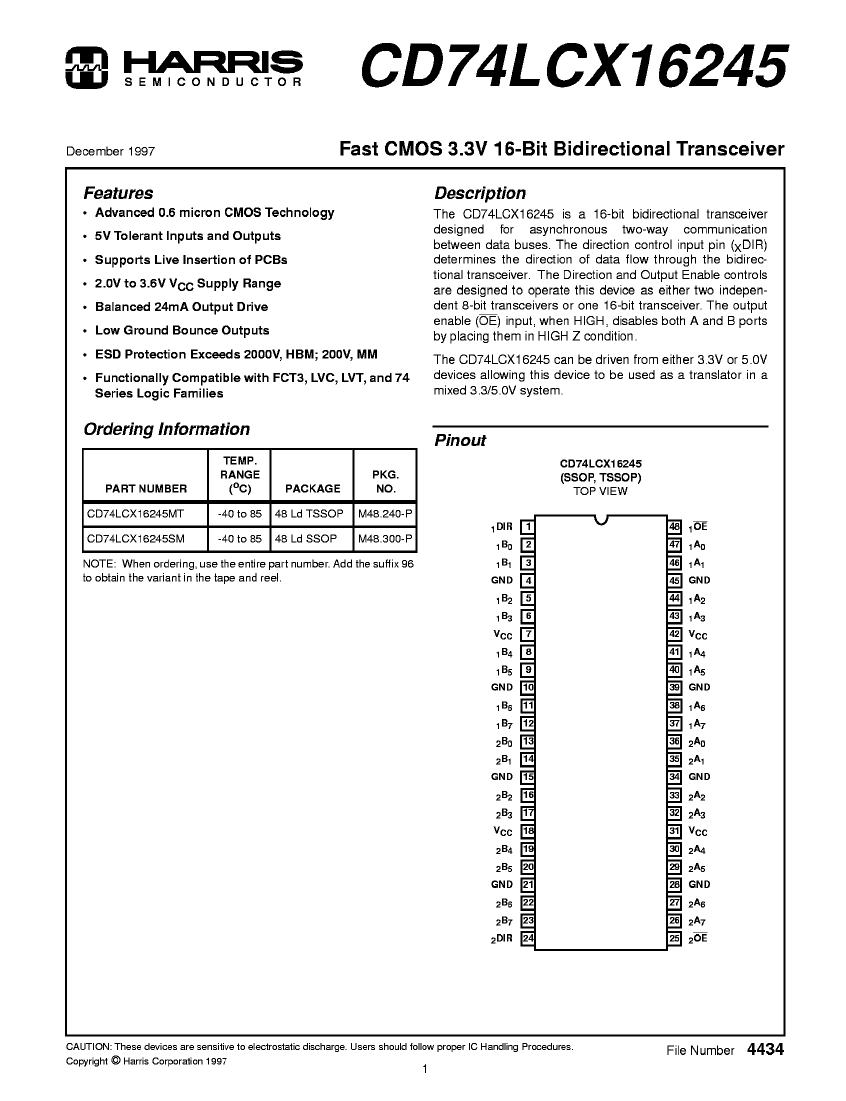

CD74LCX16245SM96 Overview

Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48,

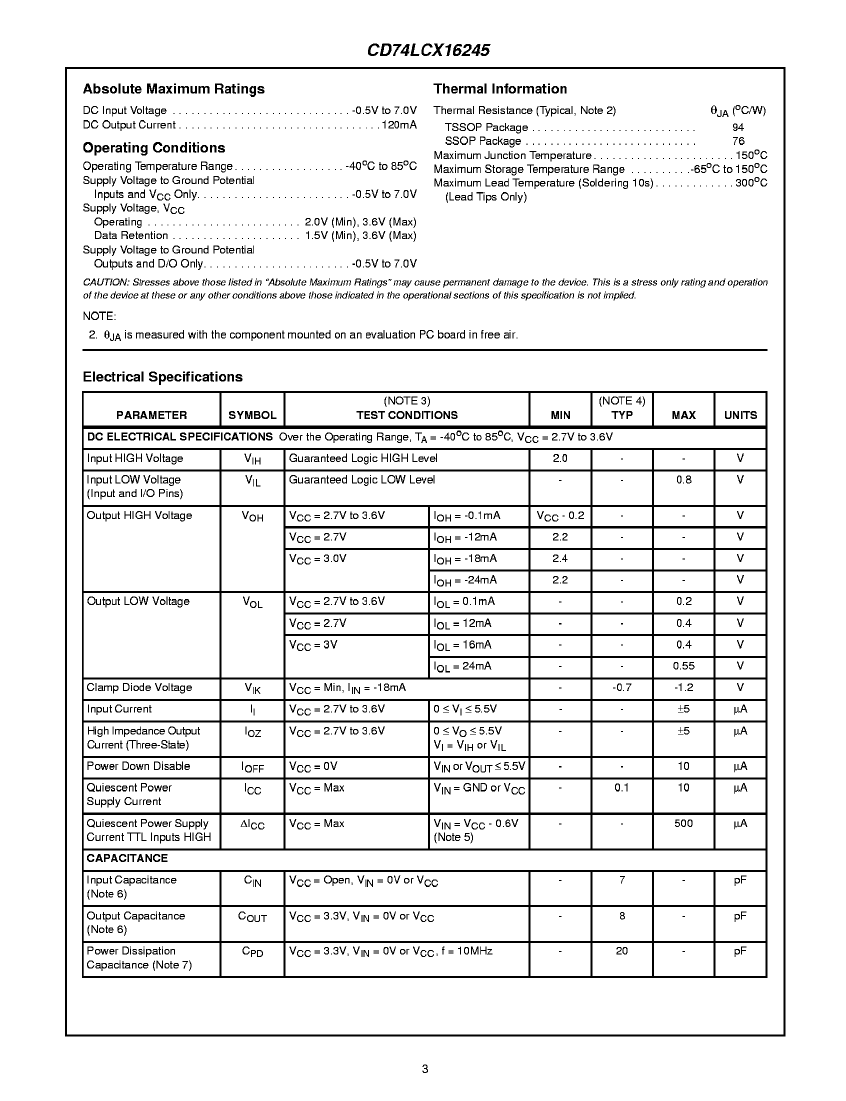

CD74LCX16245SM96 Parametric

Parameter NameAttribute value
MakerHarris
package instruction,
Reach Compliance Codeunknow
Other featuresWITH DIRECTION CONTROL
seriesLVC/LCX/Z
JESD-30 codeR-PDSO-G48
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS TRANSCEIVER
Number of digits8
Number of functions2
Number of ports2
Number of terminals48
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE

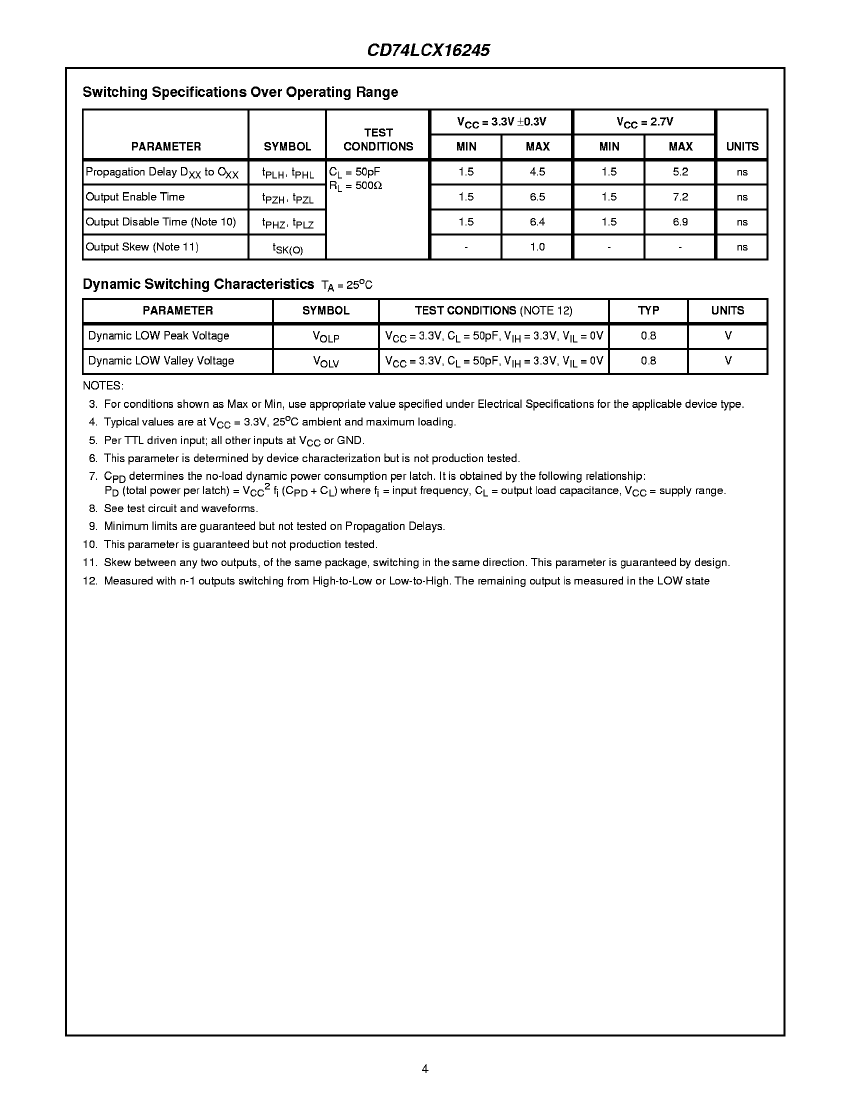

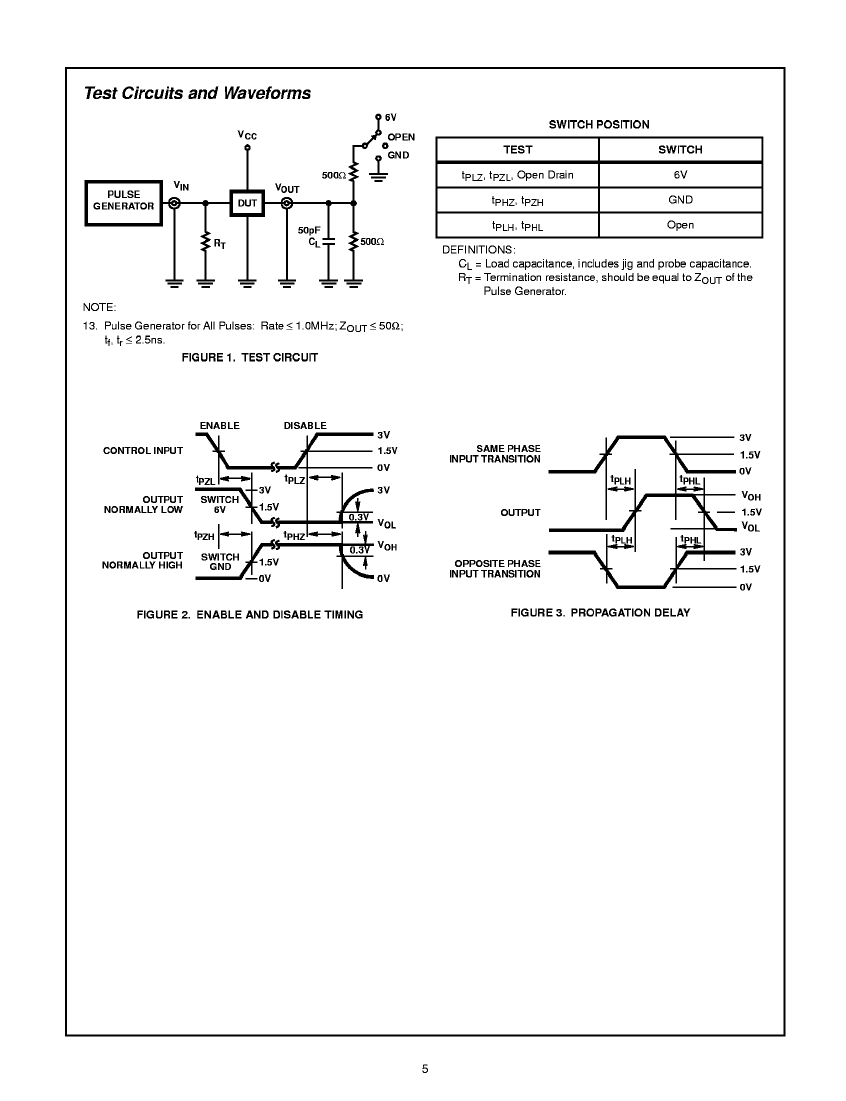

propagation delay (tpd)5.2 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal locationDUAL

CD74LCX16245SM96 Related Products

CD74LCX16245SM96 CD74LCX16245MT CD74LCX16245SM
Description Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48,
Maker Harris Harris Harris
Reach Compliance Code unknow unknown unknown
Other features WITH DIRECTION CONTROL WITH DIRECTION CONTROL WITH DIRECTION CONTROL
series LVC/LCX/Z LVC/LCX/Z LVC/LCX/Z
JESD-30 code R-PDSO-G48 R-PDSO-G48 R-PDSO-G48
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type BUS TRANSCEIVER BUS TRANSCEIVER BUS TRANSCEIVER
Number of digits 8 8 8
Number of functions 2 2 2
Number of ports 2 2 2
Number of terminals 48 48 48
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
propagation delay (tpd) 5.2 ns 5.2 ns 5.2 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 3.6 V 3.6 V 3.6 V
Minimum supply voltage (Vsup) 2 V 2 V 2 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL
