M802-2001200 datasheet, PDF - EEWORLD Datasheet

M802-2001200: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.86N, Solder Terminal, Surface Mount-right Angle; CategoryMechanical and electronic products switch; File Size119KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

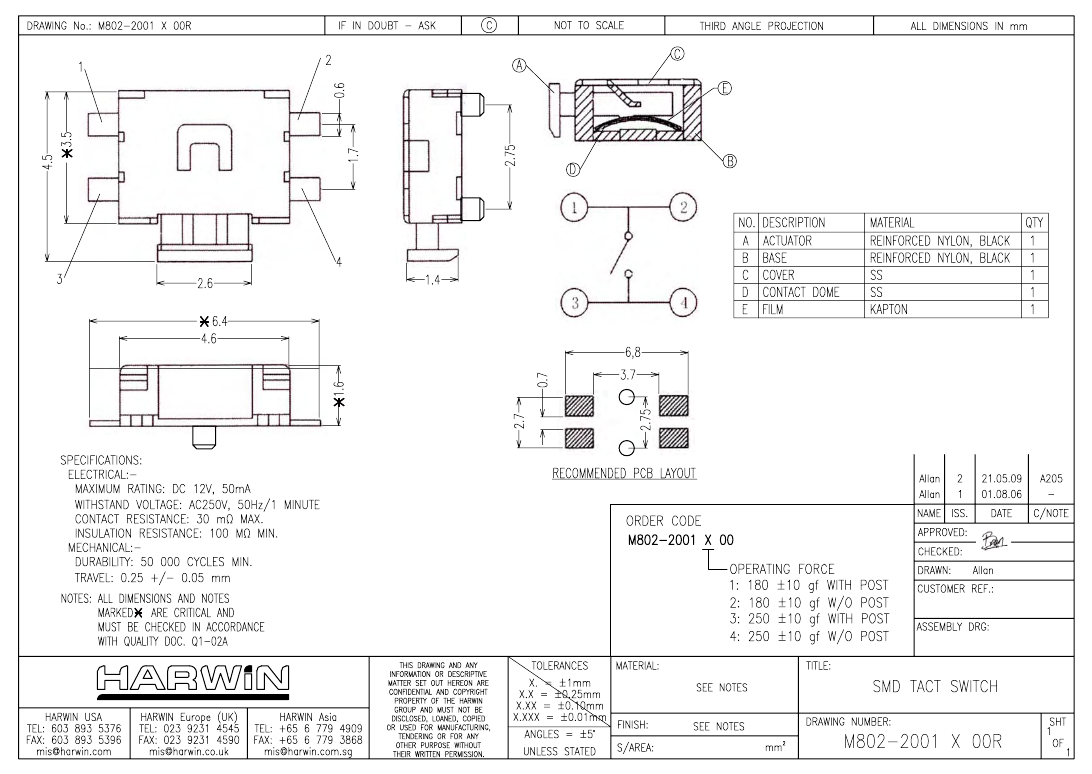

M802-2001200 Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.86N, Solder Terminal, Surface Mount-right Angle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.039 inch
Actuator material	NYLON
Actuator stroke	0.254 mm
Actuator type	PUSHBUTTON
Other features	ROHS COMPLIANT
body width	3.5 mm
Body color	BLACK
body height	1.6 mm
Body length or diameter	4.6 mm
center contact material	STAINLESS STEEL
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Contact resistance	0.03 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	50000 Cycle(s)
End contact material	STAINLESS STEEL
Shell material	STAINLESS STEEL
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	M802-2001
Installation features	SURFACE MOUNT-RIGHT ANGLE
Number of switches	1
Maximum operating force	1.86 N
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

	M802-2001200	M802-2001100
Description	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.86N, Solder Terminal, Surface Mount-right Angle	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.86N, Solder Terminal, Surface Mount-right Angle
Is it Rohs certified?	conform to	conform to
Maker	Harwin	Harwin
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Actuator color	BLACK	BLACK
Actuator length	0.039 inch	0.039 inch
Actuator material	NYLON	NYLON
Actuator stroke	0.254 mm	0.254 mm
Actuator type	PUSHBUTTON	PUSHBUTTON
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	3.5 mm	3.5 mm
Body color	BLACK	BLACK
body height	1.6 mm	1.6 mm
Body length or diameter	4.6 mm	4.6 mm
center contact material	STAINLESS STEEL	STAINLESS STEEL
Circuit configuration	1X1	1X1
Maximum contact current (DC)	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC	.05A@12VDC
Contact resistance	0.03 mΩ	0.03 mΩ
Maximum contact voltage (DC)	12 V	12 V
Dielectric withstand voltage	250VAC V	250VAC V
Electrical life	50000 Cycle(s)	50000 Cycle(s)
End contact material	STAINLESS STEEL	STAINLESS STEEL
Shell material	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON
Manufacturer's serial number	M802-2001	M802-2001
Installation features	SURFACE MOUNT-RIGHT ANGLE	SURFACE MOUNT-RIGHT ANGLE
Number of switches	1	1
Maximum operating force	1.86 N	1.86 N
surface mount	NO	NO
Switch action	MOMENTARY-TACTILE	MOMENTARY-TACTILE
switch function	SPST	SPST
Switch type	KEYPAD SWITCH	KEYPAD SWITCH
Termination type	SOLDER	SOLDER
