0.5mm Pitch SMT Board to Board Connector
DF16 Series
Correspond to Automatic Mounting
The vacuum pick-up area is prepared for automatic
mounting machine.
sFeatures

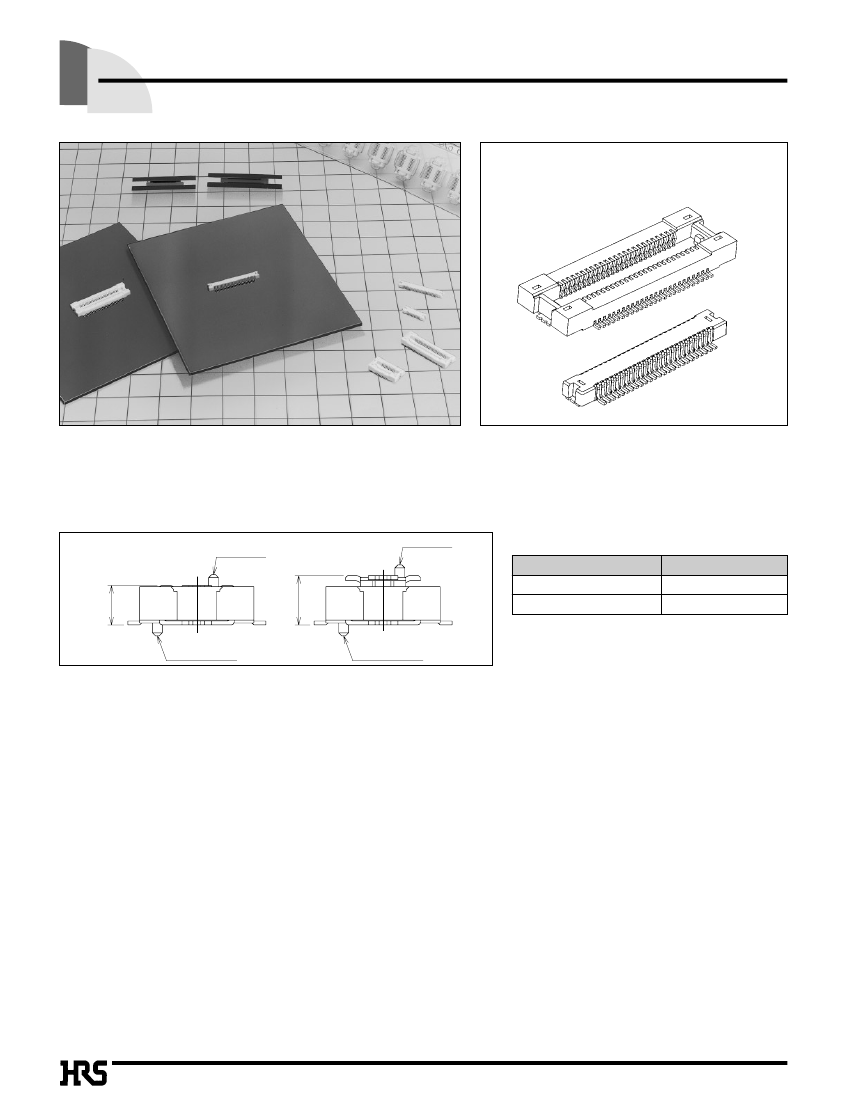

1. Miniaturizing and Slimming
In addition to 0.5mm pitch miniaturization, board to stacking height of 2mm and 2.5mm are prrovided.
Header
Header
Receptacle commonly uses DF16#-*DS-0.5V.
Header Product Name
Stacking Height
2.0mm
2.5mm
2±0.15
2.5±0.15
DF16#(2.0)-*DP-0.5V
DF16#(2.5)-*DP-0.5V
Receptacle
Receptacle
Note1: The stacking height doesn't include the solder paste thickness.
2. High Contact Reliability
The bellows female contact has a sufficient spring characteristic despite the low profile, and achieves high contact reliability.
3. Click Sensitivity in Mating
The click feeling is considered to facilitate insertion check when the connector is mated.
4. Metal Fitting Available
The metal fitting to prevent the solder peel is provided, considering the mounting on FPC.
5. Corresponding to Automatic Mounting
The connector has the vacuum pick-up area, and enables the automatic mounting with the embossed tape packaging.
Connector specification with no boss and no fitting is also.
sApplications
Mobile phone, LCD(Liquid Crystal Display), and so on
A308
sProduct
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range
Condition
100V DC
150V AC/1 minute
100mA
: 40
to
70% (Note 2)
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
500M
ohms
min
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max.Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
Contact resistance: 50m
ohms
max.:Insulation resistance: 500M
ohms
min. (-55ç: 30 minutes 5
to
35ç: 10 minutes
(-85ç:
30 minutes 5
to
35ç: 10 minutes) 5 cycles
7. Durability (Mating/un-mating) Contact resistance: 50m
ohms
8. Resistance to Soldering heat
50cycle
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide resin
Phosphor copper
Brass
Polyamide resin
Phosphor copper
Brass
Treatment
White Beige (Natural)
Gold plated
Tin-lead plated
White Beige (Natural)
Gold plated
Tin-lead plated
UL Standard
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
sOrdering
Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog page
A310~A315.
qReceptacle/Header
DF16
q
q
Series Name
w
Type
Fitting
Blank
A
B
C
K
Boss
K
K
: DF16
#
(
**
) -
*
DS - 0.5 V (
**
)
w
e
r
t
y
u
i
e
Product height
Receptacle
Header
: None
: 2.0, 2.5
V
y
Contact Pitch
: 0.5mm
u
Contact Type
: Straight SMT
r
Number of Contacts
(Note1)
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
∞
K
14, 16, 20, 30, 34, 40, 50, 60, 80
i
Pakaging Type
(81) : Gold plating, embossed tape packaging
(80) : Gold plating, tube packaging
∞
∞
∞
Note1: For the 14, 16 and 80 contacts connector, the stacking height 2.0mm product only is available.
For the 34 contacts connectors, the stacking height of 2.5mm product only is available.
A309

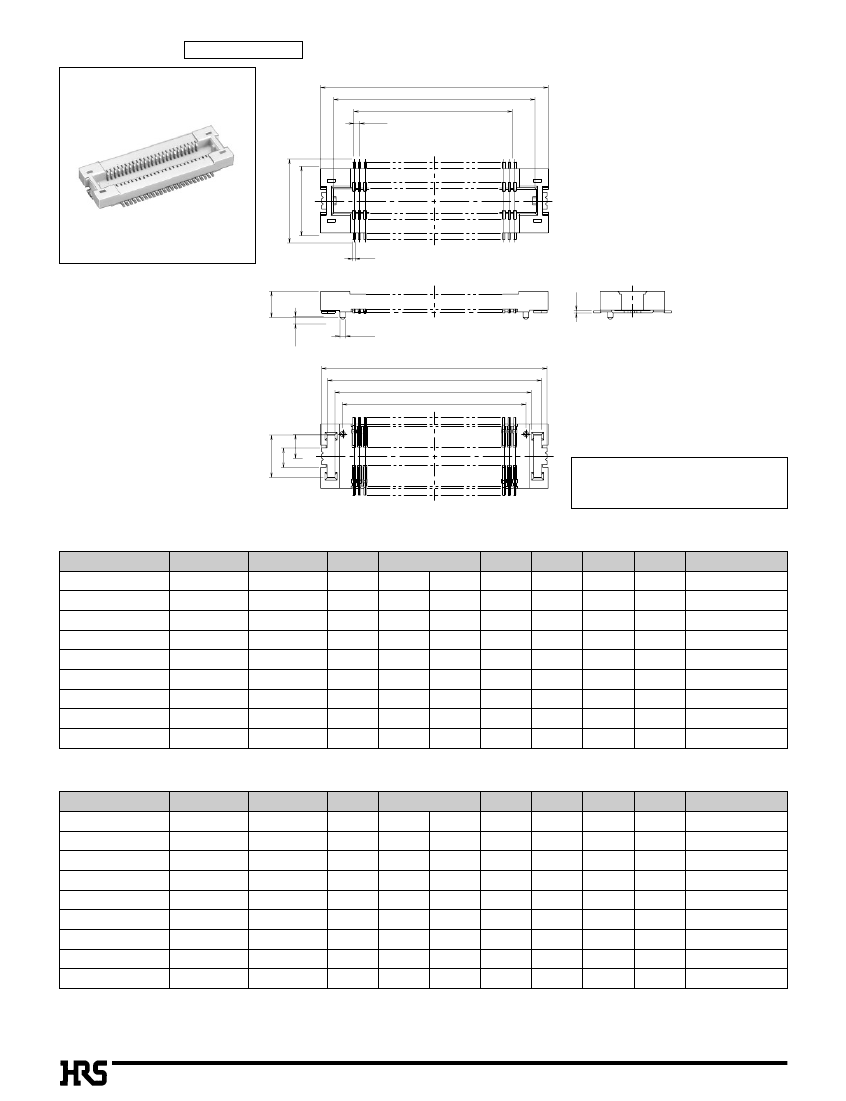

sReceptacle
With metal fitting
A
B
C
P=0.5
5.8
7
0.2
1.95
0.65
Ø0.5
D
E
F
G
3.8
1.5
2
0.2
[Specific No.]
–
* *
,
(*
*)
(80) :Gold plated, tube packaging
(81) :Gold
plated,
embossed tape
packaging
qReceptacle
with metal fitting, with boss
Part Number
CL No.
Number of Contacts
14
16
20
30
34
40
50
60
80
A
19.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
D
08.8
09.3
10.3
12.8
13.8
15.3
17.8
20.3
25.3
E
07.8
08.3
09.3
11.8
12.8
14.3
16.8
19.3
24.3
F
06.4
06.9
07.9
10.4
11.4
12.9
15.4
17.9
22.9
G
05.6
06.1
06.5
09.0
10.0
11.5
14.0
16.5
21.5
DF16-14DS-0.5V(
**
) 679-0010-1-**
DF16-16DS-0.5V(
**
) 679-0001-0-**
DF16-20DS-0.5V(
**
) 679-0002-3-**
DF16-30DS-0.5V(
**
) 679-0003-6-**
DF16-34DS-0.5V(
**
) 679-0009-2-**
DF16-40DS-0.5V(
**
) 679-0004-9-**
DF16-50DS-0.5V(
**
) 679-0005-1-**
DF16-60DS-0.5V(
**
) 679-0006-4-**
DF16-80DS-0.5V(
**
) 679-0008-0-**
Unit: mm
Tube Packaging Quantity( pcs.)
54 pcs.
51 pcs.
46 pcs.
37 pcs.
35 pcs.
31 pcs.
27 pcs.
23 pcs.
19 pcs.
qReceptacle
with metal fitting, without boss
Part Number
CL No.
Number of Contacts
14
16
20
30
34
40
50
60
80
A
09.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
D
08.8
09.3
10.3
12.8
13.8
15.3
17.8
20.3
25.3
E
07.8
08.3
09.3
11.8
12.8
14.3
16.8
19.3
24.3
F
06.4
06.9
07.9
10.4
11.4
12.9
15.4
17.9
22.9
G
–––
–––
–––
–––
–––
–––
–––
–––
–––
DF16B-14DS-0.5V(
**
) 679-0030-9-**
DF16B-16DS-0.5V(
**
) 679-0021-8-**
DF16B-20DS-0.5V(
**
) 679-0022-0-**
DF16B-30DS-0.5V(
**
) 679-0023-3-**
DF16B-34DS-0.5V(
**
) 679-0029-0-**
DF16B-40DS-0.5V(
**
) 679-0024-6-**
DF16B-50DS-0.5V(
**
) 679-0025-9-**
DF16B-60DS-0.5V(
**
) 679-0026-1-**
DF16B-80DS-0.5V(
**
) 679-0028-7-**
Unit: mm
Tube Packaging Quantity( pcs.)
54 pcs.
51 pcs.
46 pcs.
37 pcs.
35 pcs.
31 pcs.
27 pcs.
23 pcs.
19 pcs.
A310

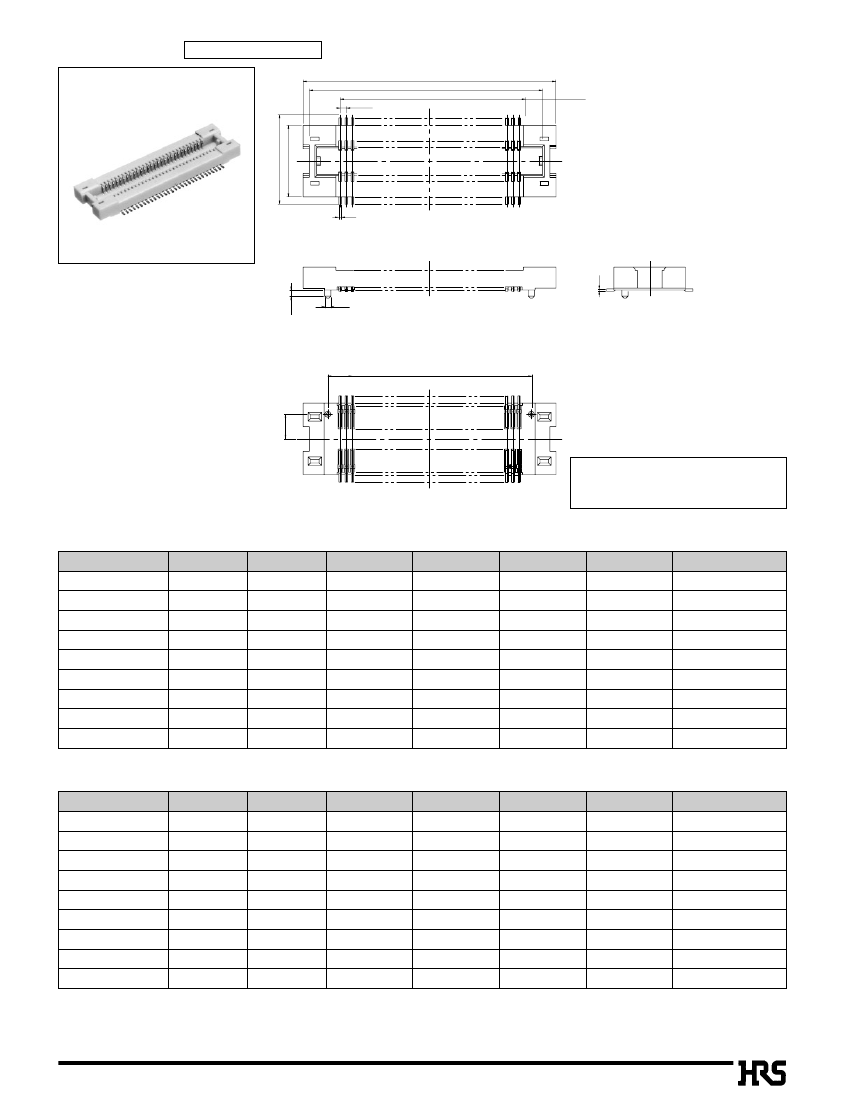

sReceptacle
Without metal fitting
Ａ
Ｂ
Ｃ
P=0.5
5.8
7
0.2
0.65
Ø0.5
Ｇ
2
[Specific No.]
–
* *
,
(*
*)
(80) :Gold plated, tube packaging
(81) :Gold
plated,
embossed tape
packaging
qReceptacle
without metal fitting, with boss
Part Number
CL No.
Number of Contacts
14
16
20
30
34
40
50
60
80
A
09.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
G
05.6
06.1
06.5
09.0
10.0
11.5
14.0
16.5
21.5
DF16A-14DS-0.5V(
**
) 679-0020-5-**
DF16A-16DS-0.5V(
**
) 679-0011-4-**
DF16A-20DS-0.5V(
**
) 679-0012-7-**
DF16A-30DS-0.5V(
**
) 679-0013-0-**
DF16A-34DS-0.5V(
**
) 679-0019-6-**
DF16A-40DS-0.5V(
**
) 679-0014-2-**
DF16A-50DS-0.5V(
**
) 679-0015-5-**
DF16A-60DS-0.5V(
**
) 679-0016-8-**
DF16A-80DS-0.5V(
**
) 679-0018-3-**
0.2
Unit: mm
Tube Packaging Quantity( pcs.)
54 pcs.
51 pcs.
46 pcs.
37 pcs.
35 pcs.
31 pcs.
27 pcs.
23 pcs.
19 pcs.
qReceptacle
without metal fitting, without boss
Part Number
CL No.
Number of Contacts
14
16
20
30
34
40
50
60
80
A
09.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
G
–––
–––
–––
–––
–––
–––
–––
–––
–––
DF16C-14DS-0.5V(
**
) 679-0040-2-**
DF16C-16DS-0.5V(
**
) 679-0031-1-**
DF16C-20DS-0.5V(
**
) 679-0032-4-**
DF16C-30DS-0.5V(
**
) 679-0033-7-**
DF16C-34DS-0.5V(
**
) 679-0039-3-**
DF16C-40DS-0.5V(
**
) 679-0034-0-**
DF16C-50DS-0.5V(
**
) 679-0035-2-**
DF16C-60DS-0.5V(
**
) 679-0036-5-**
DF16C-80DS-0.5V(
**
) 679-0038-0-**
Unit: mm
Tube Packaging Quantity( pcs.)
54 pcs.
51 pcs.
46 pcs.
37 pcs.
35 pcs.
31 pcs.
27 pcs.
23 pcs.
19 pcs.
A311

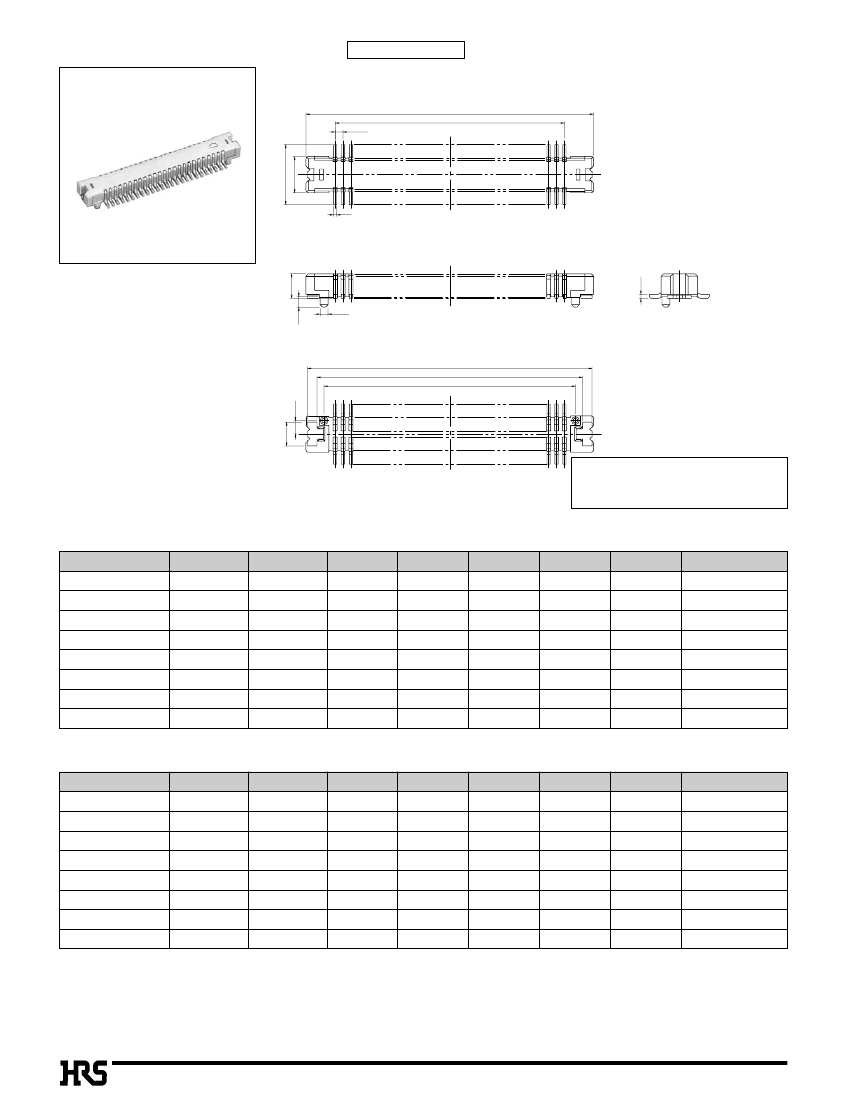

sBoard
to Board 2mm Header
With metal fitting
Ａ
Ｂ
Ｐ＝0.5
3.8
2.3
0.2
1.55
0.65
Ø0.5
Ｃ
Ｄ
Ｅ
1.5
0.85
[Specific No.]
–
* *
,
(*
*)
(80) :Gold plated, tube packaging
(81) :Gold
plated,
embossed tape
packaging
qBoard
to Board 2mm Header with metal fitting, with boss
Part Number
CL No.
Number of Contacts
14
16
20
30
40
50
60
80
A
06.7
07.2
08.2
10.7
13.2
15.7
18.2
23.2
B
03.0
03.5
04.5
07.0
09.5
12.0
14.5
19.5
C
06.5
07.0
08.0
10.5
13.0
15.5
18.0
23.0
D
05.3
05.8
06.8
09.3
11.8
14.3
16.8
21.8
E
04.4
04.9
05.9
08.4
10.9
13.4
15.9
20.9
DF16(2.0)-14DP-0.5V(
**
) 679-0049-7-**
DF16(2.0)-16DP-0.5V(
**
) 679-0041-5-**
DF16(2.0)-20DP-0.5V(
**
) 679-0042-8-**
DF16(2.0)-30DP-0.5V(
**
) 679-0043-0-**
DF16(2.0)-40DP-0.5V(
**
) 679-0044-3-**
DF16(2.0)-50DP-0.5V(
**
) 679-0045-6-**
DF16(2.0)-60DP-0.5V(
**
) 679-0046-9-**
DF16(2.0)-80DP-0.5V(
**
) 679-0048-4-**
0.25
Unit: mm
Tube Packaging Quantity( pcs.)
73 pcs.
68 pcs.
59 pcs.
45 pcs.
37 pcs.
31 pcs.
26 pcs.
21 pcs.
qBoard
to Board 2mm Header with metal fitting, without boss
Part Number
CL No.
Number of Contacts
14
16
20
30
40
50
60
80
A
06.7
07.2
08.2
10.7
13.2
15.7
18.2
23.2
B
03.0
03.5
04.5
07.0
09.5
12.0
14.5
19.5
C
06.5
07.0
08.0
10.5
13.0
15.5
18.0
23.0
D
05.3
05.8
06.8
09.3
11.8
14.3
16.8
21.8
E
–––
–––
–––
–––
–––
–––
–––
–––
DF16B(2.0)-14DP-0.5V(
**
) 679-0069-4-**
DF16B(2.0)-16DP-0.5V(
**
) 679-0061-2-**
DF16B(2.0)-20DP-0.5V(
**
) 679-0062-5-**
DF16B(2.0)-30DP-0.5V(
**
) 679-0063-8-**
DF16B(2.0)-40DP-0.5V(
**
) 679-0064-0-**
DF16B(2.0)-50DP-0.5V(
**
) 679-0065-3-**
DF16B(2.0)-60DP-0.5V(
**
) 679-0066-6-**
DF16B(2.0)-80DP-0.5V(
**
) 679-0068-1-**
Unit: mm
Tube Packaging Quantity( pcs.)
73 pcs.
68 pcs.
59 pcs.
45 pcs.
37 pcs.
31 pcs.
26 pcs.
21 pcs.
A312
