DF20-40DP-1V(01) datasheet, PDF

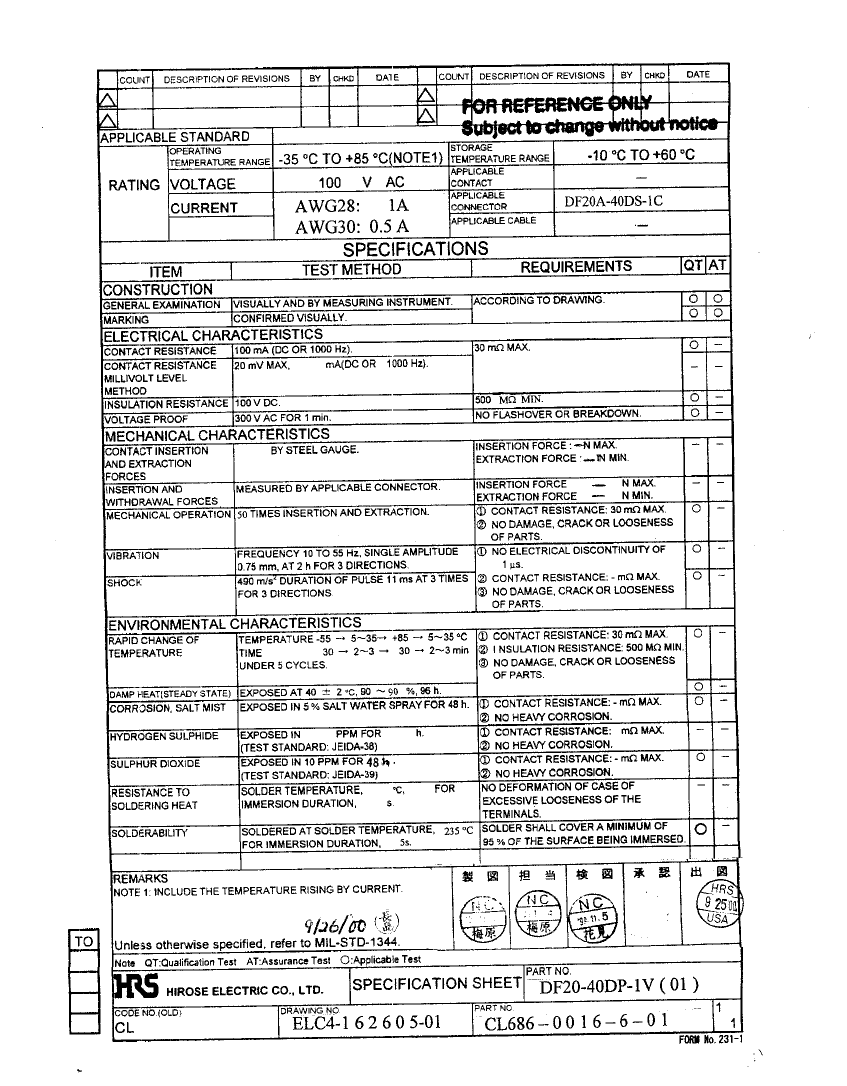

DF20-40DP-1V(01): DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size2MB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

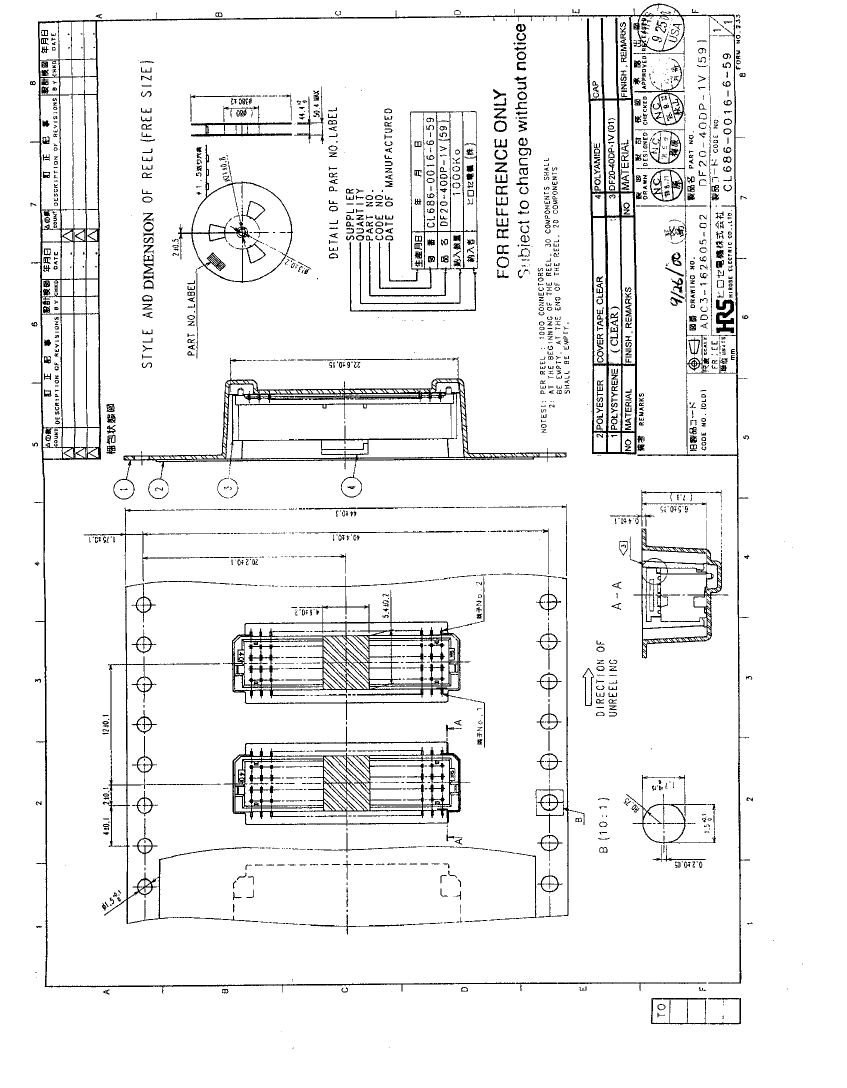

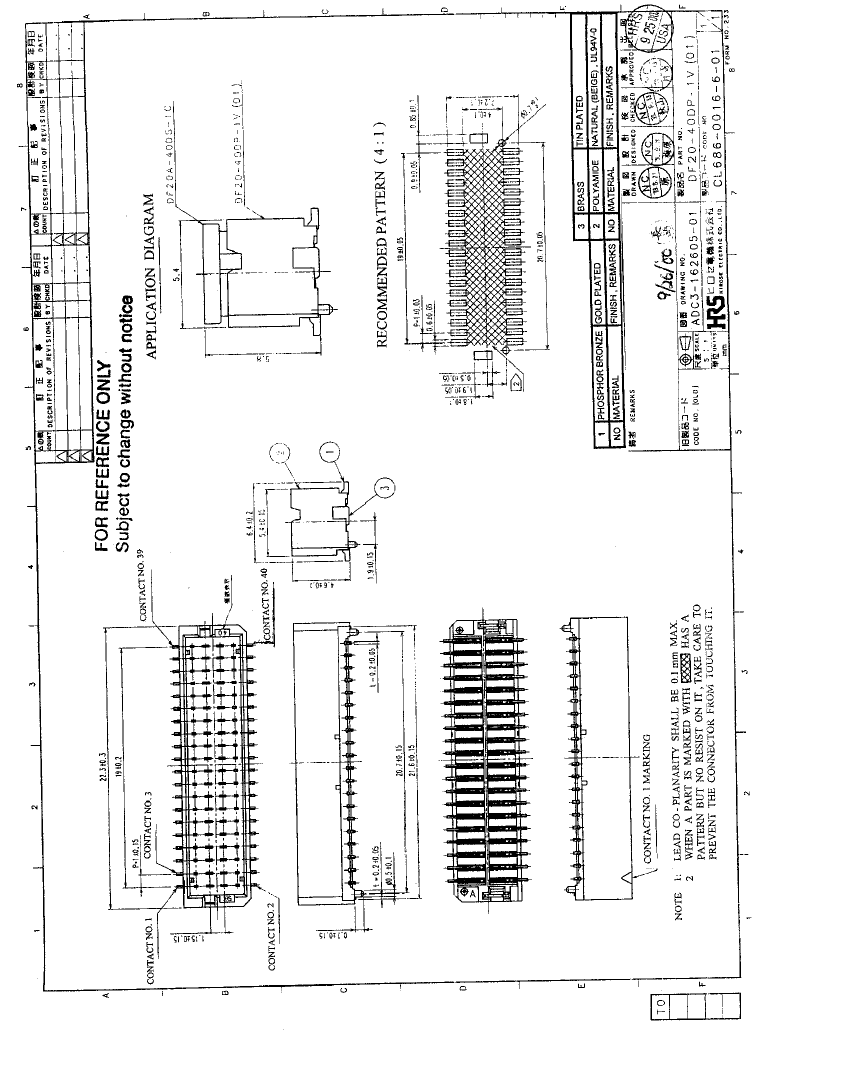

DF20-40DP-1V(01) Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknow
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DF20
Plug information	DF20A-40DS-1C
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
